help identifying possible setup problem
#1
help identifying possible setup problem

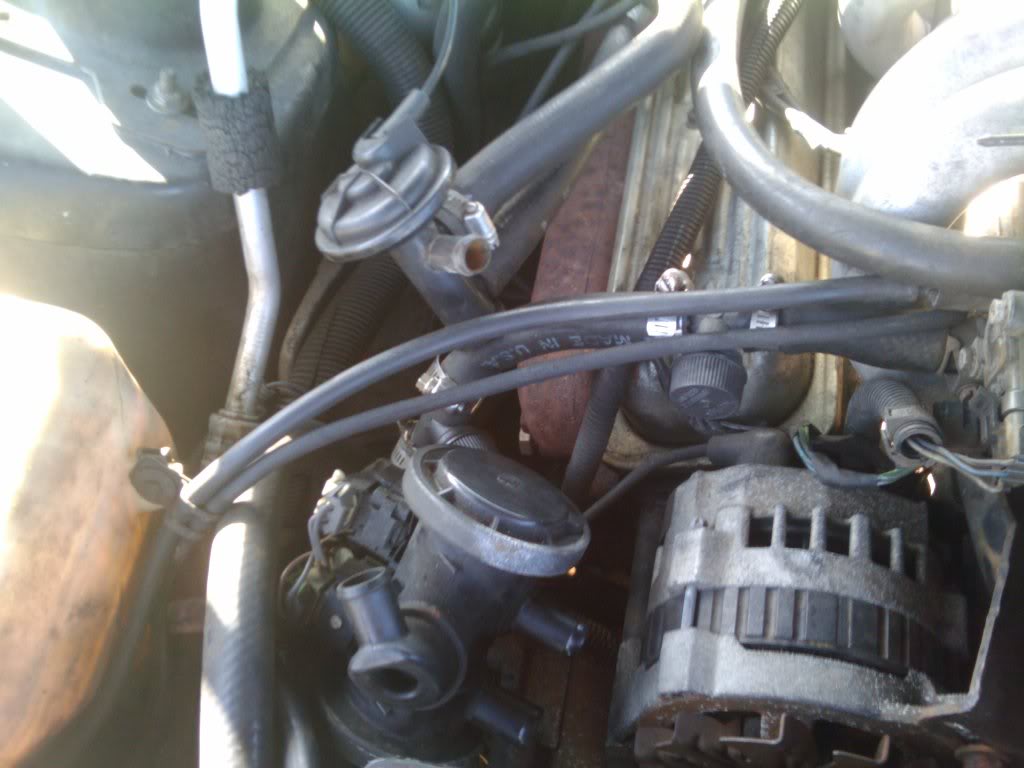

I just purchased my first 3rd gen 87 trans am gta for 1000 will post pics soon. My question id my engine bay seems to have some things setup different from what I've seen. can anyone explain what is going on there?. Ps car needs new battery and fuel pump, it runs with gas poored thru throttlle body.
Also should there be a belt attached here?
Also should there be a belt attached here?
#2
Moderator
Join Date: Jan 2000
Location: Mercedes Norte, Heredia, Costa Rica
Posts: 20,981
Likes: 0
Received 9 Likes
on
8 Posts
Car: 1984 Z28 Hardtop
Engine: 383 Carb
Transmission: 4L60
Axle/Gears: 3.54 Dana 44
Re: help identifying possible setup problem
The smog pump probably packed up so the A.I.R. system was removed and the diverter valve has been left hanging.
#4
Moderator
Join Date: Jan 2000
Location: Mercedes Norte, Heredia, Costa Rica
Posts: 20,981
Likes: 0
Received 9 Likes
on
8 Posts
Car: 1984 Z28 Hardtop
Engine: 383 Carb
Transmission: 4L60
Axle/Gears: 3.54 Dana 44
Re: help identifying possible setup problem
No, A.I.R. is an emissions system, nothing to do with air conditioning.
#5
Re: help identifying possible setup problem
Ohhh I see well I'm in florida so emisions isn't a problem for me here. Could that being disconected hurt the performance of the car? Or is it fine being left as it is.
#6
Moderator
Join Date: Jan 2000
Location: Mercedes Norte, Heredia, Costa Rica
Posts: 20,981
Likes: 0
Received 9 Likes
on
8 Posts
Car: 1984 Z28 Hardtop
Engine: 383 Carb
Transmission: 4L60
Axle/Gears: 3.54 Dana 44
Re: help identifying possible setup problem
Performance-wise, you'd never know the difference if it was working or not.
Trending Topics
#8
Moderator
Join Date: Jan 2000
Location: Mercedes Norte, Heredia, Costa Rica
Posts: 20,981
Likes: 0
Received 9 Likes
on
8 Posts
Car: 1984 Z28 Hardtop
Engine: 383 Carb
Transmission: 4L60
Axle/Gears: 3.54 Dana 44
Re: help identifying possible setup problem
That's the A.I.R. pump that somebody's disconnected. I bet you'll find that the pulley doesn't even turn.
#10
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,936
Likes: 0
Received 145 Likes
on
79 Posts
Car: 91 Trans Am
Engine: LSA
Transmission: T56 AWD
Axle/Gears: 8.8 4.10
Re: help identifying possible setup problem
With the current setup, if you ever turned the heater on, coolant would vomit all over your valve cover. Its open port needs to be reconnected to the hose in place of the bleeder valve which for some wierd reason is connected to the A.I.R. diverter valve
Actually, how the A.I.R. valve isnt swimming in coolant right now is beyond me since its directly connected to the TB coolant passage
Actually, how the A.I.R. valve isnt swimming in coolant right now is beyond me since its directly connected to the TB coolant passage
#11
Re: help identifying possible setup problem
Do you have a diagram on how all this should be connected to prevent that? Or could you give me a quick right up? I'm doing a trade off with a shop out here to do a commercial for them to get my fuel pump changed so I want to get thiis fixed before its towed to the shop.
#13
Re: help identifying possible setup problem
Ok. I removed what you diagramed and put the disconnected piece back where it belongs. Now I'm left with these 2 ipen tubes. The one to the left has coolent in it.
What do I do with these.
What do I do with these.
#14
Re: help identifying possible setup problem
Ok. I removed what you diagramed and put the disconnected piece back where it belongs. Now I'm left with these 2 ipen tubes. The one to the left has coolent in it.
What do I do with these.
What do I do with these.
#15
Supreme Member
Join Date: Jan 2003
Location: Houston, Texas
Posts: 2,133
Likes: 0
Received 2 Likes
on
2 Posts
Car: 88' IROCZ
Engine: 388 TPI Motown 350 Race block
Transmission: 700R4
Axle/Gears: 2.77
Re: help identifying possible setup problem
The hose on the right should be coming from the rear of that rusted up air pump. Removing the air pump will get rid of that one. The other hose on the left should be the return line from the heater to oil cooler, that hose that's next to it should be currently connected to the radiator.
#16
Re: help identifying possible setup problem
Both of those open tubes were connected to the part that had to do with air. The open tube to the left doesn't have anything to connect to to bring it to the radiator
#17
Re: help identifying possible setup problem
The thick tube that runs under the open one to the left goes to the radiator but how do I reconnect the open one for the oil cooler
#18
Re: help identifying possible setup problem
Can someone point out where that left tube is supposed to connect to the radiator? I completely removed the smog pump. I have the tube with the 2 caps that say antifreeze coolant keep tight and can't figure out where to hook it up there's no loose tubing besides the one to the left in the pic.
#19
Supreme Member
Join Date: Jan 2003
Location: Houston, Texas
Posts: 2,133
Likes: 0
Received 2 Likes
on
2 Posts
Car: 88' IROCZ
Engine: 388 TPI Motown 350 Race block
Transmission: 700R4
Axle/Gears: 2.77
Re: help identifying possible setup problem
Throttle body
Heater control valve (which you reconnected to the TB via the Bleeder Port as Pocket pointed out.)
Heater Core
Oil cooler
From the oil cooler it returns to the radiator throuch the "thick tube that runs under the open one."
The open one connects to the other heater port at the fire wall, but that port should have a hose that runs down along the frame through a short piece of metal tubing.
In other words if the 2 heater firewall ports have hoses then there should be another open hose near the frame rail that should connect to the "open one" in the picture.
Hope that helps.
I know I have a diagram somewhere, if you really need it let me know and I'll dig it up.
just follow the other hose at the firewall and you should find another open end, now you have 2 open ends just connect them together.
I would post pics of mine, but I've long since deleted, my TB coolant, and HVAC.
