timing help
i have read many articles on how to set the timing on a tpi car and every one i read is extremely confusing on 1 part because they never contain a picture of the timing marker and like most people i cant read the #'s on mine anymore .

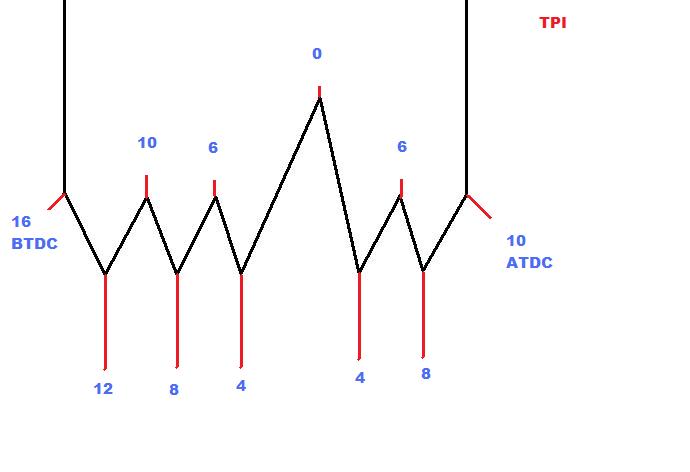

so i am asking some one that knows 110% what the markings are to take my crude drawing i made of the marker and label it with the correct #'s where they belong so i am sure once and for all . thanks a bunch , and if a mod sees this please put the pic in the tech article on the home page on how to set the timing .
so i am asking some one that knows 110% what the markings are to take my crude drawing i made of the marker and label it with the correct #'s where they belong so i am sure once and for all . thanks a bunch , and if a mod sees this please put the pic in the tech article on the home page on how to set the timing .
#3
Senior Member
Join Date: May 2008
Location: SF bay area
Posts: 722
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 Camaro iroc-z28
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: 3.42 Posi
Re: timing help
if i remember correctly 8*btdc was the mark at the end to the left, but ill see if i take a picture of mine
#5
Moderator
Join Date: Jan 2000
Location: Mercedes Norte, Heredia, Costa Rica
Posts: 20,981
Likes: 0
Received 9 Likes
on
8 Posts
Car: 1984 Z28 Hardtop
Engine: 383 Carb
Transmission: 4L60
Axle/Gears: 3.54 Dana 44
Re: timing help
From left to right:
Edge 16 degrees BTDC
Point 12 degrees BTDC
Notch 10 degrees BTDC
Point 8 degrees BTDC
Notch 6 degrees BTDC
Point 4 degrees BTDC
Notch 0 degrees TDC
Point 4 degrees ATDC
Edge 6 degrees ATDC
Edge 16 degrees BTDC
Point 12 degrees BTDC
Notch 10 degrees BTDC
Point 8 degrees BTDC
Notch 6 degrees BTDC
Point 4 degrees BTDC
Notch 0 degrees TDC
Point 4 degrees ATDC
Edge 6 degrees ATDC
