Re: BBK TPI intake setup ($399.00)
I've been doing some thinking on the shape of the TPI intake. How it makes a big U shape from the outside and across into the heads. I was wondering if the reason why the LT1 and LS1 intakes make so much power up higher than ours is because their intakes flow air from the inside of the plenum and outwards to the heads. Does that make sense?
I know its too late for this but if the runners were reversed to have 8 holes in the center and flowing down into the heads if that would work. I guess I'm describing a tunnel ram or even the Stealth Ram. But then we wouldnt have any room for the EGR under the plenum.
I know its too late for this but if the runners were reversed to have 8 holes in the center and flowing down into the heads if that would work. I guess I'm describing a tunnel ram or even the Stealth Ram. But then we wouldnt have any room for the EGR under the plenum.
#503
Supreme Member
iTrader: (3)
Joined: Sep 2003
Posts: 6,859
Likes: 14
From: Cypress, California
Car: 1989 GTA
Engine: 369 TPI
Transmission: 4L60E
Axle/Gears: 3.70 Nine Bolt
Re: BBK TPI intake setup ($399.00)
Thanks Bryan. While you are taking questions what is the inside diameter of the runners? At the head port entry does the intake manifold radius nicely into the head or is it like the stock one with no radius?
Last edited by 1989GTATransAm; 12-16-2007 at 06:30 PM.
#504
Supreme Member
iTrader: (2)
Joined: Mar 2002
Posts: 2,516
Likes: 4
From: San Antonio TX
Car: 1990 G92 IROC Z Miniram
Engine: 388cu 6.4 Liters
Transmission: G-Force T5
Axle/Gears: 3.73 Gears
Re: BBK TPI intake setup ($399.00)
In short Bryan, we hope it flows better than a Accel Super Ram. If possible, see if you can do a comparison between the two. Me personally want to get rid of my Super Ram for your BBK TPI System. I hope the BBK TPI System will flow more than 275cfm over an Extrude Honed Super Ram at 266cfm. If so, I'll be there pick it up as soon as possible.
Send me an E-mail with your Phone number so that we could sit down together and figure out the best way to make this system work. I live in Ontario California. You work about 20mins from my home.
Send me an E-mail with your Phone number so that we could sit down together and figure out the best way to make this system work. I live in Ontario California. You work about 20mins from my home.
Last edited by VincentZ28; 12-16-2007 at 07:14 PM.
#505
Re: BBK TPI intake setup ($399.00)
Price- This system is comprised of fairly simple and lightweight aluminum castings. I think the price quoted is fairly accurate and I don't know why it would change from the original projection.
Function-The stock fuel rails are retained and all of the factory emissions and EGR remain functional.
Smog/CARB/E.O#
Since all of the EGR/PCV/emissions related functions are retained, there is no reason why this unit would not pass a CARB test to acheive E.O. status. Obviously, that testing procedure takes time and the product must be produced and released before it can go through the testing so it won't have an E.O. # the day it comes out but when it does get a # all units will be covered.
Design-

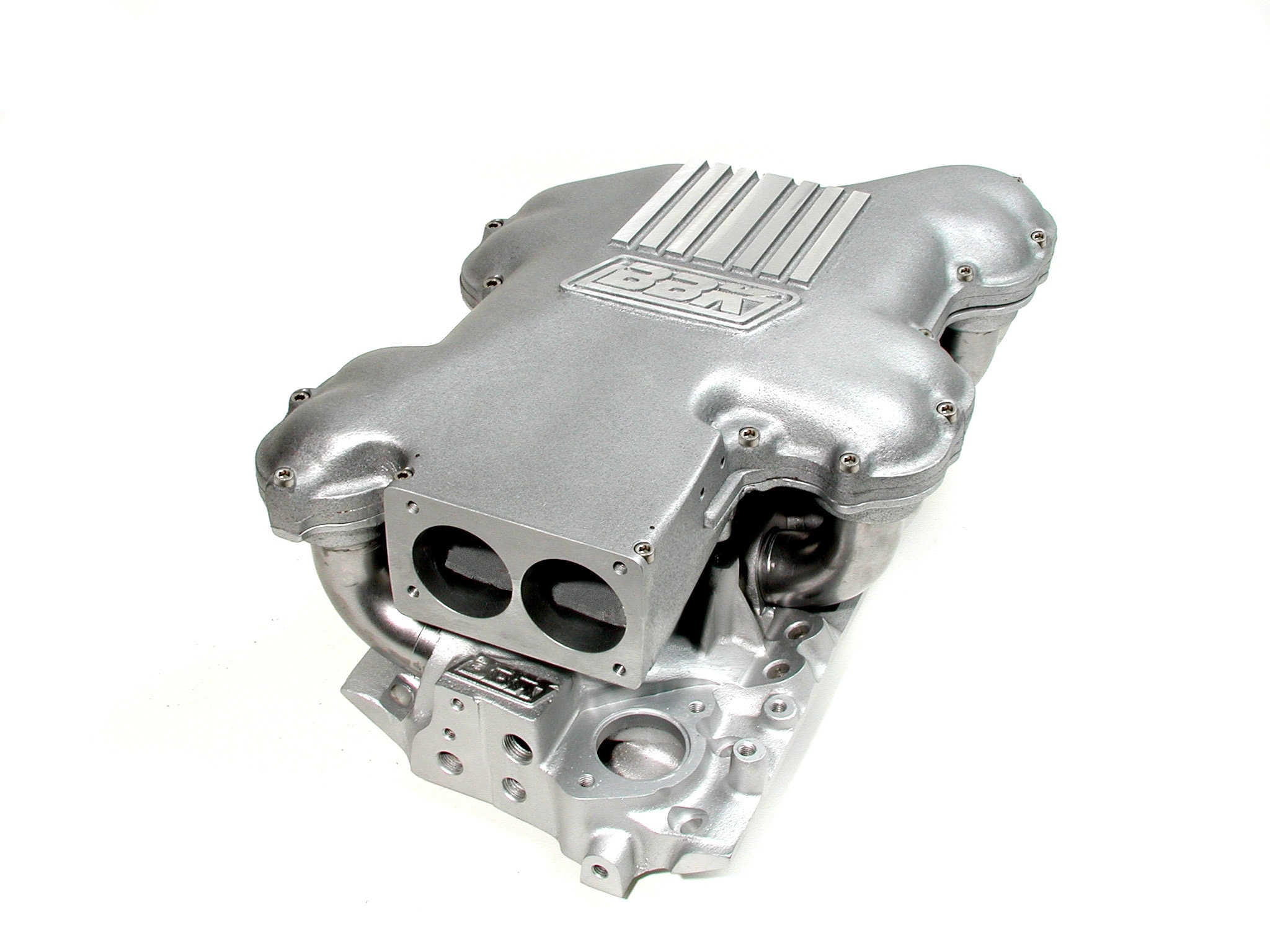

The pic I posted may leave a lot to the imagination.
The set-up consists of 3 castings
What you see (or don't see there)is;
1. A unique lower intake with our own pattern.
2. A flat base plate that sits on top of the lower (and on top of the injector rails).
3. A top casting that bolts to the baseplate.
1-3/4" tubes that connect the baseplate to the lower intake.
The baseplate has openings around the perimeter to connect to the runner tubes.
The baseplate and top cover attach with bolts around the perimeter. At this time they are going up from the bottom, but I am going to have them going down from the top because trying to get them going from the bottom sucks and requires a retarded ratcheting allen head tool which I'm sure almost nobody has.
As you can see there are 2 bolts that go down behind the throttle body to attach the upper to the baseplate.
The runner lengths are right at 14".
We are doing our best to make all bends and transitions smooth.
Comparison testing-
At this time I am working on getting the final fitment dialed in and then a dyno test at the end vs. a ported TPI intake (car came in with that).
All other comparison testing will be editorial projects for a later date.
Bryan
Function-The stock fuel rails are retained and all of the factory emissions and EGR remain functional.
Smog/CARB/E.O#
Since all of the EGR/PCV/emissions related functions are retained, there is no reason why this unit would not pass a CARB test to acheive E.O. status. Obviously, that testing procedure takes time and the product must be produced and released before it can go through the testing so it won't have an E.O. # the day it comes out but when it does get a # all units will be covered.
Design-
The pic I posted may leave a lot to the imagination.
The set-up consists of 3 castings
What you see (or don't see there)is;
1. A unique lower intake with our own pattern.
2. A flat base plate that sits on top of the lower (and on top of the injector rails).
3. A top casting that bolts to the baseplate.
1-3/4" tubes that connect the baseplate to the lower intake.
The baseplate has openings around the perimeter to connect to the runner tubes.
The baseplate and top cover attach with bolts around the perimeter. At this time they are going up from the bottom, but I am going to have them going down from the top because trying to get them going from the bottom sucks and requires a retarded ratcheting allen head tool which I'm sure almost nobody has.
As you can see there are 2 bolts that go down behind the throttle body to attach the upper to the baseplate.
The runner lengths are right at 14".
We are doing our best to make all bends and transitions smooth.
Comparison testing-
At this time I am working on getting the final fitment dialed in and then a dyno test at the end vs. a ported TPI intake (car came in with that).
All other comparison testing will be editorial projects for a later date.
Bryan
#507
Supreme Member
iTrader: (3)
Joined: Sep 2003
Posts: 6,859
Likes: 14
From: Cypress, California
Car: 1989 GTA
Engine: 369 TPI
Transmission: 4L60E
Axle/Gears: 3.70 Nine Bolt
Re: BBK TPI intake setup ($399.00)
Bryan, thanks for the reply and the new TPI product.
"The baseplate and top cover attach with bolts around the perimeter. At this time they are going up from the bottom, but I am going to have them going down from the top because trying to get them going from the bottom sucks and requires a retarded ratcheting allen head tool which I'm sure almost nobody has."
Good move.
Will be interested in the final numbers. Sounds like Vincent is wishing for his high output car be used for a test bed. Actually it would make a good test car for your intake manifold to test the limits.
"The baseplate and top cover attach with bolts around the perimeter. At this time they are going up from the bottom, but I am going to have them going down from the top because trying to get them going from the bottom sucks and requires a retarded ratcheting allen head tool which I'm sure almost nobody has."
Good move.
Will be interested in the final numbers. Sounds like Vincent is wishing for his high output car be used for a test bed. Actually it would make a good test car for your intake manifold to test the limits.
#508
TGO Supporter
Joined: Jul 2001
Posts: 4,991
Likes: 1
From: Cheyenne, Wyoming
Car: 1992 B4C 1LE
Engine: Proaction 412, Accel singleplane
Transmission: built 700R4 w/custom converter
Axle/Gears: stock w/later 4th gen torsen pos
Re: BBK TPI intake setup ($399.00)
The baseplate and top cover attach with bolts around the perimeter. At this time they are going up from the bottom, but I am going to have them going down from the top because trying to get them going from the bottom sucks and requires a retarded ratcheting allen head tool which I'm sure almost nobody has.
Having nice little cap head screws on the top showing is just fine, and might even look cool.
#509
Senior Member
iTrader: (9)
Joined: Jun 2002
Posts: 742
Likes: 0
From: La Mirada, California
Car: 1991 Camaro RS
Engine: L98 350 TPI
Transmission: 700R4
Axle/Gears: ZT LSD with 3.42 - LS1 brakes
Re: BBK TPI intake setup ($399.00)
That is a lot of very good information... THanks a bunch for the update. I cant wait until it comes out (and get CARB OE#) cuz I am thinking that I want one!!!
Thanks for keeping the interest in TPI alive!
-Tim-
Thanks for keeping the interest in TPI alive!
-Tim-
#510
Supreme Member
Joined: Dec 1999
Posts: 1,934
Likes: 1
From: Calgary
Car: 89 Formula
Engine: 350
Transmission: TH 700R4
Axle/Gears: 3.27
Re: BBK TPI intake setup ($399.00)
Thanks for the details Bryan.
2 questions if I may,
1. When you say 14" runner length.... is that total length?
This is what I have
Stock TPI manifold ...................8” ...............runners 11.25”............... cylinder head 6”.............total 25.25
2. Vortec head compatible version?
2 questions if I may,
1. When you say 14" runner length.... is that total length?
This is what I have
Stock TPI manifold ...................8” ...............runners 11.25”............... cylinder head 6”.............total 25.25
2. Vortec head compatible version?
#511
Supreme Member
iTrader: (3)
Joined: Sep 2003
Posts: 6,859
Likes: 14
From: Cypress, California
Car: 1989 GTA
Engine: 369 TPI
Transmission: 4L60E
Axle/Gears: 3.70 Nine Bolt
Re: BBK TPI intake setup ($399.00)
I believe you would have to add the head to the 14" number. There is no way Bryan would know the length of the runners in the heads as there are variations. So in your case total runner length would be 20".
Last edited by 1989GTATransAm; 12-17-2007 at 11:15 PM.
#513
Supreme Member
Joined: Dec 1999
Posts: 1,934
Likes: 1
From: Calgary
Car: 89 Formula
Engine: 350
Transmission: TH 700R4
Axle/Gears: 3.27
Re: BBK TPI intake setup ($399.00)
okay so what can I directly compare? Give me some numbers of what we know
#514
Supreme Member
iTrader: (3)
Joined: Sep 2003
Posts: 6,859
Likes: 14
From: Cypress, California
Car: 1989 GTA
Engine: 369 TPI
Transmission: 4L60E
Axle/Gears: 3.70 Nine Bolt
Re: BBK TPI intake setup ($399.00)
I think the 14" compares closely to the Accel Superram for runner length. The LS1 is somewhere around 9" with a total of 14" including the head. The stock TPI is around 26-27" with the heads included.
#515
Supreme Member
iTrader: (3)
Joined: Sep 2003
Posts: 6,859
Likes: 14
From: Cypress, California
Car: 1989 GTA
Engine: 369 TPI
Transmission: 4L60E
Axle/Gears: 3.70 Nine Bolt
Re: BBK TPI intake setup ($399.00)
Bryan, you might want to consider making the inside diameter of the runners 1.75" or so. I believe that would be a good compromise between the stock motors and the higher horsepower motors.
Personally I would like to see around 1.8" on the runner ID and then have the intake manifold taper down to the correct port size to fit a stock head. This way it would be easy for the high horsepower guys to open up the intake manifold at the head. Hey nothing but R&D.
Personally I would like to see around 1.8" on the runner ID and then have the intake manifold taper down to the correct port size to fit a stock head. This way it would be easy for the high horsepower guys to open up the intake manifold at the head. Hey nothing but R&D.
#518
Senior Member
iTrader: (2)
Joined: May 2002
Posts: 731
Likes: 0
From: Chester, VA
Car: '88 GTA
Engine: L-98
Transmission: T-56
Re: BBK TPI intake setup ($399.00)
After looking back through the thread it looks like it was built to fit under a vette hood which means that it should fit under a T/A hood. I just want to be sure that that didnt change along the way.
#519
Senior Member
Joined: Aug 2005
Posts: 855
Likes: 0
From: California, Sacrameto
Car: 88 gta
Engine: 350 tpi
Transmission: 700r4
Re: BBK TPI intake setup ($399.00)
With the way the plenum is designed you could also build custom plenum spacers, like the import guys have, to tune the plenum taper and volume to exactly what your car needs.
#520
Re: BBK TPI intake setup ($399.00)
It fits under the hood of the GTA we have here.
I only measured the length of the runners on the parts that we make, so the heads are not part of my equation.
From the top of the steel tubes (under the lid), through the lower intake, and ending at the head port opening (but not entering) = 14"
The difference from the other intakes will be our lid design. I believe it will be larger in volume than the other offerings.
We are looking into a Vortec style lower since that is the most popular choice of head mods out there.
It won't take much for us to make that happen since we design and machine everything in house and there is plenty of room to make adjustments in the castings (which can also be easily changed).
I only measured the length of the runners on the parts that we make, so the heads are not part of my equation.
From the top of the steel tubes (under the lid), through the lower intake, and ending at the head port opening (but not entering) = 14"
The difference from the other intakes will be our lid design. I believe it will be larger in volume than the other offerings.
We are looking into a Vortec style lower since that is the most popular choice of head mods out there.
It won't take much for us to make that happen since we design and machine everything in house and there is plenty of room to make adjustments in the castings (which can also be easily changed).
#521
Junior Member
iTrader: (1)
Joined: Nov 2007
Posts: 87
Likes: 0
From: Southeast, Tx
Car: 85 vette/87 TA
Engine: built 383/350 tpi
Transmission: built 700r4s
Axle/Gears: 3.45 dana 44/ 3.27 9 bolt
Re: BBK TPI intake setup ($399.00)
This may not be a question you can answer, but is there a projected release date? While in the process of rebuilding my engine, id like to add this for some extra power.
#525
Joined: Jun 2004
Posts: 304
Likes: 4
From: jacksonville, fl
Car: 1988 firebird
Engine: 305 tpi
Transmission: 95 T56
Axle/Gears: stock 10 built, yukon diff, 4.10
Re: BBK TPI intake setup ($399.00)
if this out when i finish my engine, and the price stays at 400. you defently have my business!
#526
Senior Member
Joined: Apr 2004
Posts: 587
Likes: 0
From: Calif
Car: 75 Vette
Engine: 406 TPI
Transmission: 700 R-4
Axle/Gears: 373
#527
Moderator
Joined: Jul 2001
Posts: 5,196
Likes: 59
From: Buffalo, NY
Car: 1988 IROC-Z
Engine: 427 SBC
Transmission: ProBuilt 700R4
Axle/Gears: Moser 12 Bolt / 3.73 TrueTrac
#529
Supreme Member
Joined: Jan 2003
Posts: 1,323
Likes: 0
From: Arthur, Ontario, Canada
Car: 92Z28, 99SS, 83Z28 & 86GTA
Engine: 421, LS1, 327Turbo & 383
Transmission: T-56, 4L60E, T5 & 4L60
Axle/Gears: 4:10, 3:42, 2:73 & 3:27
Re: BBK TPI intake setup ($399.00)
Couple questions
Will it cover heads that take a #1206 gasket? I got a LPE intake and I could look down into the heads when I tried to put it on, I had to go with a HSR. I am not worried about porting the intake out to the #1206 gasket, but will it have enuff meat on the intake to do so?
The other question is how well will it seal under boost? I have seen people have to add extra bolts to the lid of there super ram. Will this intake be solid on its own or will we have to do extra work to keep it sealed too?
http://www.stealthram.com/flowcomparison.html Scroll to the bottom to see the HSR gasket set-up
I am running AFR 195 Comp port heads
Will it cover heads that take a #1206 gasket? I got a LPE intake and I could look down into the heads when I tried to put it on, I had to go with a HSR. I am not worried about porting the intake out to the #1206 gasket, but will it have enuff meat on the intake to do so?
The other question is how well will it seal under boost? I have seen people have to add extra bolts to the lid of there super ram. Will this intake be solid on its own or will we have to do extra work to keep it sealed too?
http://www.stealthram.com/flowcomparison.html Scroll to the bottom to see the HSR gasket set-up
I am running AFR 195 Comp port heads
Last edited by Hawk92z-TDZ; 12-20-2007 at 06:49 PM.
#530
Supreme Member
iTrader: (3)
Joined: Sep 2003
Posts: 6,859
Likes: 14
From: Cypress, California
Car: 1989 GTA
Engine: 369 TPI
Transmission: 4L60E
Axle/Gears: 3.70 Nine Bolt
Re: BBK TPI intake setup ($399.00)
"Will this intake be solid on its own or will we have to do extra work to keep it sealed too?"
The way the runners "attach" to the intake manifold I doubt it would do you any good to buy it by itself.
The way the runners "attach" to the intake manifold I doubt it would do you any good to buy it by itself.
#531
Joined: Mar 2000
Posts: 5,680
Likes: 114
From: Orange, CA
Car: '90 Trans Am-12.45@110.71
Engine: 355 w/AFR 195's Elem. 400/430 HP/TQ
Transmission: Tremec T-56
Axle/Gears: 12 Bolt 3.73
Re: BBK TPI intake setup ($399.00)
#533
Banned
Joined: Jan 2007
Posts: 1,088
Likes: 0
From: NYTHIRDGEN
Car: 1989 T/A
Engine: PROCHARGED LB9
Transmission: FB BUILT 700r4 2200 stall
Axle/Gears: 10 BOLT EATON 3:73 POSI
Re: BBK TPI intake setup ($399.00)
after looking at that pic,, that would look killer, if polished and the bbk logo and those lines painted black..
#534
Re: BBK TPI intake setup ($399.00)
I'm looking at the original post here and I followed the link......
I looked all over our website and I can't seem to find any info on this intake.
I know this sounds ridiculous, but where did the original info come from?
I looked all over our website and I can't seem to find any info on this intake.
I know this sounds ridiculous, but where did the original info come from?
#535
Supreme Member
iTrader: (3)
Joined: Jun 2000
Posts: 1,680
Likes: 2
From: CT
Car: Used to drive a camaro
Re: BBK TPI intake setup ($399.00)
Bryan, your Co. has obviously replaced the link. The orignal info was taken from your site back in 2004. I'd hope your team or your Co. didn't decide to ditch the product 8(
I did see on vehicles needed for R&D free parts was a C4 vette. That would use the same intake setup I think right?
I did see on vehicles needed for R&D free parts was a C4 vette. That would use the same intake setup I think right?
#536
Member
Joined: Oct 2006
Posts: 365
Likes: 0
From: Melbourne,Fl
Car: 1989 TRANS AM GTA
Engine: 355 L98
Transmission: Built 700r4
Axle/Gears: BW 3.27
Re: BBK TPI intake setup ($399.00)
I might have missed it but does $399.00 include the plenum,runners and base?If so i will join list of people that want one and would be intested in prepaying if it would help with the release date coming any earlier!!!!
#538
Re: BBK TPI intake setup ($399.00)
http://www.bbkperformance.com/news-archives.shtml
For that $399 price BBK set this intake for, I'll pick one up as soon as it's available. But I really wouldn't be surprised if BBK doesn't hold to the $399 price and charges more.
#540
Guest
Posts: n/a
Re: BBK TPI intake setup ($399.00)
Yea, looks like a lot of R+D and material to me to hold the price down that low. Maybe I'm wrong... but... based on the TB prices I'm not so sure.
Hopefully it comes out priced ok for us to buy and for them to keep making it.
Hopefully it comes out priced ok for us to buy and for them to keep making it.
#542
Supreme Member
Joined: Jan 2003
Posts: 1,323
Likes: 0
From: Arthur, Ontario, Canada
Car: 92Z28, 99SS, 83Z28 & 86GTA
Engine: 421, LS1, 327Turbo & 383
Transmission: T-56, 4L60E, T5 & 4L60
Axle/Gears: 4:10, 3:42, 2:73 & 3:27
Re: BBK TPI intake setup ($399.00)
With the listed price there competing with the Holley, if they want to be taking a chunk out of the HSR sales they would have to keep it close in price
#543
Re: BBK TPI intake setup ($399.00)
Another quick question, will it clear aftermarket AFPR? particularlly the Holley with the adjustable wheel? and if so will it be easy to get to and adjust?
also any guestimate on availablity? spring 2008
also any guestimate on availablity? spring 2008
#545
Supreme Member
iTrader: (2)
Joined: Mar 2002
Posts: 2,516
Likes: 4
From: San Antonio TX
Car: 1990 G92 IROC Z Miniram
Engine: 388cu 6.4 Liters
Transmission: G-Force T5
Axle/Gears: 3.73 Gears
Re: BBK TPI intake setup ($399.00)
Is there anyway that you can give us some flow numbers of the manifold and manifold with runners?
#546
Member
Joined: Oct 2006
Posts: 365
Likes: 0
From: Melbourne,Fl
Car: 1989 TRANS AM GTA
Engine: 355 L98
Transmission: Built 700r4
Axle/Gears: BW 3.27
#547
Re: BBK TPI intake setup ($399.00)
#548
TGO Supporter
Joined: Jul 2001
Posts: 4,991
Likes: 1
From: Cheyenne, Wyoming
Car: 1992 B4C 1LE
Engine: Proaction 412, Accel singleplane
Transmission: built 700R4 w/custom converter
Axle/Gears: stock w/later 4th gen torsen pos
Re: BBK TPI intake setup ($399.00)
before
after
Here you go Bryan. Feel free to take this pic and let your catalog people have their way with it.
original size in JPG here and PNG available through PM
after
The baseplate and top cover attach with bolts around the perimeter. At this time they are going up from the bottom, but I am going to have them going down from the top because trying to get them going from the bottom sucks and requires a retarded ratcheting allen head tool which I'm sure almost nobody has.
Bryan
Bryan
Here you go Bryan. Feel free to take this pic and let your catalog people have their way with it.
original size in JPG here and PNG available through PM
Last edited by B4Ctom1; 12-24-2007 at 02:01 PM.
#550
Junior Member
iTrader: (1)
Joined: Jan 2006
Posts: 56
Likes: 0
From: Bensalem PA
Car: 88 formula
Engine: 305 comming soon a 357
Transmission: automatic
Re: BBK TPI intake setup ($399.00)
ok..im sure you have head this qustion a million times.. when will this intake be available as i am building an engine and need would like to have this intake befor i put it in..
