Replacement time?
#1
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Replacement time?
Hey guys, hoping to find some help here.
So here's what's up, bought an 88 base coupe, that appeared to be in good shape, little puff of oil smoke on start-up( old chevy figured just tired valve guides) but would go away immediately after the first 2 seconds. But last night sitting in the drive-thru at the local food joint, she started smoking, just while idling..
Now I've noticed she sometimes smokes at idle, and if I rev it up gives a good puff sometimes...
I'm starting to think my rings are going?
Any other possible issues, the car doesn't act like the motors dying, runs strong starts right up every time.. Just smokes lol
Any help?
If my motor is toast, crate 350 or rebuild a 350? Which will be more cost effective( car has 305 currently)
So here's what's up, bought an 88 base coupe, that appeared to be in good shape, little puff of oil smoke on start-up( old chevy figured just tired valve guides) but would go away immediately after the first 2 seconds. But last night sitting in the drive-thru at the local food joint, she started smoking, just while idling..
Now I've noticed she sometimes smokes at idle, and if I rev it up gives a good puff sometimes...
I'm starting to think my rings are going?
Any other possible issues, the car doesn't act like the motors dying, runs strong starts right up every time.. Just smokes lol
Any help?
If my motor is toast, crate 350 or rebuild a 350? Which will be more cost effective( car has 305 currently)
#2
Moderator
iTrader: (14)
Join Date: Mar 2000
Location: Littleton, CO USA
Posts: 43,169
Likes: 0
Received 36 Likes
on
34 Posts
Car: 82 Berlinetta/57 Bel Air
Engine: LS1/LQ4
Transmission: 4L60E/4L80E
Axle/Gears: 12B-3.73/9"-3.89
Welcome aboard thirdgen.org!
Sounds completely like valve stem seals. The factory ones get hard over time and crack, letting oil into the cylinder when the engine is sitting, or under high vacuum conditions. The valve stems & guides usually don't wear - in fact, the seals leaking helps lubricate them.
Sorry to dash your 350 excuse, but a few hours with an air compressor and valve spring compressor will be about all it takes to replace the valve stem seals.
Sounds completely like valve stem seals. The factory ones get hard over time and crack, letting oil into the cylinder when the engine is sitting, or under high vacuum conditions. The valve stems & guides usually don't wear - in fact, the seals leaking helps lubricate them.
Sorry to dash your 350 excuse, but a few hours with an air compressor and valve spring compressor will be about all it takes to replace the valve stem seals.
#3
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Re: Replacement time?
Welcome aboard thirdgen.org!
Sounds completely like valve stem seals. The factory ones get hard over time and crack, letting oil into the cylinder when the engine is sitting, or under high vacuum conditions. The valve stems & guides usually don't wear - in fact, the seals leaking helps lubricate them.
Sorry to dash your 350 excuse, but a few hours with an air compressor and valve spring compressor will be about all it takes to replace the valve stem seals.
Sounds completely like valve stem seals. The factory ones get hard over time and crack, letting oil into the cylinder when the engine is sitting, or under high vacuum conditions. The valve stems & guides usually don't wear - in fact, the seals leaking helps lubricate them.
Sorry to dash your 350 excuse, but a few hours with an air compressor and valve spring compressor will be about all it takes to replace the valve stem seals.
Just wasn't gonna put another 305 in if it was time
I was kinda hoping it was te heads.
What symptoms point to this vs rings? Just so I can learn haha
Thanks for the help and welcome ill be here a lot haha

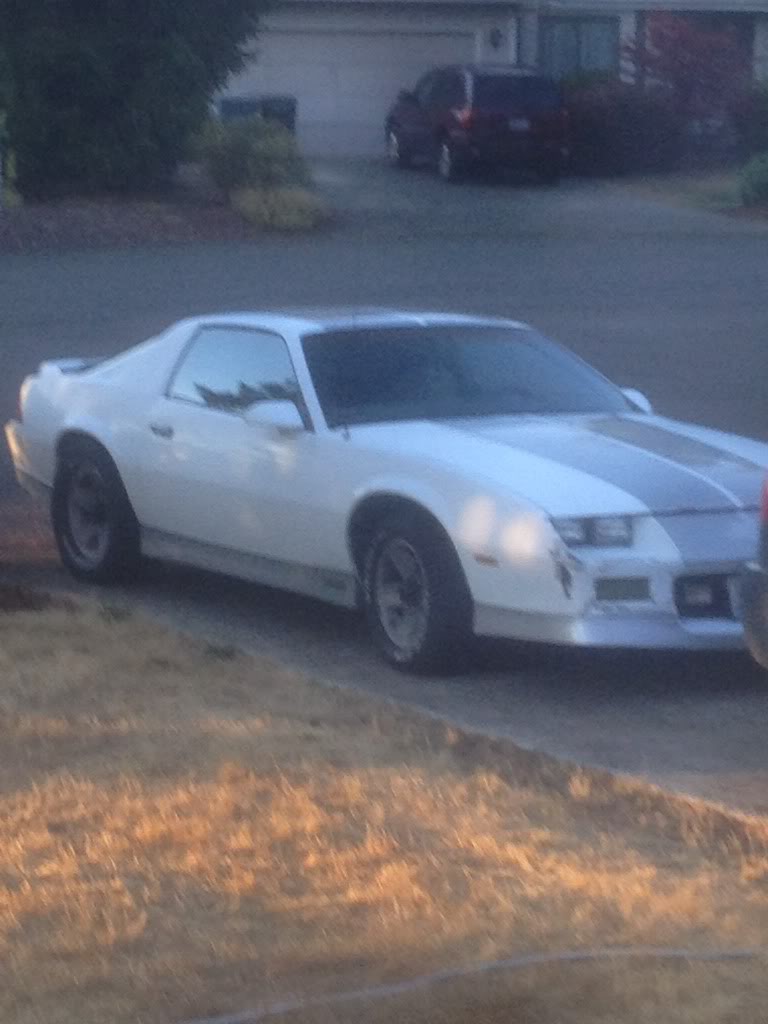

Pics for fun lol pic
Last edited by Nathanl91; 08-07-2013 at 03:13 PM.
#4
Moderator
iTrader: (14)
Join Date: Mar 2000
Location: Littleton, CO USA
Posts: 43,169
Likes: 0
Received 36 Likes
on
34 Posts
Car: 82 Berlinetta/57 Bel Air
Engine: LS1/LQ4
Transmission: 4L60E/4L80E
Axle/Gears: 12B-3.73/9"-3.89
Smoke at start-up and at idle. The reving smoke is just pushing out what has collected during idle.
If it smoked under power, that would indicate rings.
If it smoked under power, that would indicate rings.
#5
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Re: Replacement time?
Kinda what I was thinking, if I floored it, it should be all James Bond getaway scene style, but it doesn't do that, a little puff when I first get on it then its fine until it sits or idles for a bit
#6
Supreme Member
Join Date: Apr 2011
Location: Huntsville, AL
Posts: 1,051
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 Black IROC-Z convertible
Engine: 305 TBI
Transmission: Auto
Re: Replacement time?
Sounds like valve stem seals to me also. It's been a lot of years since I've replaced a set but I think that 57kid is right. There should be either links on here or youtube that will show you the way to do them. Good Luck!
#7
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Re: Replacement time?
Alright, now the question.. I'm seeing positive stop seals and umbrella seals, which ones fit my heads?
Sounds like the positive stop ones need to have a spot to be pressed into, does my motor have these?
Sounds like the positive stop ones need to have a spot to be pressed into, does my motor have these?
Trending Topics
#8
Moderator
iTrader: (14)
Join Date: Mar 2000
Location: Littleton, CO USA
Posts: 43,169
Likes: 0
Received 36 Likes
on
34 Posts
Car: 82 Berlinetta/57 Bel Air
Engine: LS1/LQ4
Transmission: 4L60E/4L80E
Axle/Gears: 12B-3.73/9"-3.89
You have to cut the tops of the valve stem guides to use the positive type seal. You have to remove the head to have this done.
The umbrella type should fit over uncut guide tops.
The umbrella type should fit over uncut guide tops.
#10
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Re: Replacement time?
http://m.oreillyauto.com/mt/www.orei...2402&ppt=C0146 o-ring
http://m.oreillyauto.com/mt/www.orei...2402&ppt=C0146 unbrella
Do I need both? Or one or the other?
http://m.oreillyauto.com/mt/www.orei...2402&ppt=C0146 unbrella
Do I need both? Or one or the other?
#11
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,461
Received 1,839 Likes
on
1,399 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Replacement time?
You don't want either the O-ring OR umbrella type seals. Not by themselves or in combination with anything else. They are useless.
You want "positive" type ones.
http://www.summitracing.com/parts/fe...make/chevrolet
All the O-rings do, is keep any oil that happens to be on top of the retainer, from running down the stem. Weenie.
Umbrellas stay stuck to the valve stem and ride up and down as the valve moves. All they do, is keep oil from splashing up under themselves. Slightly less weenie, but still weenie nonetheless.
"Positive" seals fit tight to the outside of the guide and stay attached there by way of a metal band that clamps them in place, and fit tight to the stem but allow the valve to slide through. Actually EFFECTIVE.
If you're going to go through the effort, use something that will actually DO something.
You want "positive" type ones.
http://www.summitracing.com/parts/fe...make/chevrolet
All the O-rings do, is keep any oil that happens to be on top of the retainer, from running down the stem. Weenie.
Umbrellas stay stuck to the valve stem and ride up and down as the valve moves. All they do, is keep oil from splashing up under themselves. Slightly less weenie, but still weenie nonetheless.
"Positive" seals fit tight to the outside of the guide and stay attached there by way of a metal band that clamps them in place, and fit tight to the stem but allow the valve to slide through. Actually EFFECTIVE.
If you're going to go through the effort, use something that will actually DO something.
#13
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Re: Replacement time?
You don't want either the O-ring OR umbrella type seals. Not by themselves or in combination with anything else. They are useless.
You want "positive" type ones.
http://www.summitracing.com/parts/fe...make/chevrolet
All the O-rings do, is keep any oil that happens to be on top of the retainer, from running down the stem. Weenie.
Umbrellas stay stuck to the valve stem and ride up and down as the valve moves. All they do, is keep oil from splashing up under themselves. Slightly less weenie, but still weenie nonetheless.
"Positive" seals fit tight to the outside of the guide and stay attached there by way of a metal band that clamps them in place, and fit tight to the stem but allow the valve to slide through. Actually EFFECTIVE.
If you're going to go through the effort, use something that will actually DO something.
You want "positive" type ones.
http://www.summitracing.com/parts/fe...make/chevrolet
All the O-rings do, is keep any oil that happens to be on top of the retainer, from running down the stem. Weenie.
Umbrellas stay stuck to the valve stem and ride up and down as the valve moves. All they do, is keep oil from splashing up under themselves. Slightly less weenie, but still weenie nonetheless.
"Positive" seals fit tight to the outside of the guide and stay attached there by way of a metal band that clamps them in place, and fit tight to the stem but allow the valve to slide through. Actually EFFECTIVE.
If you're going to go through the effort, use something that will actually DO something.
Summit also says those fit lt motors not my old lo3
I am getting a compression tester tomorrow
#14
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,461
Received 1,839 Likes
on
1,399 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Replacement time?
AFAIK those fit 305 heads; fit em last time I put em on some anyway.
Always lots of excuses for not doing stuff the right way, eh? (nothing personal, just in general)
Don't bother with a compression tester. Won't tell you diddly about oil burning. It's PERFECTLY possible for the compression rings to be PERFECT and the oil rings to be destroyed; or vice-versa.
But apart from that, about 99.999% of oil-burning in old Chevy motors is because the valve guide seals are bad; and the rest is merely because they need valve guide seals. Virtually NEVER the rings. If there's something wrong enough with the rings that they're causing visible oil burning, you'll be tearing the motor down for something else A LONG TIME before a bit of oil smoke will concern you. Work on a few hundred over the course of a few decades, you'll see.
Always lots of excuses for not doing stuff the right way, eh? (nothing personal, just in general)
Don't bother with a compression tester. Won't tell you diddly about oil burning. It's PERFECTLY possible for the compression rings to be PERFECT and the oil rings to be destroyed; or vice-versa.
But apart from that, about 99.999% of oil-burning in old Chevy motors is because the valve guide seals are bad; and the rest is merely because they need valve guide seals. Virtually NEVER the rings. If there's something wrong enough with the rings that they're causing visible oil burning, you'll be tearing the motor down for something else A LONG TIME before a bit of oil smoke will concern you. Work on a few hundred over the course of a few decades, you'll see.
#15
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Re: Replacement time?
I'm all for doing stuff right, just don't want to sink a ton of money into a 305 of unknown condition.. I plan on building a mild 350 once I'm confident this guy is gonna get me to work for a while..
#16
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Re: Replacement time?
So autozone lists a felpro kit for exhausts that is unbrella and oring
They list intake set as oring and positive type... I'm confused as to what I need?
They list intake set as oring and positive type... I'm confused as to what I need?
#17
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,461
Received 1,839 Likes
on
1,399 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Replacement time?
Exhausts aren't near as critical as the int, being as how there's no vacuum on the other side trying its hardest to suck oil past the seal like on the int, and whatever passes that way, doesn't go into the cyl, but instead just into the exh port.
Personally I'd put positive on both and forget about O-rings or umbrellas.
Not alot of money, so it's all good there.
Personally I'd put positive on both and forget about O-rings or umbrellas.
Not alot of money, so it's all good there.
#18
Junior Member
Thread Starter
Join Date: Aug 2013
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 sport coupe
Engine: L03 305
Transmission: 700r4
Re: Replacement time?
Exhausts aren't near as critical as the int, being as how there's no vacuum on the other side trying its hardest to suck oil past the seal like on the int, and whatever passes that way, doesn't go into the cyl, but instead just into the exh port.
Personally I'd put positive on both and forget about O-rings or umbrellas.
Not alot of money, so it's all good there.
Personally I'd put positive on both and forget about O-rings or umbrellas.
Not alot of money, so it's all good there.
Or all the valves different sizes?
#19
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,461
Received 1,839 Likes
on
1,399 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Replacement time?
Yup, you can put em on all of em.
Nope, all the same size. (where the seals go anyway)
Nope, all the same size. (where the seals go anyway)
