Pics of the inside of an L98 please!
#1
Guest
Posts: n/a
Pics of the inside of an L98 please!
Hey guys. I am starting the plans on a mild build for my L98. Pistons, crank, cam, ported heads and intake, full exhaust. I have built several DOHC engines but have never been inside a pushrod motor. The first time i saw the cam setup of a DOHC it really gave me the perfect mental picture I needed to plan building an engine and just helped me learn a lot more as I could picture what people were talking about.
So could someone post some pictures of the internals of a stock l98? It might be asking a lot but it would help me go into this a little less blind. Especially pics of the cam set up, the pushrods, some of the valve covers off. It would be a huge help. Thanks a million in advance guys.
So could someone post some pictures of the internals of a stock l98? It might be asking a lot but it would help me go into this a little less blind. Especially pics of the cam set up, the pushrods, some of the valve covers off. It would be a huge help. Thanks a million in advance guys.
#2
Senior Member
iTrader: (1)
Joined: Dec 2006
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
From: Bedford Tx
Car: 1991 Z28 1LE
Engine: 370CID GenIII
Transmission: 4l60e
Axle/Gears: 4.33 Moser 9inch
Re: Pics of the inside of an L98 please!
um just go look at pictures of any small block chevy, there are millions out there
#3
Re: Pics of the inside of an L98 please!

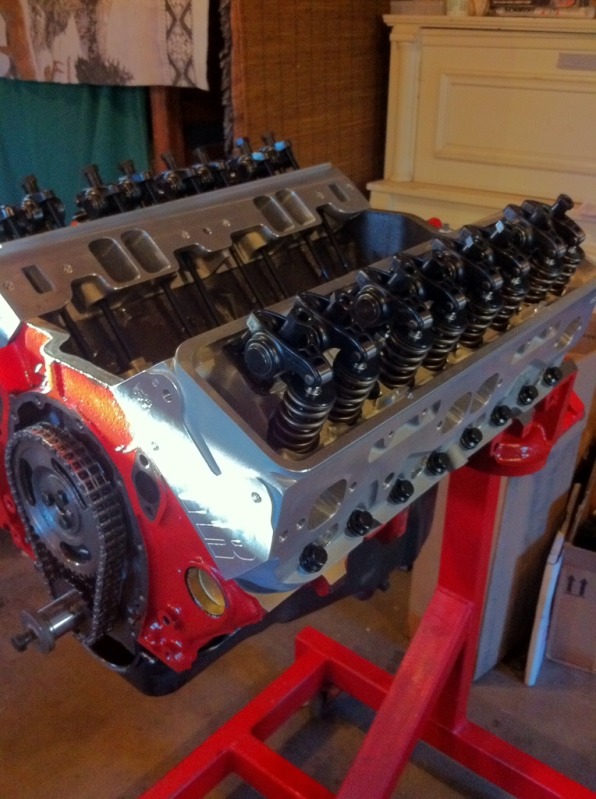

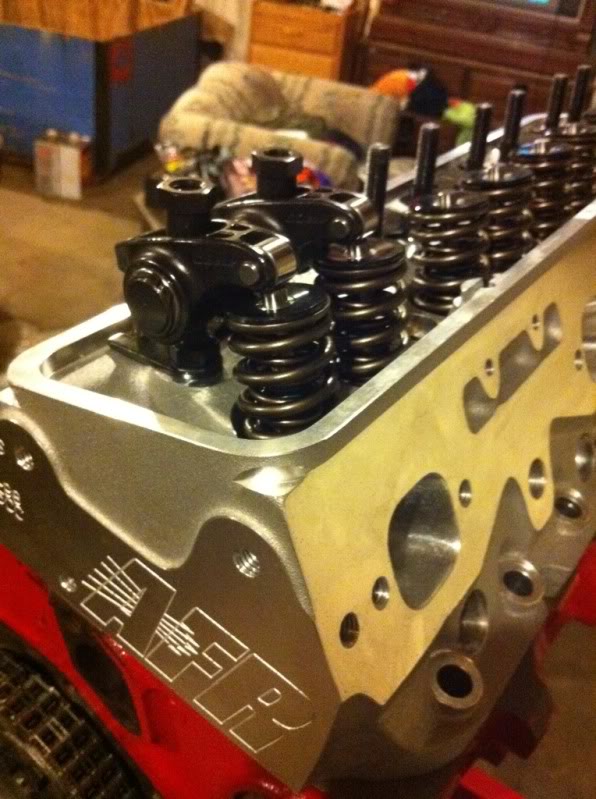

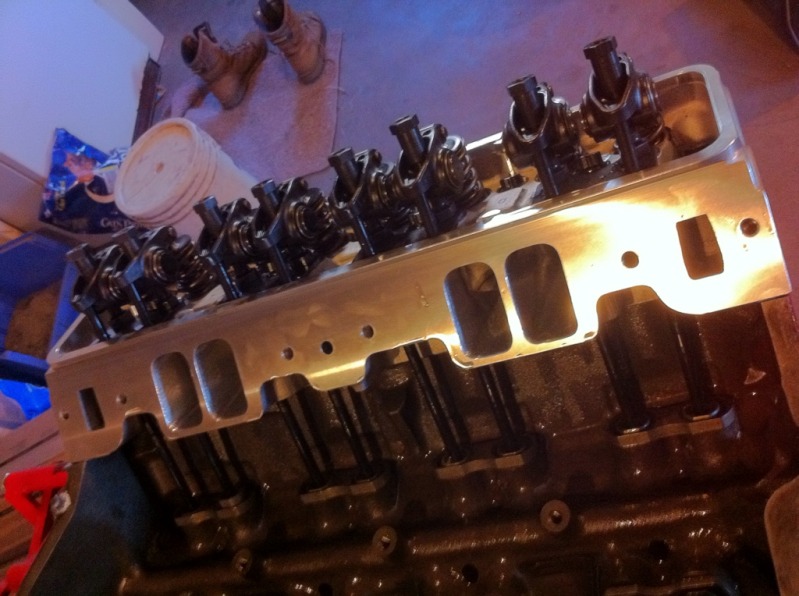

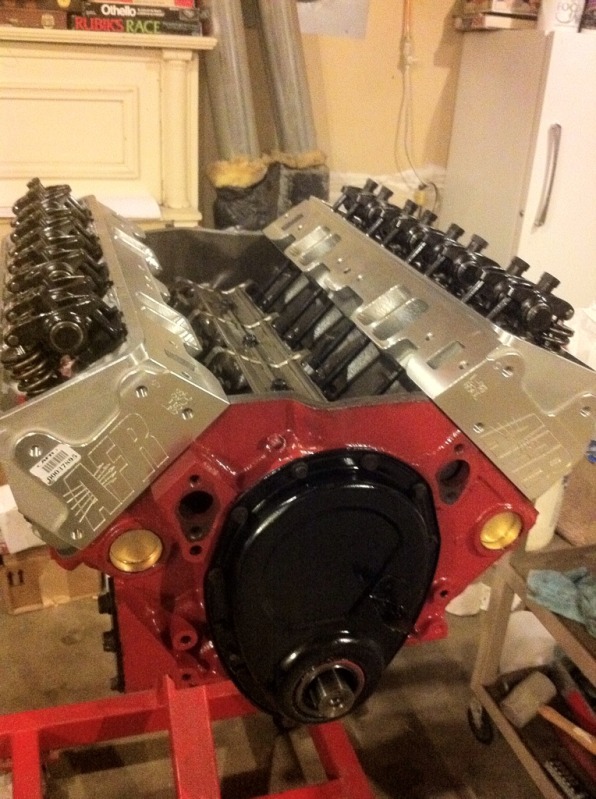

this should clear up some things for ya. Much simpler than a DOHC. I still can't picture in my head what my 4G63's valvetrain looks like. The cam is pretty well hidden by the time the crank gets put in. With the block upside down on the engine stand, you can see the lobes in between the main webs. This is (aside from the bling parts) what the factory hydraulic roller L98 setup looks like. The horizontal bars at the base of the pushrod are the "dogbones" that keep the roller lifters lined up on the cam lobes. In this last pic, you can see the "spider" that keeps the dogbones from jumping up off the tops of the lifters.
Last edited by 88gunmetalgta; 08-19-2012 at 06:48 AM.
#4
Supreme Member
iTrader: (13)
Joined: Apr 2005
Posts: 7,734
Likes: 0
Received 11 Likes
on
11 Posts
From: Not in Kansas anymore
Car: 82 Z28
Engine: 383 SP EFI/ 4150 TB
Transmission: T400
Axle/Gears: QP 9" 3.73
Re: Pics of the inside of an L98 please!
