Hose help please ASAP (with picture)
#1
Thread Starter
Junior Member
Joined: Mar 2009
Posts: 53
Likes: 0
From: Muskegon Michigan
Car: 1987 firebird formula
Engine: 350 TPI
Transmission: 5-speed
Hose help please ASAP (with picture)
So ive searched the threads for days now trying to find pictures of my question and its very simple but i just cant find an answer so hopefully the picture goes through but here goes....

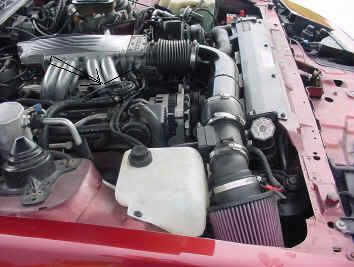

in this picture i have pointed out the little coolant routing "t" that goes right next to the throttle body. my question is the vacuum line that attatches to the very top of it where does it connect too? im getting gray hairs trying to figure this out. Any and all help will be awesome
in this picture i have pointed out the little coolant routing "t" that goes right next to the throttle body. my question is the vacuum line that attatches to the very top of it where does it connect too? im getting gray hairs trying to figure this out. Any and all help will be awesome
#2
Supreme Member
Joined: Jan 2009
Posts: 1,126
Likes: 0
From: Columbus Ohio
Car: 91 Z28,64ImpalaSS4094spd,67 Galaxy
Engine: Dart 415Profiler hd,cmprlrs,Hlly750
Transmission: Built 700R4, 3200 stall
Axle/Gears: 3:89 Moser 9"
Re: Hose help please ASAP (with picture)
Could be wrong as it's been awhile, but it should go back to the heater box and hookup on a vacuum block there. The piece you are pointing to is the heater control valve. Unfortunately my, GM manual is at my garage and I am @ home. If I get by there I will check....
#3
Thread Starter
Junior Member
Joined: Mar 2009
Posts: 53
Likes: 0
From: Muskegon Michigan
Car: 1987 firebird formula
Engine: 350 TPI
Transmission: 5-speed
Re: Hose help please ASAP (with picture)
awesome yeah id appreciate that a ton especially if you can get a pic. when i was diggin through my engine i found a melted hose on the drivers side from something but i cant tell what maybe you could tell me if its related or what it is too but i appreciate the help. thanks
i edited it to say i'll try and get the pic up at some point today haha kinda left that part out with no description.... my bad lol
John
i edited it to say i'll try and get the pic up at some point today haha kinda left that part out with no description.... my bad lol
John
Last edited by littlej2700; 03-21-2009 at 07:12 AM. Reason: forgot
#4
Supreme Member
iTrader: (28)
Joined: Jul 2006
Posts: 1,564
Likes: 1
From: ocklawaha FL.
Car: 81z-28,89gta,91z-28 03 1500
Engine: 355,L98vette tpi,327
Transmission: TH350/700R4/700r4/4l80E
Axle/Gears: 3;73/3;27/2;73/3;73
Re: Hose help please ASAP (with picture)
There should be a hard plastic vac. line that goes back into the firewall next to the heater hoses.
If you can't find it,just get some new heater hose and eliminate the valve completely.
Thats what I did on my 89.
If you can't find it,just get some new heater hose and eliminate the valve completely.
Thats what I did on my 89.
#5
Thread Starter
Junior Member
Joined: Mar 2009
Posts: 53
Likes: 0
From: Muskegon Michigan
Car: 1987 firebird formula
Engine: 350 TPI
Transmission: 5-speed
Re: Hose help please ASAP (with picture)
do you have any pics by chance or is there a diagram i could look at for that stuff... also im really tired after stayin up all night again so im probably just not thinkin straight but any visual aids would be the best but i appreciate that too i'll take a look when i get down there later today and see what i find thanks
John
John
#6
Supreme Member
Joined: Jan 2009
Posts: 1,126
Likes: 0
From: Columbus Ohio
Car: 91 Z28,64ImpalaSS4094spd,67 Galaxy
Engine: Dart 415Profiler hd,cmprlrs,Hlly750
Transmission: Built 700R4, 3200 stall
Axle/Gears: 3:89 Moser 9"
Re: Hose help please ASAP (with picture)
He's right a hard plastic vac line by the heater hoses. Yeah I ended up eliminating that valve as well. Since I swapped motors and went to carb I am a bit rusty on my TPI stuff, Thanks for the correction...
#7
Member
iTrader: (1)
Joined: Oct 2007
Posts: 150
Likes: 0
From: Dumfries, Va
Car: '89 Formula Firebird
Engine: LSX-451 / 705HP
Transmission: T-56
Axle/Gears: Moser Ford 9" with 4.30
Re: Hose help please ASAP (with picture)
If you eliminate that value, are you going to have hot anti-freeze going thru the heater core all the time causing the heat in the car to be on all the time? Even with A/C.
Eric
Eric
Trending Topics
#8
Supreme Member
Joined: Jan 2009
Posts: 1,126
Likes: 0
From: Columbus Ohio
Car: 91 Z28,64ImpalaSS4094spd,67 Galaxy
Engine: Dart 415Profiler hd,cmprlrs,Hlly750
Transmission: Built 700R4, 3200 stall
Axle/Gears: 3:89 Moser 9"
Re: Hose help please ASAP (with picture)
The heater core has nothing to do w/AC. If you have heat on cold no hot air comes through. I've had two 3rd gens setup that way now.
#9
Banned
iTrader: (12)
Joined: Jul 1999
Posts: 12,212
Likes: 10
From: Bertram (outside Austin), TX
Car: 87 GTA
Engine: L98
Transmission: 700R4
Axle/Gears: Dana M78 3.27 posi
Re: Hose help please ASAP (with picture)
Can't tell where mine ends. It runs into a wire loom, which is factory taped/wrapped at that point.
87 GTA hose
87 GTA hose
#10
Member
iTrader: (1)
Joined: Oct 2007
Posts: 150
Likes: 0
From: Dumfries, Va
Car: '89 Formula Firebird
Engine: LSX-451 / 705HP
Transmission: T-56
Axle/Gears: Moser Ford 9" with 4.30
Re: Hose help please ASAP (with picture)
Okay, if it works, but if you delete that value and you have 3 hoses going into it, do you get a "T" valve or how do you route the hose? Which one connect to which one?
Eric
Eric
#11
Joined: Feb 2002
Posts: 3,461
Likes: 4
From: N. Illinois
Car: 92 GTA/ 00 TA
Engine: 383/350
Transmission: 700R4/T-56
Re: Hose help please ASAP (with picture)
I eliminated the whole cluster or hoses and the T. Ended up re-routing all my coolant lines for a cleaner effect.

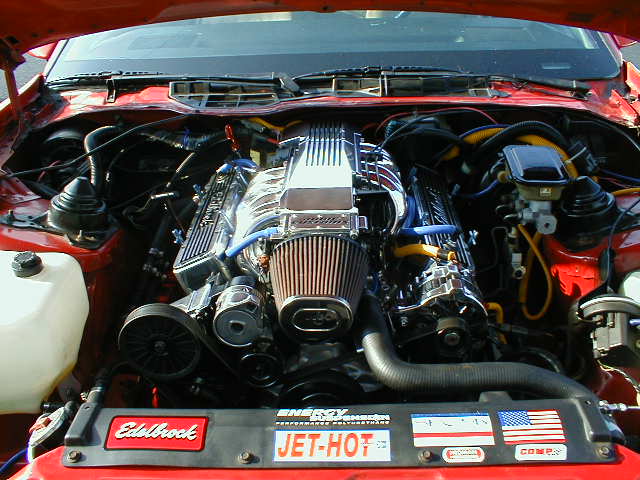

Not the greatest pic of those lines but here it is. Cost a lot of money for the preformed hoses from various cars.
Not the greatest pic of those lines but here it is. Cost a lot of money for the preformed hoses from various cars.
#12
Thread Starter
Junior Member
Joined: Mar 2009
Posts: 53
Likes: 0
From: Muskegon Michigan
Car: 1987 firebird formula
Engine: 350 TPI
Transmission: 5-speed
Re: Hose help please ASAP (with picture)
appreiate all the responses but i still cant see where in the firewall near the hoses it goes could anyone maybe get a close up and post it? thanks
#13
Banned
iTrader: (12)
Joined: Jul 1999
Posts: 12,212
Likes: 10
From: Bertram (outside Austin), TX
Car: 87 GTA
Engine: L98
Transmission: 700R4
Axle/Gears: Dana M78 3.27 posi
Re: Hose help please ASAP (with picture)
My video (Post #9) showing it going into a wire loom, didn't help? Follow the loom (since it apparently goes into the loom) & whereever the loom goes, so does the hose.
#14
Thread Starter
Junior Member
Joined: Mar 2009
Posts: 53
Likes: 0
From: Muskegon Michigan
Car: 1987 firebird formula
Engine: 350 TPI
Transmission: 5-speed
Re: Hose help please ASAP (with picture)
haha sorry stephen that was my bad my cursor didnt change over your link so i didnt even know it was there. that was exactly what i was looking for even though i cant find a hose or anything coming from that wire loom (my luck), but there were two things and i would love to post more pictures but of course my iphone wont work that way anymore.... i'll try and get a real camera soon to take pics of what i mean but maybe you guys can tell by my description. first one, there is a blueish 3 way vacuum connector that kind of sits over the brake booster with all of those wires and stuff... i have that plugged into my plenum in the back near the distributor... i think i got it hooked up right but who knows... second one, this could be either cruise or something else but it looked like another connector or some kind but the hose rund down under (from driver side) and was melted off probably from exhaust or something (i only say cruise because my cruise doesnt work... any ideas? i'll try and get pics ASAP
#15
2011 Norwood Gathering
ThirdGen Camaro Rep
ThirdGen Camaro Rep
iTrader: (5)
Joined: Mar 2008
Posts: 200
Likes: 0
From: MICH.
Car: 1989 IROC
Engine: 5.7
Transmission: 700R4
Axle/Gears: 9 bolt 2:77
Re: Hose help please ASAP (with picture)
stephen, in your video I seen a small check valve near the rear of the plenum. Could you please tell me where the three hoses connect to?
Thank's
Thank's
