Lost...Which Plug Does What

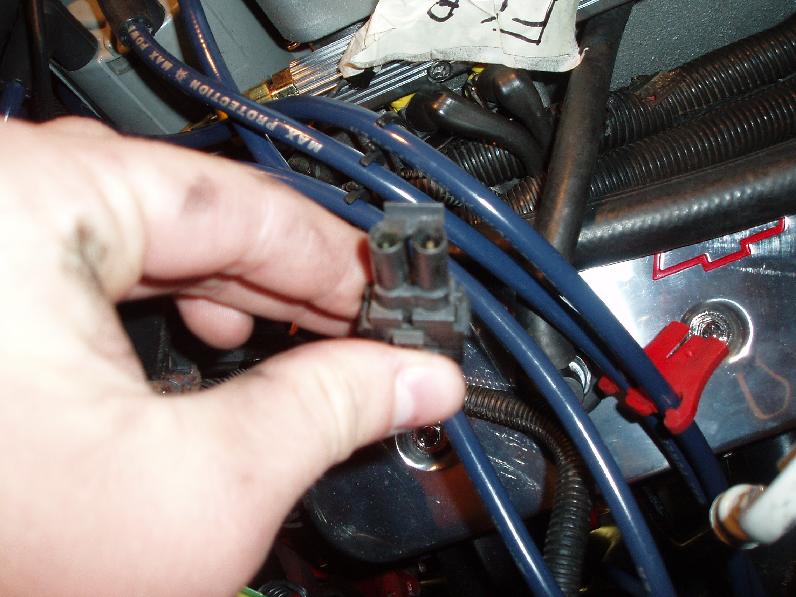

its a 86 (i'm guessing) 305 stock wiring harness....its a 89 vette motor...i have 3 plugs (pictured) that are up by the altenator, I have no clue what they do...then the other plug is back by the distributor...also, I found the 4 prong square plug that plugs into the tranny, and it looks like it was modified, because it has 2 wires spliced together....so there is only 3 wires coming out of it... I don't know where the wires came from either...so i was just wondering if anybody could tell me what any of these 5 plugs do...
06-08-2005, 01:08 PM
#3
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts

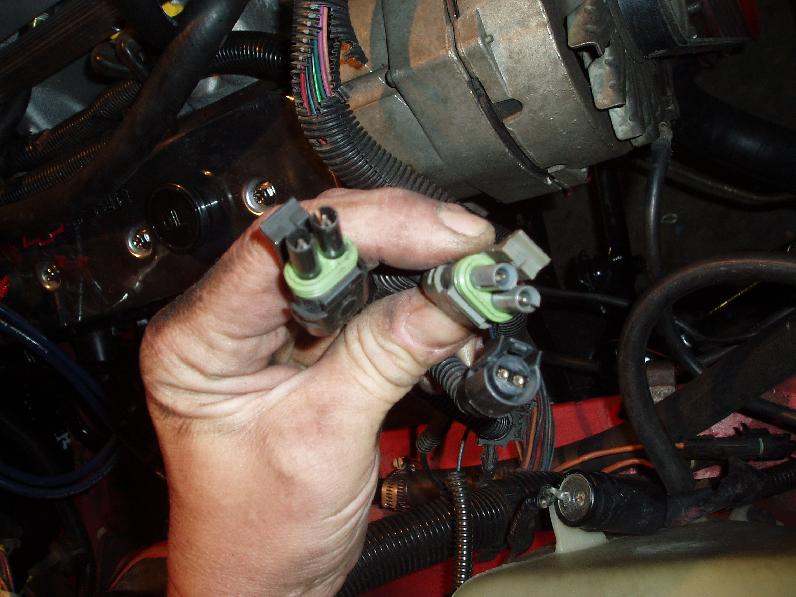

those 3 plugs in the second pic look like polution plugs that maybe came off that polution module by the airpump...that was my guess....does anybdoy know???
06-08-2005, 02:03 PM
#5
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
I found this in the pile of old TPI stuff...the plug fits, is this the MAT? and if so, how do I go about hooking it up...it looks like it has some vacuum lines on it and whatnot...
06-08-2005, 02:23 PM
#6
Supreme Member
Join Date: Feb 2004
Location: Greenville, SC
Posts: 1,231
Likes: 0
Received 1 Like
on
1 Post
Car: 1991 Chevy Camaro
Engine: 305 TBI
Transmission: 700R4
Axle/Gears: 3.42
The picture you just posted is of an EGR vacuum solenoid. Couldn't tell you where it goes on a TPI motor, but I know that's it. Sorry I'm not of more help.
06-08-2005, 02:27 PM
#7
Supreme Member
iTrader: (1)
Join Date: Oct 2004
Location: Worcester, MA
Posts: 3,361
Likes: 0
Received 1 Like
on
1 Post
Car: 86 T/A
Engine: HSR 355
Transmission: 700R4
Axle/Gears: 2.77 posi
That little round one is from AC. I also have a few spare plugs, and my car came with the AIR system removed. I have a black plug with black wires going to it with a purple stripe which goes to that solenoid which may be what is pictured there. The gray one just floats around in my car as well. Runs great so I'm not concerned.
Trending Topics
06-08-2005, 02:30 PM
#8
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
yea i deleted EGR...so I shouldn't need that plug then right? because that plug that fit was towards the back of the motor, and the EGR is under the TPI plenum towards that back...then the EGR itself had like a plug on it that looked like a O2 sensor plug am I right? so that top picture of that plug I shouldn't need if I deleted the EGR am I right?
Then we got those other 3 plugs and anybody know the scoop with the square plug that plugs into the tranny? where the wires go and whatnot...
Then we got those other 3 plugs and anybody know the scoop with the square plug that plugs into the tranny? where the wires go and whatnot...
06-08-2005, 02:32 PM
#9
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
That little round one is from AC. I also have a few spare plugs, and my car came with the AIR system removed. I have a black plug with black wires going to it with a purple stripe which goes to that solenoid which may be what is pictured there. The gray one just floats around in my car as well. Runs great so I'm not concerned. the ac is on the driver side...and we found all the plugs for that and set them aside...its wierd cuz they are all on one string, the only thing I could think of is something to do with that smog pump/solenoid....
06-08-2005, 03:00 PM
#10
Supreme Member
iTrader: (1)
Join Date: Oct 2004
Location: Worcester, MA
Posts: 3,361
Likes: 0
Received 1 Like
on
1 Post
Car: 86 T/A
Engine: HSR 355
Transmission: 700R4
Axle/Gears: 2.77 posi
Originally posted by klumb15
the ac is on the driver side...and we found all the plugs for that and set them aside...its wierd cuz they are all on one string, the only thing I could think of is something to do with that smog pump/solenoid....
the ac is on the driver side...and we found all the plugs for that and set them aside...its wierd cuz they are all on one string, the only thing I could think of is something to do with that smog pump/solenoid....
06-08-2005, 04:31 PM
#11
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
okay....awesome
circle one - a/c...don't need it
the two prong one in the back is EGR...don't need it
Then the other 2...you said that black one with 2 black wires with purple stripes is the Smog right...so i don't need that
And the gray one you said isn't hooked up on yours, i'm still curious on what that does tho..
then for the tranny one I found it was the overdrive plug...turns out it should be wired to the computer and it was not hooked up all last summer...so i was going on 3 gears I guess...no wonder gas mileage sucked...
circle one - a/c...don't need it
the two prong one in the back is EGR...don't need it
Then the other 2...you said that black one with 2 black wires with purple stripes is the Smog right...so i don't need that
And the gray one you said isn't hooked up on yours, i'm still curious on what that does tho..
then for the tranny one I found it was the overdrive plug...turns out it should be wired to the computer and it was not hooked up all last summer...so i was going on 3 gears I guess...no wonder gas mileage sucked...
06-09-2005, 04:57 PM
#12
TGO Supporter
iTrader: (4)
Join Date: Oct 2004
Location: Rockford, MI
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1983 Pontiac Trans AM
Engine: 355 chevy
Transmission: 700R4 Built
Axle/Gears: Built 10 bolt 3.73 gears
The four prong transmission plug is only supposed to have three wires coming out of it. That plug is for converter lockup.
06-09-2005, 05:06 PM
#13
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
yea it does have 3 wires coming out of it...it starts with 4, then 2 or spliced together...it looked a bit n*gger rigged...but thats how its supposed to be hey?....it wasn't hooked up before...how do I go about hooking it up?
06-09-2005, 06:31 PM
#14
TGO Supporter
iTrader: (4)
Join Date: Oct 2004
Location: Rockford, MI
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1983 Pontiac Trans AM
Engine: 355 chevy
Transmission: 700R4 Built
Axle/Gears: Built 10 bolt 3.73 gears
Hmm the best thing to do would be to consult the good ole wiring diagram I will have to check mine and see where those go. I know one of them goes to the ecm one is ground and one is power I believe. I have a TCI lockup kit for mine because I got rid of my ECM and that junk. I gotta Holley 750 up top now. I will try and get some info for ya.
06-10-2005, 01:56 PM
#18
TGO Supporter
iTrader: (4)
Join Date: Oct 2004
Location: Rockford, MI
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1983 Pontiac Trans AM
Engine: 355 chevy
Transmission: 700R4 Built
Axle/Gears: Built 10 bolt 3.73 gears
I will probably post it here. That way people can check it out also.
06-10-2005, 02:01 PM
#19
Member
Join Date: May 2003
Location: dallas,tx
Posts: 422
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans Am
Engine: tree-fiddy
Transmission: 700r4
the 2 plugs with the green rubber seals, one goes to the coolant temp sensor on the front of the intake, the other goes to the TPS.( I think, I'll look at my car in a minute and check.)
OK, not TPS that a 3 prong plug. but one looks to go to the coolant temp.
OK, not TPS that a 3 prong plug. but one looks to go to the coolant temp.
Last edited by Dr.NickRiviera; 06-10-2005 at 02:40 PM.
06-10-2005, 08:42 PM
#20
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
i got both of those plugs hooked up i'm pretty sure...cuz the coolant temp sensor is on the driver side of the HSR intake and its fully vertical am i right? theres no way those other ones would reach...so i'm sure I got the right plug hooked up there...i'm pretty certain on the other plugs.....just looking for some info on how to hook up that other tranny plug...
06-13-2005, 04:15 PM
#21
TGO Supporter
iTrader: (4)
Join Date: Oct 2004
Location: Rockford, MI
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1983 Pontiac Trans AM
Engine: 355 chevy
Transmission: 700R4 Built
Axle/Gears: Built 10 bolt 3.73 gears
alrighty, From what I have been looking at and from my previous knowledge I believe the hookup for the trans is:
3 wires, one black which is ground, one red (i think) which is wired to the ignition and the other goes to the ecm. The lockup has power all the time but isn't switched on until the ecm tells it to. Check the color of the wires that go to that plug and let me know.
3 wires, one black which is ground, one red (i think) which is wired to the ignition and the other goes to the ecm. The lockup has power all the time but isn't switched on until the ecm tells it to. Check the color of the wires that go to that plug and let me know.
06-13-2005, 09:32 PM
#22
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
I got blue, green, and purplish pink....then, I think its the green one, looks like it was cut, then a orange wire was attacted to it and wrapped in tape....so you can definately tell it has been messed with....also how many wires should come out of the plugs? because only 3 wires come out of mine...is the 4th slot on the plug used at all? it looks like i'm gonna need a new plug tho...
06-13-2005, 10:09 PM
#23
TGO Supporter
iTrader: (4)
Join Date: Oct 2004
Location: Rockford, MI
Posts: 300
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1983 Pontiac Trans AM
Engine: 355 chevy
Transmission: 700R4 Built
Axle/Gears: Built 10 bolt 3.73 gears
Hmmm, ya so there are supposed to be only 3 wires. The orange wire is most likely the ignition wire. I will have to look at the wiring diagram. Sorry for not getting to it I have had a long weekend. I will consult the diagram when I get a chance. I know that one is power one is ground and one goes to the ecm. I will find out which one is which.
06-14-2005, 11:05 AM
#24
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Jun 2004
Location: Menominee MI
Posts: 1,663
Likes: 0
Received 0 Likes
on
0 Posts
alright no problem...the car will be running this week but won't be on the road....so its not like I need this info immediataly...I appreciate you finding out all this stuff for me...
