Replacing Intake
#1
Senior Member
Thread Starter
Join Date: Dec 2003
Location: Ontario, Canada
Posts: 758
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 Pontiac Trans Am
Engine: 5.0L Fuel Injection
Transmission: Automatic 4speed /w OVerdrive
Replacing Intake

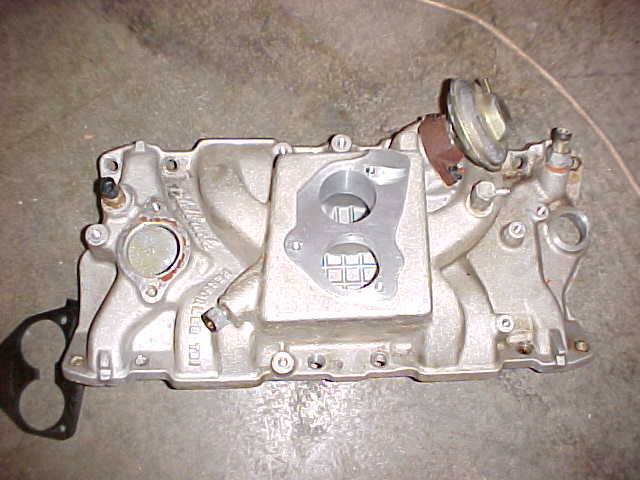

Well i was thinking of replacing my intake manifold for this Edelbrock Performer Intake.
The site says that it will fit a 305/350 TBI firebird and camaro from 1987 to 1992 and well i have a 1988 therefore theoretically it should fit right?
I just want some input before I order this bad boy up.
The site says that it will fit a 305/350 TBI firebird and camaro from 1987 to 1992 and well i have a 1988 therefore theoretically it should fit right?
I just want some input before I order this bad boy up.
#3
Senior Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Join Date: Oct 2005
Location: Waldorf, MD
Posts: 874
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 Formula, 89 IROC
Engine: LB9, LB9
Transmission: 700R4, 700R4
Axle/Gears: Posi 2.73, Posi 2.73
Ok I wanna do this too, if I mark where the distributor goes and drop it back in exactly in the same spot it came from on the new intake, will me timing be close to where it was?
#4
Senior Member
Thread Starter
Join Date: Dec 2003
Location: Ontario, Canada
Posts: 758
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 Pontiac Trans Am
Engine: 5.0L Fuel Injection
Transmission: Automatic 4speed /w OVerdrive
Sweet thanks for teh speedy response. I think I am gonna order that bad boy up.
#5
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
iTrader: (1)
Join Date: Jun 2002
Location: Chicago, IL
Posts: 1,843
Likes: 0
Received 2 Likes
on
2 Posts
Car: 91 Camaro RS Convertible
Engine: 305 TBI
Transmission: 5-Speed
Axle/Gears: 3.42
your profile says that you have TPI heads. As long as they are 081 heads, it will fit fine, 416's will take some modification. Just a heads up.
Yes, your timing will be right on if you make sure it goes in right where it was, as long as you DON'T turn the engine over at all. If the position of the engine changes, that doesn't work, otherwise you're good to go.
Ok I wanna do this too, if I mark where the distributor goes and drop it back in exactly in the same spot it came from on the new intake, will me timing be close to where it was?
#6
Supporter/Moderator
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
iTrader: (7)
Join Date: Feb 2001
Location: Cincinnati, OH
Posts: 13,343
Likes: 0
Received 424 Likes
on
325 Posts
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Originally posted by BronYrAur
Yes, your timing will be right on if you make sure it goes in right where it was, as long as you DON'T turn the engine over at all. If the position of the engine changes, that doesn't work, otherwise you're good to go.
Yes, your timing will be right on if you make sure it goes in right where it was, as long as you DON'T turn the engine over at all. If the position of the engine changes, that doesn't work, otherwise you're good to go.
Check the "LT1 cam digest" for complete intake manifold installtion procedures and read the intake selection posts in the "new to TBI" sticky.
#7
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
iTrader: (1)
Join Date: Jun 2002
Location: Chicago, IL
Posts: 1,843
Likes: 0
Received 2 Likes
on
2 Posts
Car: 91 Camaro RS Convertible
Engine: 305 TBI
Transmission: 5-Speed
Axle/Gears: 3.42
Yeah, I agree with Shifty, its absolutely best to check your timing and make sure it's set right, but it will at least be close so that you don't have to worry about turning the engine to TDC to drop in the distributor.
Personally, i prefer other manifolds to the Performer TBI but many like that manifold too. If you're looking for a direct bolt-in I suppose that would be your best bet. Good luck with it, its an easy swap.
Personally, i prefer other manifolds to the Performer TBI but many like that manifold too. If you're looking for a direct bolt-in I suppose that would be your best bet. Good luck with it, its an easy swap.
Trending Topics
#9
Moderator
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,432
Likes: 0
Received 224 Likes
on
210 Posts
Car: check
Engine: check
Transmission: check
Originally posted by 90CamaroTBI
How much less does that baby weigh than stock?
How much less does that baby weigh than stock?
Correct me if I am wrong, but isn't the Performer TBI manifold the same as the stock one? Same height, runner size, bore size, and plenum?
RBob.
#10
Supporter/Moderator
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
iTrader: (7)
Join Date: Feb 2001
Location: Cincinnati, OH
Posts: 13,343
Likes: 0
Received 424 Likes
on
325 Posts
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Originally posted by RBob
Probably not much, your stock one should also be aluminum.
Correct me if I am wrong, but isn't the Performer TBI manifold the same as the stock one? Same height, runner size, bore size, and plenum?
RBob.
Probably not much, your stock one should also be aluminum.
Correct me if I am wrong, but isn't the Performer TBI manifold the same as the stock one? Same height, runner size, bore size, and plenum?
RBob.
#11
Moderator
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,432
Likes: 0
Received 224 Likes
on
210 Posts
Car: check
Engine: check
Transmission: check
Got'cha, so it is a step up from a stock GM TBI intake. Not a lot, but some. It would then be a good choice for a stock'ish or mildly built motor that someone needed an intake for.
RBob.
RBob.
