plug wire routing?
#1
Thread Starter
Supreme Member
Joined: Apr 2003
Posts: 1,646
Likes: 41
From: Plano IL
Car: 92 Firebird,74 Nova
Engine: Stock tbi,Vortec 350
Transmission: T56, th350
Axle/Gears: 3.73 LSD, 2.73 open
plug wire routing?
I put in headers a few weeks back and i dont like how the wires are run. they are all real close to the headers and a few touchin them on the right side which isnt good. What are some good wire looms and what have you guys used? I found one i liked at summit but not sure if it will work with the a.i.r. tubes since they are real close to the valve covers, anybody have a good suggestion to what would work!I have moroso blue max 8.8mm wires and edelbrock tpi headers.Here is the link to summit http://store.summitracing.com/defaul...nter+bolt+loom its part number RNM-1120P also any pics would be great thanks a lot guys!
#4
Thread Starter
Supreme Member
Joined: Apr 2003
Posts: 1,646
Likes: 41
From: Plano IL
Car: 92 Firebird,74 Nova
Engine: Stock tbi,Vortec 350
Transmission: T56, th350
Axle/Gears: 3.73 LSD, 2.73 open
no im using the stock ac delco type plug i'll give another look tomorrow at running under the header
#6
Thread Starter
Supreme Member
Joined: Apr 2003
Posts: 1,646
Likes: 41
From: Plano IL
Car: 92 Firebird,74 Nova
Engine: Stock tbi,Vortec 350
Transmission: T56, th350
Axle/Gears: 3.73 LSD, 2.73 open
did you guys use all 90 degree boots? I replaced mine with factory style boots only changed the left rear to a 90.
#7
Senior Member
iTrader: (2)
Joined: May 2002
Posts: 731
Likes: 0
From: Chester, VA
Car: '88 GTA
Engine: L-98
Transmission: T-56
im still running fact style wires...i changed a couple of the boots to 90* so they wouldent hit (i dont remember which ones i changed) i do run shorty plugs though accel if i remember but i dont really like them im going back to ac delco plugs if they have shorty style that is
Trending Topics
#9
Thread Starter
Supreme Member
Joined: Apr 2003
Posts: 1,646
Likes: 41
From: Plano IL
Car: 92 Firebird,74 Nova
Engine: Stock tbi,Vortec 350
Transmission: T56, th350
Axle/Gears: 3.73 LSD, 2.73 open

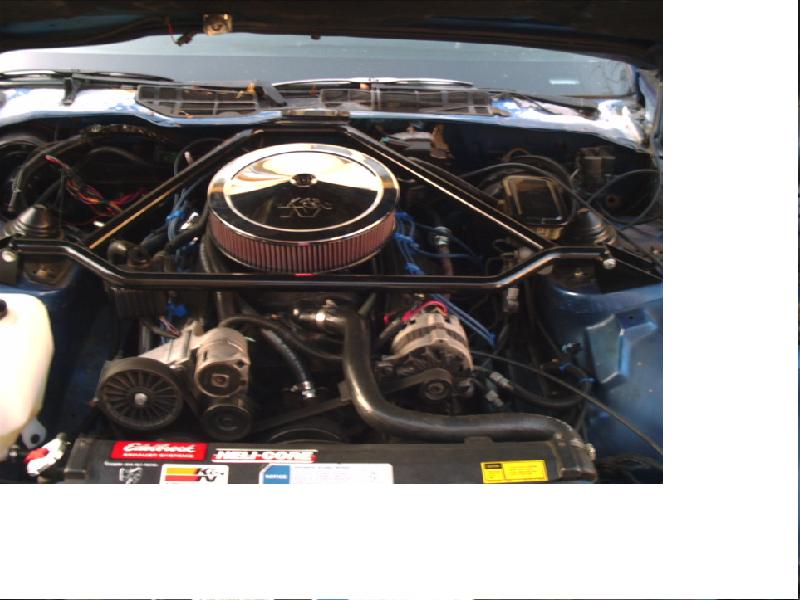

here is a pic of my Made For You wire looms
#10
Supreme Member
iTrader: (1)
Joined: Jul 2001
Posts: 1,828
Likes: 0
From: San Jose, CA
Car: 2002 Z28
Engine: LS1
Transmission: 4L60E
Axle/Gears: 3.23
on the drivers side they go right over the AIR tubes.
the passenger side is alittle trickier, i routed wires 2, 4, and 6 to the front of the engine (towards and next to the AC delete pulley), then up and along the valve covers. This keep them the greatest distance from the headers (Edelbrocks). The only wire i am unhappy with is number 8, it is the closest one to the headers (goes right between 2 primaries) and is starting to harden from the heat. You might want to use a few zip ties along with the wire looms just to make sure the wires stay exactly where u want them.
the passenger side is alittle trickier, i routed wires 2, 4, and 6 to the front of the engine (towards and next to the AC delete pulley), then up and along the valve covers. This keep them the greatest distance from the headers (Edelbrocks). The only wire i am unhappy with is number 8, it is the closest one to the headers (goes right between 2 primaries) and is starting to harden from the heat. You might want to use a few zip ties along with the wire looms just to make sure the wires stay exactly where u want them.
#12
Senior Member
Joined: Dec 2001
Posts: 731
Likes: 2
From: Blacksburg, VA
Car: '92 Rally Sport
Engine: LO3
Transmission: 700R4
Originally posted by vjo90RS8
here is a pic of my Made For You wire looms
here is a pic of my Made For You wire looms
Later,
Harry
Last edited by 1MEAN92RS; 06-13-2003 at 02:55 AM.
#13
Senior Member
iTrader: (2)
Joined: May 2002
Posts: 731
Likes: 0
From: Chester, VA
Car: '88 GTA
Engine: L-98
Transmission: T-56
where did you get that plug from on your air hookup on your headers? i had to use a piece of rubber heater hose and a bolt to stuff in the hose to stuff it temporarily and i hate the way it looks....it looks ghetto rigged but i havent found something better, yours kinda looks like a pipe cap is that corect?
#14
Get the Made 4 U looms....
I use 'em with my 90 degree Taylor 8mm wires and Hedman headers, and I use STOCK length AC Delco plugs and I have NO problems. No burning of wires, no touching etc. And my headers aren't even coated. I've put about 10k miles on 'em with NO issues.
HTH
I use 'em with my 90 degree Taylor 8mm wires and Hedman headers, and I use STOCK length AC Delco plugs and I have NO problems. No burning of wires, no touching etc. And my headers aren't even coated. I've put about 10k miles on 'em with NO issues.
HTH
#15
Senior Member
Joined: Dec 2001
Posts: 731
Likes: 2
From: Blacksburg, VA
Car: '92 Rally Sport
Engine: LO3
Transmission: 700R4
Originally posted by arrowcamaro
where did you get that plug from on your air hookup on your headers?
where did you get that plug from on your air hookup on your headers?
#16
Thread Starter
Supreme Member
Joined: Apr 2003
Posts: 1,646
Likes: 41
From: Plano IL
Car: 92 Firebird,74 Nova
Engine: Stock tbi,Vortec 350
Transmission: T56, th350
Axle/Gears: 3.73 LSD, 2.73 open
Those made for U looks good but i ordered last night for the summit part number RNM-1120P I'll let you guys know how they work, also how do i make a digitol pic smaller for web use my pics are huge and my host kindof sucks.
#20
Thread Starter
Supreme Member
Joined: Apr 2003
Posts: 1,646
Likes: 41
From: Plano IL
Car: 92 Firebird,74 Nova
Engine: Stock tbi,Vortec 350
Transmission: T56, th350
Axle/Gears: 3.73 LSD, 2.73 open
looks like you only have to unbolt them 1 at a time put the loom on then replace the bolt.
#21
Senior Member
Joined: Dec 2001
Posts: 731
Likes: 2
From: Blacksburg, VA
Car: '92 Rally Sport
Engine: LO3
Transmission: 700R4
Originally posted by novadk13
looks like you only have to unbolt them 1 at a time put the loom on then replace the bolt.
looks like you only have to unbolt them 1 at a time put the loom on then replace the bolt.
Later,
Harry
Oh and BTW. You can install these either pointing up or down the top of the valve cover depending on how you are routing your wires, your breather, PCV, oil cap, and etc. So you will have to play around with the routing a little to figure out what works best. Did I mention that the BEST thing about these is that they are made of zextel nylon which doesn't conduct electricity like billet aluminum wire looms
Last edited by 1MEAN92RS; 06-29-2003 at 02:55 PM.
#25
Thread Starter
Supreme Member
Joined: Apr 2003
Posts: 1,646
Likes: 41
From: Plano IL
Car: 92 Firebird,74 Nova
Engine: Stock tbi,Vortec 350
Transmission: T56, th350
Axle/Gears: 3.73 LSD, 2.73 open
Yeah they worked out well, had to bend the a.i.r tubes a little but not bad. Cant get a pic my camera took a crap.
