4th gen dash swap
#201
Re: 4th gen dash swap
I've got other ideas too. Would it work to install the 4th gen door panels with the controls and run the window switch wiring and the hatch release all the way to the pigtails in the center console? And the switches themselves are different, connector-wise right? And the hatch release is too? Would you have to splice the passenger window wiring to allow the passenger to roll their window down? Has anyone installed the interior fading light feature with success or is that impossible? A nice luxury but definitely not neccessary. Thanks in advance.
#202
Supreme Member
Joined: Jan 2002
Posts: 1,122
Likes: 2
Car: 1984 Trans Am 15th anniversary
Engine: L69
Transmission: 700r
Axle/Gears: 3:73
Re: 4th gen dash swap
I've read that the 97's are the way to go as far as compatability.
This car shoud have vss but i'm not sure. It's not cable driven so it should be. Will the tach/spedometer work or will i need the converter?
Has anyone attempted to install the old HVAC controls back onto the new dash or is that a stupid question?
Is there even an older style cluster with the digital odometer or have I lost my mind? If there isn't, I still want the older cluster.
#203
Supreme Member
Joined: Jan 2002
Posts: 1,122
Likes: 2
Car: 1984 Trans Am 15th anniversary
Engine: L69
Transmission: 700r
Axle/Gears: 3:73
Re: 4th gen dash swap
And the switches themselves are different, connector-wise right?
Would you have to splice the passenger window wiring to allow the passenger to roll their window down?
#205
Supreme Member
iTrader: (3)
Joined: Jan 2004
Posts: 2,311
Likes: 0
From: p'cola FL
Car: 88 iroc-z/28
Engine: 408 lsx
Transmission: 5800 stall
Axle/Gears: 4.71
Re: 4th gen dash swap
Yes that will work. 4thgen panels do not fit properly you are seeing 'selective' shots users have chosen to post. You would be happier with factory door panels or a custom style. 4thgen panels= your doors wont close properly and they look like they are butchered in in terms of fit and finish. Everything is tight and squished.
you post pictures of angles you want to see and ill try to duplicate those with my pics.
make it happen today. im going to wash the car and put the cover back on and it will be next week before id mess with it again.
i have "the gap" at the bottom front of my door panel, but only a purist would say they dont fit in this area.
everywhere else is great.......
you must have had bad luck fitting your panels, or really ****.
#206
Member
Joined: Nov 2007
Posts: 402
Likes: 29
From: milwaukee
Car: 91 Z28
Engine: LS1
Transmission: T56
Axle/Gears: Moser 9" 3.70 35 spline wavetrack
Re: 4th gen dash swap
I've got other ideas too. Would it work to install the 4th gen door panels with the controls and run the window switch wiring and the hatch release all the way to the pigtails in the center console? And the switches themselves are different, connector-wise right? And the hatch release is too? Would you have to splice the passenger window wiring to allow the passenger to roll their window down? Has anyone installed the interior fading light feature with success or is that impossible? A nice luxury but definitely not neccessary. Thanks in advance.
#207
Supreme Member
Joined: Jan 2002
Posts: 1,122
Likes: 2
Car: 1984 Trans Am 15th anniversary
Engine: L69
Transmission: 700r
Axle/Gears: 3:73
Re: 4th gen dash swap
you post pictures of angles you want to see and ill try to duplicate those with my pics.
you must have had bad luck fitting your panels, or really ****.
The panels where never designed for a 3rdgen and to try and say they fit near 100% perfect without any type of glassing or reworking is a little far fetched. But then again everyone has different ideas of what close to stock is. I guess I am a "purist" as you say.
Last edited by The_Wraith; 10-11-2010 at 08:22 AM.
#208
Supreme Member
Joined: Mar 2001
Posts: 1,754
Likes: 0
From: Pekin, IL
Car: 91 Formula, 79 Trans Am, 72 LeMans
Engine: 305 TPI, 6.6, 350 Pontiac
Transmission: T5, 3 speed, TH350
Re: 4th gen dash swap
Anyone do a LT1 dash? I swapped an LS1 dash into my LT1 4th gen car so I still have the factory dash in my garage. Since my dash pad on my 91 is cracked, considering this as a cheap alternative, unless i come across a stock third gen dash pad then I will sell the LT1 dash
#212
Guest
Posts: n/a
Re: 4th gen dash swap
I cannot believe th work people can do with these cars. It's amazing i would own a camaro forever a third gen if it had 4th gen interior everything. It would look so updated some people think value would drop i think it whould sky rocket.
#213
Senior Member
Joined: Sep 2006
Posts: 568
Likes: 7
From: San Antonio, Tx
Car: 1988 Camaro IROC-Z
Engine: LB9 (305 TPI)
Transmission: 700R4
Axle/Gears: 2.73 Positraction
Re: 4th gen dash swap
https://www.thirdgen.org/forums/inte...r-ducting.html
Complete walkthru for installing the 4th gen heater ducting into the 3rd gen.
I also grafted a complete 1994 harness into my 1983 Z/28, deleting the VATS, Passkey, SIR circuit, ABS system, and all emissions wiring. I do have working power door locks, power windows, interior lighting, dash lights, gauges, fully functional climate controls, retained accessory power, and power seats. I grafted in my modified 1985 Corvette TPI harness (injectors, O2 sensor, throttle position sensor, air intake temp, coolant temp, and tach only), and added in 24 pin computer connectors in strategic locations to allow modular removal of different parts of the harness. I routed my wiring thru the fenders, hidden under the heater box on the passenger side of the firewall, and kept the 1994 underhood relay/fuse box and have it mounted ahead of the windshield washer tank.
Complete walkthru for installing the 4th gen heater ducting into the 3rd gen.
I also grafted a complete 1994 harness into my 1983 Z/28, deleting the VATS, Passkey, SIR circuit, ABS system, and all emissions wiring. I do have working power door locks, power windows, interior lighting, dash lights, gauges, fully functional climate controls, retained accessory power, and power seats. I grafted in my modified 1985 Corvette TPI harness (injectors, O2 sensor, throttle position sensor, air intake temp, coolant temp, and tach only), and added in 24 pin computer connectors in strategic locations to allow modular removal of different parts of the harness. I routed my wiring thru the fenders, hidden under the heater box on the passenger side of the firewall, and kept the 1994 underhood relay/fuse box and have it mounted ahead of the windshield washer tank.
#214
Junior Member
Joined: Aug 2008
Posts: 42
Likes: 0
From: ATLANTA
Car: 86 Z-28
Engine: 350 VORTEC
Transmission: T-5
Axle/Gears: STOCK
Re: 4th gen dash swap
currently workin on dash swap . cluster is workin but i dont have the hot and igntion hooked up so would this cause my turn signals not to work yet?
also i have my headlight and parkin lights workin with the 4th gen switch
does anyone have the schematics for the small bezel lighting "white letters" to light up . ? i have my cluster lighten up right now
also i have my headlight and parkin lights workin with the 4th gen switch
does anyone have the schematics for the small bezel lighting "white letters" to light up . ? i have my cluster lighten up right now
#216
Supreme Member
iTrader: (30)
Joined: Sep 2005
Posts: 6,258
Likes: 4
From: O'Fallon, MO
Car: 1991 Z28 convertible built 3/1/1990
Engine: Cammed 6.0L LSX
Transmission: T56
Axle/Gears: custom Ford 8.8", 4.10 gears
Re: 4th gen dash swap
I came across a free 1997 Z28 dash las night I'm going to put it in my car.
Will having an LSx swap make the dash wiring any different? Also what did you guys do with the window switches on cars you left the stock door panels in? On a 4th gen the switches are on the door not the center console.
Will having an LSx swap make the dash wiring any different? Also what did you guys do with the window switches on cars you left the stock door panels in? On a 4th gen the switches are on the door not the center console.
#218
Supreme Member
iTrader: (8)
Joined: Aug 2003
Posts: 7,240
Likes: 6
From: LeRoy, NY
Car: 2003 Hyundai Tiburon GT
Engine: 2.7L V6
Transmission: 6-speed
Axle/Gears: 4.41
Re: 4th gen dash swap
I didn't get a response in another thread, so I'll ask here:
Any of you dash swappers running the stock 3rd gen ECM (1227165 or 1227730 for a lot of your V8s)? If so, where did you mount it?
Any of you dash swappers running the stock 3rd gen ECM (1227165 or 1227730 for a lot of your V8s)? If so, where did you mount it?
#219
Supreme Member
iTrader: (4)
Joined: Mar 2009
Posts: 3,079
Likes: 3
From: Pepperell, MA
Car: 1987 Trans Am
Engine: LQ9/L92
Transmission: 4L60E
Re: 4th gen dash swap
I came across a free 1997 Z28 dash las night I'm going to put it in my car.
Will having an LSx swap make the dash wiring any different? Also what did you guys do with the window switches on cars you left the stock door panels in? On a 4th gen the switches are on the door not the center console.
Will having an LSx swap make the dash wiring any different? Also what did you guys do with the window switches on cars you left the stock door panels in? On a 4th gen the switches are on the door not the center console.
it would only be different if you're using the 98+ instrument cluster, since the gauge info for those comes from the serial bus. I opted to stick with the "LT1" cluster to run analog gauges just like factory 3rd gen
#220
Supreme Member
iTrader: (30)
Joined: Sep 2005
Posts: 6,258
Likes: 4
From: O'Fallon, MO
Car: 1991 Z28 convertible built 3/1/1990
Engine: Cammed 6.0L LSX
Transmission: T56
Axle/Gears: custom Ford 8.8", 4.10 gears
Re: 4th gen dash swap
So I should be able to snip off the C100 bulk connector from the dash on the firewall and solder the corresponding wires on the new dash into the junction where they were on the stock dash?
Oh and another question I had was, what will I need to do with VAtS to ensure the car starts when I'm done
Oh and another question I had was, what will I need to do with VAtS to ensure the car starts when I'm done
Last edited by BlueZee28; 04-05-2012 at 01:28 PM.
#221
Junior Member
Joined: Sep 2011
Posts: 17
Likes: 0
From: St. Louis MO
Car: 1992 Camaro RS
Engine: LS 1
Transmission: 4L60E
Axle/Gears: 10 Bolt 2:83
Re: 4th gen dash swap
Is your vats turned off in the ecm? I wired the green ground wire from the start relay to a hidden switch and left it disconnected from the ecm. Works just like vats, wont crank until I flip the switch.
#222
Supreme Member
iTrader: (30)
Joined: Sep 2005
Posts: 6,258
Likes: 4
From: O'Fallon, MO
Car: 1991 Z28 convertible built 3/1/1990
Engine: Cammed 6.0L LSX
Transmission: T56
Axle/Gears: custom Ford 8.8", 4.10 gears
Re: 4th gen dash swap
Yea I believe it is turned off in the ECM, but the 3rd gen aspect of the system still functions with the chip in the key and the box behind the dash.
#223
Thread Starter
On Probation
iTrader: (9)
Joined: Feb 2005
Posts: 2,042
Likes: 2
From: So Cal
Car: 87 IROC-Z
Engine: LsX
Transmission: MN12 6speed
Axle/Gears: 3:42
Re: 4th gen dash swap
never updated this thread but only issue im running into right now is not enough air flow through the vents. i cut 4th gen portion to match the oem 3rd gen but its not functioning how it suppose to. 4th gen ventilation must be different. any leads? if not im looking into heater air duct or something similar.

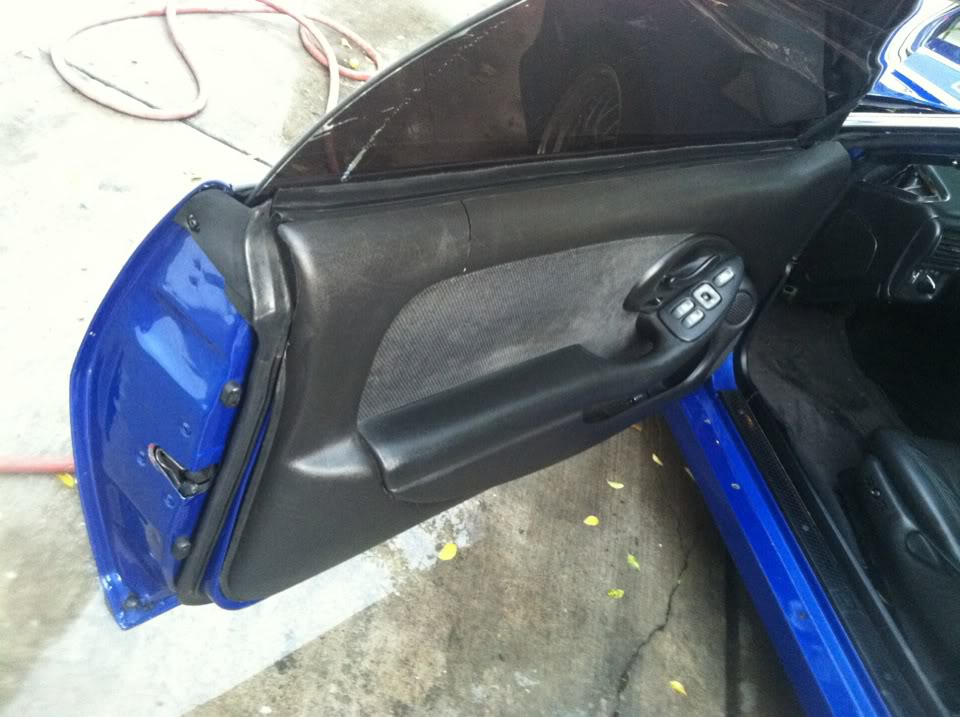

oh and i did my door panels a while back yes i know it has the usual crack up top
oh and i did my door panels a while back yes i know it has the usual crack up top
Last edited by TPI TERR; 08-11-2012 at 09:54 PM.
#225
Thread Starter
On Probation
iTrader: (9)
Joined: Feb 2005
Posts: 2,042
Likes: 2
From: So Cal
Car: 87 IROC-Z
Engine: LsX
Transmission: MN12 6speed
Axle/Gears: 3:42
Re: 4th gen dash swap
Unfortunately I don't*, I did use a torch to make this an easier install . Alot of trimming on the door panel it's self with no too many major cuts on the door sheetmetal besides the Interior door handle area
#226
Member
iTrader: (2)
Joined: Aug 2004
Posts: 205
Likes: 0
From: Eastgate/Cincy Ohio
Car: 1992 RS
Engine: ZZ4
Transmission: T-5
Axle/Gears: 3.73
Re: 4th gen dash swap
awesome job on the door panels, i have a set out of a 2000 SS hanging on my garage wall but havent got the ***** to go all out on it yet...only NICE set of black 3rd gen panels i can find is 300 bucks. too rich for my blood.
#228
Junior Member
iTrader: (2)
Joined: Aug 2012
Posts: 48
Likes: 0
From: brazoria county TX
Car: '76 LT, '87 IROC
Re: 4th gen dash swap
Congrats on all the hard work man, it does really update the look on our 3rd gens a whole lot, but then again its a classic/muscle car and you are gonna get people that complain saying that its meant to look older like it used too.... oh well, my first car was a 95 Z28 and the interior fitted me so perfect and it was real comfortable, and I have a 76 Camaro and my 87 Iroc, both cars have 4th gen seats in them and i think those are the best mods out of 100 ive done lol.
Ill be keeping an eye on your work with your 3rd gen so i can see what all 4th gen interior i can do myself also lol,
good job man! and dont forget, we wana see pics after pics after pics!!!
Ill be keeping an eye on your work with your 3rd gen so i can see what all 4th gen interior i can do myself also lol,
good job man! and dont forget, we wana see pics after pics after pics!!!
#229
Supreme Member
Joined: Jan 2002
Posts: 1,122
Likes: 2
Car: 1984 Trans Am 15th anniversary
Engine: L69
Transmission: 700r
Axle/Gears: 3:73
#231
Thread Starter
On Probation
iTrader: (9)
Joined: Feb 2005
Posts: 2,042
Likes: 2
From: So Cal
Car: 87 IROC-Z
Engine: LsX
Transmission: MN12 6speed
Axle/Gears: 3:42
Re: 4th gen dash swap
Come to so cal ill let u observe my door panels and full dash swap.
Bring ur car as well so I can give my personal opinion . It's 2012 you have a new coat of paint on your car yet ?
Bring ur car as well so I can give my personal opinion . It's 2012 you have a new coat of paint on your car yet ?
#232
Supreme Member
Joined: Jan 2002
Posts: 1,122
Likes: 2
Car: 1984 Trans Am 15th anniversary
Engine: L69
Transmission: 700r
Axle/Gears: 3:73
Re: 4th gen dash swap
Why would I come to "so cal" for anything? I don't need to see a "full dash swap" been there done that. Just saying going on 2013 and still no clear shots. I wonder why.. And hey now! A new coat of paint takes far more skill then a 4thgen dash swap
Last edited by The_Wraith; 10-18-2012 at 08:20 PM.
#234
Junior Member
Joined: Feb 2013
Posts: 3
Likes: 0
Car: 90 RS
Engine: LSX
Transmission: 4L60E
Axle/Gears: 3:73
Re: 4th gen dash swap
Im new to the site, have already started this swap, have a LS dash and console I will be starting. The dash I have was already mounted in another 3rd gen, So I know exactly how to mount it with no problems but this wiring is killing me. I dont care about the heating, just need my head,brake lights to turn on and for car to start. Also, is the steering column wiring connected to the dash?
#235
Supreme Member
iTrader: (8)
Joined: Aug 2003
Posts: 7,240
Likes: 6
From: LeRoy, NY
Car: 2003 Hyundai Tiburon GT
Engine: 2.7L V6
Transmission: 6-speed
Axle/Gears: 4.41
Re: 4th gen dash swap
Looking for someone who did the 93-97 Camaro swap...
What is the easiest way to get the spacer plate (between the upper part of the dash and the windshield) out of the donor? If I haven't already said, the car that donated my dash was in a front end crash, the windshield was destroyed, and so was the plate. I know of another yard that has a couple Camaros (at least they used to the last time I was there) that I can get the plate from, but I don't want to destroy it until I have to cut it to size...
Anyone?
What is the easiest way to get the spacer plate (between the upper part of the dash and the windshield) out of the donor? If I haven't already said, the car that donated my dash was in a front end crash, the windshield was destroyed, and so was the plate. I know of another yard that has a couple Camaros (at least they used to the last time I was there) that I can get the plate from, but I don't want to destroy it until I have to cut it to size...
Anyone?
#236
Junior Member
Joined: Feb 2013
Posts: 3
Likes: 0
Car: 90 RS
Engine: LSX
Transmission: 4L60E
Axle/Gears: 3:73
Re: 4th gen dash swap
Use cardboard and make a stencil then cut the dash pad to size
Looking for someone who did the 93-97 Camaro swap...
What is the easiest way to get the spacer plate (between the upper part of the dash and the windshield) out of the donor? If I haven't already said, the car that donated my dash was in a front end crash, the windshield was destroyed, and so was the plate. I know of another yard that has a couple Camaros (at least they used to the last time I was there) that I can get the plate from, but I don't want to destroy it until I have to cut it to size...
Anyone?
What is the easiest way to get the spacer plate (between the upper part of the dash and the windshield) out of the donor? If I haven't already said, the car that donated my dash was in a front end crash, the windshield was destroyed, and so was the plate. I know of another yard that has a couple Camaros (at least they used to the last time I was there) that I can get the plate from, but I don't want to destroy it until I have to cut it to size...
Anyone?
#238
Supreme Member
iTrader: (3)
Joined: Jan 2004
Posts: 2,311
Likes: 0
From: p'cola FL
Car: 88 iroc-z/28
Engine: 408 lsx
Transmission: 5800 stall
Axle/Gears: 4.71
Re: 4th gen dash swap
if its cold take a torch or a heat gun and a generator, LOL. if its warm out it will come out pretty easy.
if its cold temps or been baking in the sun for months, ive had them crack in half, and also break(and leave a white line) around where the clips are. some of them are reallllly holding it on. the hard ones are right around the hump in the instrument cluster. i think there are two.
i dont want to scare you, just inform you.
find a broken one in the yard and see if they will give it to you. i used a cracked one to make a template and transferred it onto my new one.
#239
Member
Joined: Mar 2011
Posts: 179
Likes: 0
From: Sewanee TN
Car: 86 Z28 Camaro
Engine: 5.7 Vortec
Transmission: 700r4
Re: 4th gen dash swap
I really could use some help I have to use a gauge cluster from a 93-97 firebird because I'm not using a LS but some of the 97 firebird odometers are analog and some are digital does it matter?
#240
Member
Joined: Oct 2006
Posts: 140
Likes: 0
From: Phenix City, AL
Car: 91Z, 97RS, 99Z, 02Z
Engine: TPI 383 Vortec, 3800, LS1, LS1
Transmission: T56, 700R4, T56, 4L60E
Axle/Gears: 3.73, 3.43, 3.42, ?.??
Re: 4th gen dash swap
No, it doesn't matter as long as you have everything wired correctly. Before I was finally able to get my hands on a 97 Z cluster I used an analog cluster from a V6 and a V8 93-97 bird. Of course the tach of the V6 was off but both of the speedos worked fine along with the odometers and trips.
