I started my 4th gen dash swap
I just wanted to tell you all that have put all the good info on this site THANK YOU..... I have used alot of the info on my swap. I have most of the wiring done just need to fab up the heating ducts, and wire up the 96 fog light switch. I will post pics up in a few days. I am real happy with the way it has turned out. Thanks again all
#3
Supreme Member
iTrader: (45)
Join Date: Dec 2003
Location: Northern, VA
Posts: 3,970
Likes: 0
Received 0 Likes
on
0 Posts
Car: Pair of 92 Z28s
Re: I started my 4th gen dash swap
cool stuff, ive debated it but i kinda like our 90-92 dashes. I hate our center console though. Are you also going to be adding a 4th gen console?]
Are you keeping AC / Heat on your car?
Are you keeping AC / Heat on your car?
#4
Senior Member
iTrader: (2)
Join Date: Feb 2006
Location: Wilmington,NC
Posts: 619
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 trans am
Engine: 305
Transmission: T5
Axle/Gears: 3.42 SLP rear
Re: I started my 4th gen dash swap
Wonder if it's lighter that the stock dash...
I'd love to have one of those just attached to look pretty and hold gauges. I won't need heat after too long.
I'd love to have one of those just attached to look pretty and hold gauges. I won't need heat after too long.
#5
Re: I started my 4th gen dash swap
Just a tip on the paint for the interior: I'm using Krylon Plastic Fusion satin black spray paint on mine. I'm only putting on one coat, just enough to turn the parts black so too much doesn't build up. I really like the satin black and not the gloss black. The satin black is a little glossy but it looks awesome. Not even sanding the parts either, just cleaning them off with dish soap. The paint will stick to polished plastic in temperatures around 40 degrees, good stuff.
#6
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
Just a tip on the paint for the interior: I'm using Krylon Plastic Fusion satin black spray paint on mine. I'm only putting on one coat, just enough to turn the parts black so too much doesn't build up. I really like the satin black and not the gloss black. The satin black is a little glossy but it looks awesome. Not even sanding the parts either, just cleaning them off with dish soap. The paint will stick to polished plastic in temperatures around 40 degrees, good stuff.
#7
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
I like our dashes if you keep it all stock, but with the 4th gen seats and the 4th gen console it just didnt look right to me, and also I couldnt find a firbird radio pod for a good price. So I desided to do the dash as well, and I did the 4th gen seat belts front and rear also. All my 4th gen stuff installed in my car will keep every one guessing...... lt1/t56, 4th gen interior, 98 brakes. I;m going to have all the bonuses of the 4th gen wit hte 3rd gen looks..... WAHOOOOOOOOOOOOOO. That is my goal anyway
Trending Topics
#8
Junior Member
iTrader: (1)
Join Date: Jun 2007
Location: Switzerland, Europe
Posts: 83
Likes: 0
Received 1 Like
on
1 Post
Car: 91 Z28
Engine: TPI 350
Transmission: T5
Re: I started my 4th gen dash swap
Great Work! But like Stevo said before I'd never swap my original 91 dash out! I like the cool clean look of the original dash! Fits perfectly to the design of the rest of the car!
but this looks great too I must admit!
but this looks great too I must admit!
#9
Member
Join Date: Oct 2006
Location: Michigan
Posts: 125
Likes: 0
Received 1 Like
on
1 Post
Car: 85 Iroc-Z
Engine: 350 4bbl
Transmission: T-5
Re: I started my 4th gen dash swap
i'm doing the same exact thing, well with a 4l60e. are you using the third gen wiring, or bringing over the 4th gen harness. I'm thinking about using the 4th gen harness as I have the whole car sitting in the driveway
Last edited by 3vi1p3nguin; 07-11-2007 at 02:48 PM.
#10
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
when I did the lt1 I used the 4th gen tied into the 3rd gen, the dash I tied the 4th to the 3rd..... didnt want to mess with wiring the whole thing.
#11
Re: I started my 4th gen dash swap
On the vent or ductwork, I'm thinking about using an aluminum mesh screen and then glueing foam to that screen to seal the vents better or route the air better. You can get aluminum door screen or window screen from anywhere(walmart, ace hardware, menards,etc.) for about $5 a roll which is plenty. I got the 1/2" foam from an upholstery shop.
Good luck, the dash is looking good so far.
Good luck, the dash is looking good so far.
#16
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap

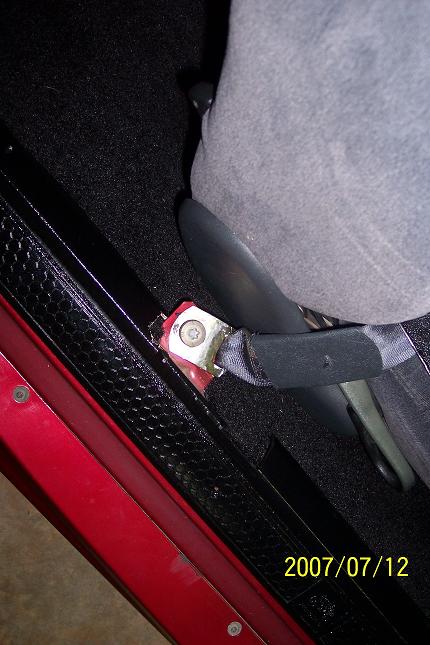

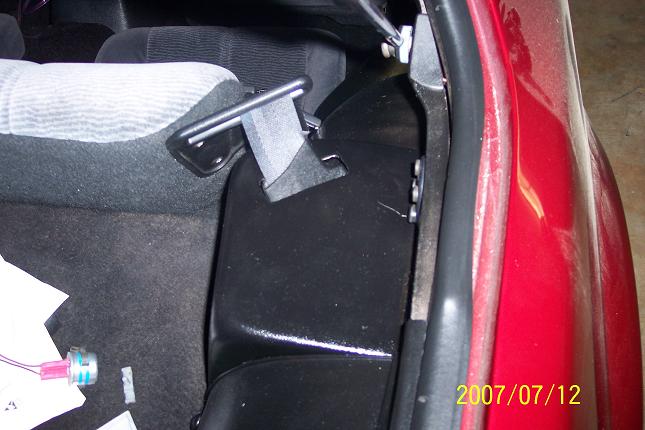

here is the 4th gen seat belts installed and some of the things i had to do to get the rears in, and the way I moded the fronts to look like stock
#18
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
here are the pics, I still have to put the drivers seat in, but that will haveto wait till the engine and tranny are back in, and do the head liner... but close
#21
Member
iTrader: (1)
Join Date: Apr 2006
Location: Caledon, Ontario
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
Car: 11 F350 CC DRW Dsl
Re: I started my 4th gen dash swap
My son and I are doing a 95 dash into his 89 Camaro.
How close are your armrests to the sides of the dash?
Did you make up anything to fill the gap between the left most top screw and the firewall or just force it to fit?
Have you hooked up all the heater controls?
How close are your armrests to the sides of the dash?
Did you make up anything to fill the gap between the left most top screw and the firewall or just force it to fit?
Have you hooked up all the heater controls?
#22
Member
Join Date: Nov 2000
Location: Southwest Ohio
Posts: 398
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1986 Firebird, 2000 WS6
Engine: 2.8, LS1
Transmission: 700R4, T-56
Axle/Gears: Stock, Stock
Re: I started my 4th gen dash swap
Will a 4th gen t-56 console work with the 3rd gen dash? Or will the top of the 4th gen and the radio area on the 3rd gen not align correctly, have a gap, or just not fit?
#23
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
I used a spacer for the gap. and for the arm rests they are close but ok. enough room to close the door
#24
Member
Join Date: Nov 2000
Location: Southwest Ohio
Posts: 398
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1986 Firebird, 2000 WS6
Engine: 2.8, LS1
Transmission: 700R4, T-56
Axle/Gears: Stock, Stock
#26
Supreme Member
iTrader: (1)
Join Date: Jul 2001
Location: Maple Shade, NJ
Posts: 1,509
Likes: 0
Received 0 Likes
on
0 Posts
Re: I started my 4th gen dash swap
nice work......
When we parted a 95 TA, its unbelievable the amount of wiring thats in that interior. I don't think i would have the patience to go through that ....
When we parted a 95 TA, its unbelievable the amount of wiring thats in that interior. I don't think i would have the patience to go through that ....
#27
Member
Join Date: Jul 2007
Location: Lake Jackson Tx
Posts: 295
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91z,97ws6,98fb,87&90jeep,05 yz250
Engine: 5.0tpi,5.7LT4,5.7LS1,4.2I6,5.7TPI,1
Transmission: t5,4l60e,
Axle/Gears: 3.42
Re: I started my 4th gen dash swap
how did it go as far as bolting it in and fit did you have to change out the brackets or make new ones. along time ago i put a 92z in an 85z and had to cut out the spot welds and it was a bit of a pain making sure it lined up properly and now i want to do it to my 91z keep the pics coming
#28
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
the wires isn't to bad, but it does take time., the dash pretty much bolted in, with a little mod, had to cut out the old side brackets, and make a new one for the drivers side. but other then that
#29
Supreme Member
iTrader: (7)
Join Date: Mar 2005
Location: mid GA
Posts: 1,926
Likes: 0
Received 3 Likes
on
2 Posts
Car: 88 IROC
Engine: 305 TPI w/ l98 cam
Transmission: T5 5-speed
Axle/Gears: 3.45 posi disc 9 bolt
Re: I started my 4th gen dash swap
btw i got my shift plate in and it looks great, now if i could get the damn thing to run... i got it running when i left your house but it only ran for a couple of days, im stumped..
#30
Member
iTrader: (1)
Join Date: Apr 2006
Location: Caledon, Ontario
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
Car: 11 F350 CC DRW Dsl
Re: I started my 4th gen dash swap
I have all the wiring pretty much done and functional. We didn't swap the drivetrain so I made an adapter for the speedo signals.
----------
Any pics anywhere of putting the 4th gen door panels on? I have a set here but figured they wouldn't fit because they have an indent in them where they would need to drop inside the door itself.
Last edited by NomadTA; 07-24-2007 at 07:00 AM. Reason: Automerged Doublepost
#31
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
i hope you are doing the 4th gen door panels as well...? i dont hink it would look "right" without them.
btw i got my shift plate in and it looks great, now if i could get the damn thing to run... i got it running when i left your house but it only ran for a couple of days, im stumped..
btw i got my shift plate in and it looks great, now if i could get the damn thing to run... i got it running when i left your house but it only ran for a couple of days, im stumped..
actually I do not plan on doing the door panels. They don't fit well even after all the mods you have to do to the door. but will have to see later. what is your car doing???? I will try to help ya out if I can
Do you have a nice clear pic of the mod you made to the drivers side? I think we need to get ours back in further, it's still about an inch from the firewall mount point. Before the harness went up behind the dash it was closer. I don't think we can get the drivers door pull to clear the dash yet. Did you route the harness up over the steering column?
my harness is over the dash, and I pretty much cut off all the old brackets from the firewall on the drivers side...
#32
Supreme Member
iTrader: (7)
Join Date: Mar 2005
Location: mid GA
Posts: 1,926
Likes: 0
Received 3 Likes
on
2 Posts
Car: 88 IROC
Engine: 305 TPI w/ l98 cam
Transmission: T5 5-speed
Axle/Gears: 3.45 posi disc 9 bolt
Re: I started my 4th gen dash swap
and check out the transmission and drivetrain board, i posted up what was wrong with my car and didnt get much of a response check it out maybe you might know more about it than i do b/c im stumped.
#33
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
i have researched the door panels allot, I don't like the way they fit the 3rd gen door.....although I have seen that the T/A's seem to fit better
#34
Supreme Member
Join Date: Jan 2001
Location: Pittsburgh, PA
Posts: 1,374
Likes: 0
Received 1 Like
on
1 Post
Car: 06 SRM M6 GTO, 98 Grand Prix GTP
Re: I started my 4th gen dash swap
Yeah those door panels are fun to get fitted right. They're a little tight and the bottom is about an inch short but they make everything look more modern. I didnt do the dash, but just the doors make a huge difference.
Your dash is looking great so far though
Your dash is looking great so far though
#36
Re: I started my 4th gen dash swap
Man that dash and console looks great. I just bought an 89 IROC, and the interior is a mess. I really like that change over. How did all the wiring crossover? Was it pretty simple or real headache? I really like the way the graphite color interior looks too. Good job!!!
Last edited by NobleHdwe; 07-25-2007 at 02:45 PM.
#38
Member
iTrader: (1)
Join Date: May 2005
Location: Boston, MA
Posts: 186
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 IROC-Z
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 10-Bolt w/3.08's (dying)
Re: I started my 4th gen dash swap
Looks very nice. I'm interested in doing this swap aswell. Do you need the dash wiring from the 4th gen?
#40
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
well I finally finished all the wiring and mounted everything, here is a few pics, I just need to find some TA door panels. I also made a panel to move t he window switches.
#41
Senior Member
Join Date: Apr 2007
Location: Canada, Vancouver Island
Posts: 665
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 T-Top Camaro RS
Engine: engineless
Transmission: Trannyless
Axle/Gears: 10 bolt/3.08. soon to be axleless
Re: I started my 4th gen dash swap
looks really nice!
i like it
are you going to paint the passenger side dash so it matched the rest of the dash? it looks kinda greyish blue
i like it
are you going to paint the passenger side dash so it matched the rest of the dash? it looks kinda greyish blue
#43
Senior Member
Join Date: Sep 2007
Location: Lancaster, Ohio
Posts: 301
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Camaro RS V6
Engine: 3.1 V6 MFI
Transmission: 700R4
Axle/Gears: 3.23 stock
Re: I started my 4th gen dash swap
WOW. I love it! What did you do about cruise control? Just bring all the 4th gen stuff over? If anyone on here would like to be paid to do an interior swap for me I could be very generous. I want to get my engine and paint done before the interior, but man I hate wiring. If anyone is short on cash when the time comes, I would be willing to pay 500 plus parts. If that's not fair we can work something out. PM me if interested. - Nate
#44
Supreme Member
Thread Starter
iTrader: (10)
Join Date: Sep 2002
Location: Ga.
Posts: 2,113
Likes: 0
Received 0 Likes
on
0 Posts
Car: sold
Re: I started my 4th gen dash swap
I never hooked you the cruise, with my lt1 swap. I don't do highway driving anymore with this car so it isnt that big of an issue. I am also thinking about taking out the heater stuff also. not sure as of yet though
#45
Senior Member
Join Date: May 2003
Location: California
Posts: 743
Likes: 0
Received 0 Likes
on
0 Posts
Car: '91 Firebird
Re: I started my 4th gen dash swap
Looks great, sean. I've been working on the same project for awhile. What did you do to fill the gaps on the sides?
#47
Junior Member
Join Date: Apr 2007
Location: california
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Z28 CONVERTIBLE
Engine: SUPERCHARGED 5.0
Transmission: AUTO
Re: I started my 4th gen dash swap
#48
Supreme Member
Join Date: Nov 2004
Location: Connecticut
Posts: 1,345
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 IROC w/Danko bodykit, 1988 iroc vert, 1989 k1500 pickup 6" lift and 35" tires, 2002 chevy tahoe z71
Engine: 383 stealth ram, 305 tpi, 350 tbi, 5.3l
Transmission: T56, 700r4, 700r4, 4l460
Re: I started my 4th gen dash swap
i want to do a swap also. from the pic it looks like there is some sort of gap between the top part of the dash to where it meets the windshield. Is there a pic missing or is this the way it looks. Does anyone have a more clearer pic of it.
#50
Supreme Member
Join Date: Nov 2004
Location: Connecticut
Posts: 1,345
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 IROC w/Danko bodykit, 1988 iroc vert, 1989 k1500 pickup 6" lift and 35" tires, 2002 chevy tahoe z71
Engine: 383 stealth ram, 305 tpi, 350 tbi, 5.3l
Transmission: T56, 700r4, 700r4, 4l460
Re: I started my 4th gen dash swap
yea i looked at other posts and seen there is a upper dash. thanks
Thread
Thread Starter
Forum
Replies
Last Post
