C100 connector removal
#1
C100 connector removal
I should have titled "terminal removal" not connector...
Does anyone know if a wire/terminal can be removed from the inside of the car without disassembling the C100 connector on the firewall?

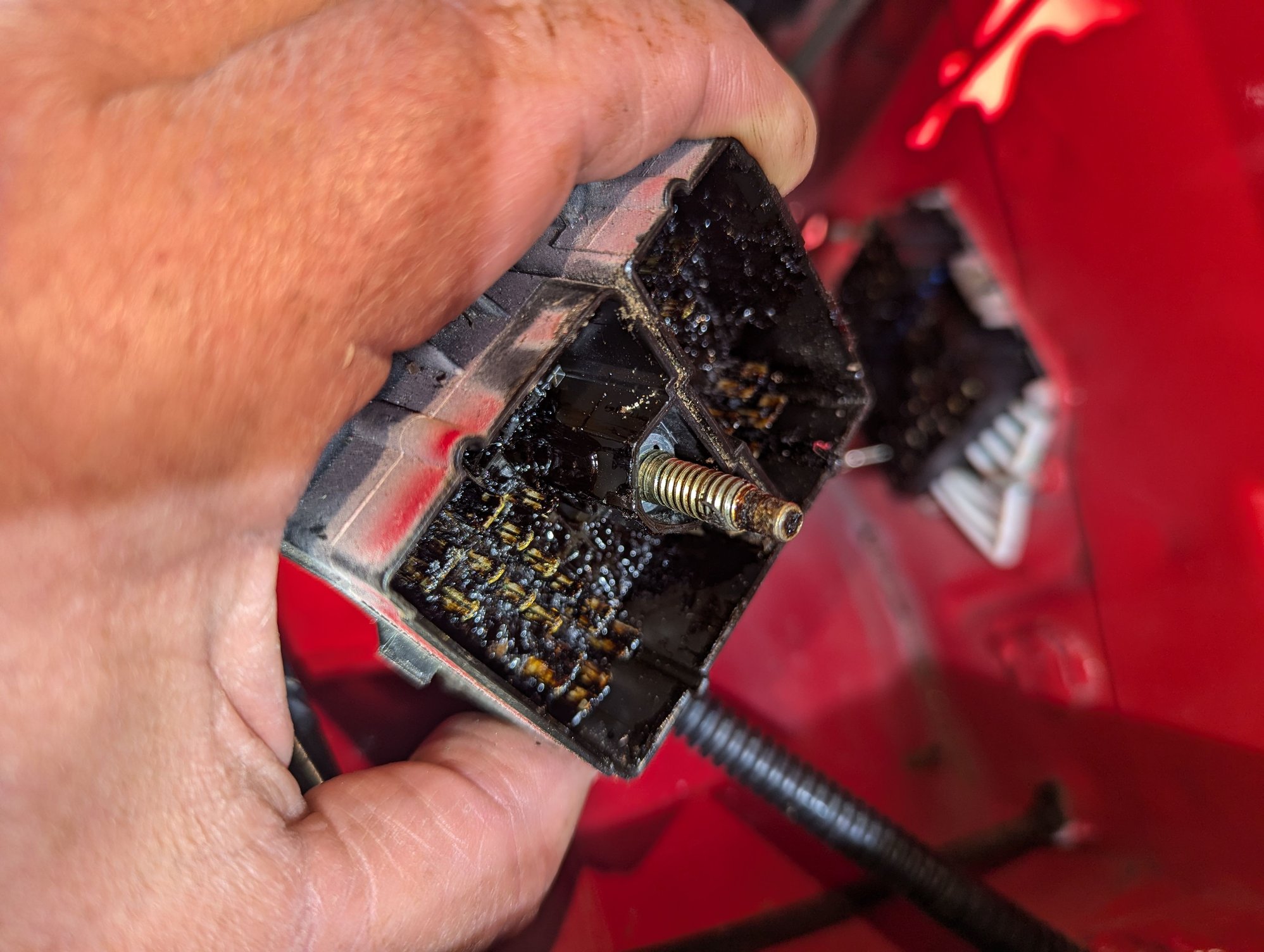

I believe I've found my intermittent power drop to Acc fuse and headlights. You can see black heat marks above the Red wire in G5.
Does anyone know if a wire/terminal can be removed from the inside of the car without disassembling the C100 connector on the firewall?
I believe I've found my intermittent power drop to Acc fuse and headlights. You can see black heat marks above the Red wire in G5.
Last edited by KCG; Today at 08:26 AM.
#2
Joined: Feb 2001
Posts: 13,364
Likes: 430
From: Cincinnati, OH
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Re: C100 connector removal
Yes, you can use a de-pin tool and pull out the terminal. Disconnect the connections from the firewall side first.
#3
Member
iTrader: (1)
Joined: May 2020
Posts: 130
Likes: 22
From: Michigan
Car: 1987 Camaro Sport Coupe
Engine: 427ci Gen 1 Small Block
Transmission: 700r4
Axle/Gears: Strange60 4.10 Eaton Truetrac
Re: C100 connector removal
You have to remove the TPA (white comb that keeps the terminals from backing out) before trying to depin it. I believe it's possible to get it out from the engine bay side but YMMV.
#4
Joined: Feb 2001
Posts: 13,364
Likes: 430
From: Cincinnati, OH
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
#6
Joined: Feb 2001
Posts: 13,364
Likes: 430
From: Cincinnati, OH
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Re: C100 connector removal

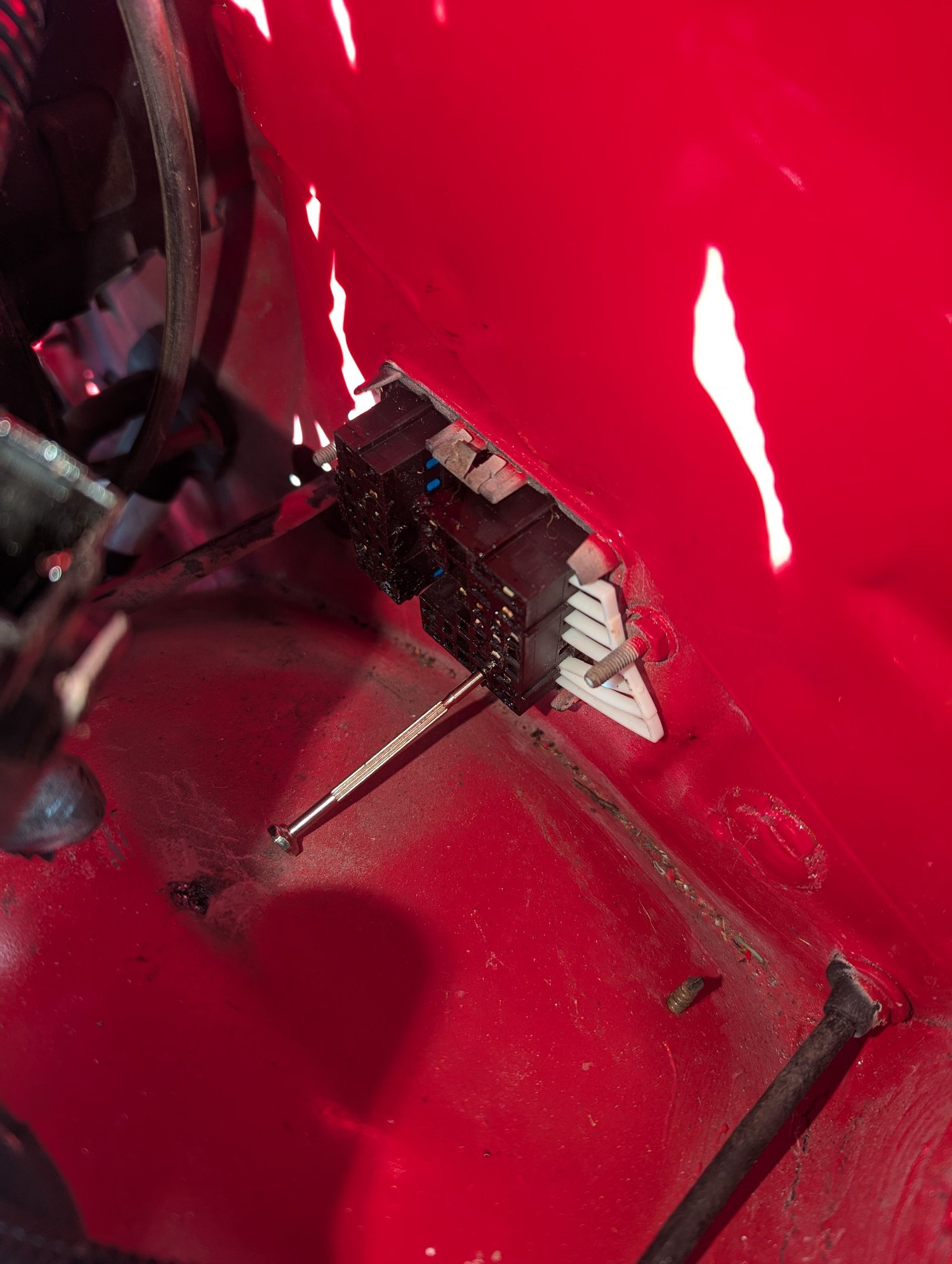

No you can but you need to disconnect the two main harnessed on the firewall side and slide up the comb shaped retainer. Then you can depin.
The following users liked this post:
T.L. (Today)
Trending Topics
#8
Member
Joined: Oct 1999
Posts: 276
Likes: 7
From: Alamogordo, NM, USA
Car: 1969 Z/28, 1983 Z/28
Engine: 350, 305 (L69)
Transmission: TKO-600, T5
Axle/Gears: 3.42, 3.73
Re: C100 connector removal
Here's a better view of the terminal:
You can see how you will have to probe from the right side of the image above, (Engine side), and bend the tab down to release the terminal.
You can see how you will have to probe from the right side of the image above, (Engine side), and bend the tab down to release the terminal.
