Cannot Fix Power Door Locks
#1
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Cannot Fix Power Door Locks
Hey guys...
I have replaced both door lock actuators yet still cannot get the power door locks to work. Is their a relay I am missing?
I have replaced both door lock actuators yet still cannot get the power door locks to work. Is their a relay I am missing?
#2
Supreme Member
Re: Cannot Fix Power Door Locks
How about the switch? have you tested that?
#4
Supreme Member
Re: Cannot Fix Power Door Locks
Are you getting A good ground to the actuators?
#5
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Right...That's where my experience ends. What device do I need to buy to test that? This is something I need to know to keep the electrical components of this car working over the years - But I am clueless.
#7
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Great, thanks so much eseibel67. Not sure I know just what the hell to do but I'll start with testing the ground wire at the actuators I guess.
Trending Topics
#8
Member
Join Date: Jun 2001
Location: new york , n.y. , USA
Posts: 397
Likes: 0
Received 10 Likes
on
10 Posts
Car: klowny1969 <-youtube 4 3rd gen vids
Engine: subscribe to klowny1969 on youtube!
Transmission: subscribe to my channel on youtube
Re: Cannot Fix Power Door Locks
You my friend are in luck!! Last night i made a two part video explaining in detail of how to troubleshoot power door lock issues..i also showed exactly where everything is located on the car..also please subscribe to my channel..thanks!! Leave me comments thanks
The following users liked this post:
zoidberg355 (02-09-2023)
#9
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Thanks so much for this, wiring diagram and videos...What more could I ask for?!
I just subscribed to your channel. Thanks again...will let you know when I tackle that project.
I just subscribed to your channel. Thanks again...will let you know when I tackle that project.
#10
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
I watched your first video and man I was so excited, I thought for sure it must be the breaker that's in the fuse box, mine doesn't also control the rear defroster (which works), and I had never checked those breakers, so I replaced them (the store only had 20AMP - mine were 30) - but it didn't do anything. Still nothing.
#11
Member
Join Date: Jun 2001
Location: new york , n.y. , USA
Posts: 397
Likes: 0
Received 10 Likes
on
10 Posts
Car: klowny1969 <-youtube 4 3rd gen vids
Engine: subscribe to klowny1969 on youtube!
Transmission: subscribe to my channel on youtube
Re: Cannot Fix Power Door Locks
ok..just take my video step by step and follow the path i outlined..get some T-pins to backprobe your connectors and use ur test light on them..good luck .. you'll find the issue, sometimes it takes some time to troubleshoot, especially with electrical gremlins.
#12
Supreme Member
iTrader: (2)
Re: Cannot Fix Power Door Locks
i replaced my power door lock relay under the kick panel and the door locks moved a bit more but not all the way. New door lock motors, white lithium greased, fuses working, etc. My last resort was to remove and degrease the door latches and regrease them.
#13
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
That was my very first idea for troubleshooting this - after checking the fuse. But I couldn't find anywhere online that sold a door lock relay. Where did you get yours?
#15
Supreme Member
iTrader: (2)
Re: Cannot Fix Power Door Locks
I had a post here about them: https://www.thirdgen.org/forums/elec...ocks-wont.html
and more: https://www.thirdgen.org/forums/elec...ck-relays.html
and more: https://www.thirdgen.org/forums/elec...locks-not.html
I can't find where I got it though.. I'll look through email receipts!
and more: https://www.thirdgen.org/forums/elec...ck-relays.html
and more: https://www.thirdgen.org/forums/elec...locks-not.html
I can't find where I got it though.. I'll look through email receipts!
#16
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Helpful posts, thanks for the info. I get no movement from the new actuators either side using my new push buttons. Fuse and breaker both good so most likely its the relay. I Google 1988 Firebird door lock relay and nothing comes up. Cant find the part anywhere. So am not too confident I will recognize it when I find it underneath the kick panel. It's like a ghost this damn thing.
#18
Supreme Member
Join Date: Jul 2009
Location: Kitchener, ON
Posts: 2,328
Likes: 0
Received 8 Likes
on
5 Posts
Car: 1988 GTA
Engine: LB9
Transmission: T5
Axle/Gears: 3.45
Re: Cannot Fix Power Door Locks
I didn't watch the videos, I'm sure they go through the proper trouble shooting procedure. But after looking at the diagram and hearing the symtoms, the first thing I would check as a shortcut is if the relay is properly grounded to the body with that mounting screw. This one might be able to be fixed for free - with a scrap of sandpaper.
Last edited by eseibel67; 03-06-2013 at 06:43 AM.
#19
Member
Join Date: Jun 2001
Location: new york , n.y. , USA
Posts: 397
Likes: 0
Received 10 Likes
on
10 Posts
Car: klowny1969 <-youtube 4 3rd gen vids
Engine: subscribe to klowny1969 on youtube!
Transmission: subscribe to my channel on youtube
Re: Cannot Fix Power Door Locks
Yes i have mapped out everything step by step..if both window actuators are not working then the first thing to do would be to check fuse and circuit breaker..but if those are good then like eseibel67 said..check ur ground to the relay..ground if i remember correctly is also shared by your power mirrors or power seats..if they work then ur ground PROBABLY is ok..then you would check to see if your relay is getting the switch signals and see if the relay is sending out the correct signals..the video details everything out..cant just throw parts at it..you need to troubleshoot
Last edited by manolis1969; 02-22-2013 at 11:52 AM.
#20
Supreme Member
iTrader: (35)
Join Date: Aug 2006
Location: Mississauga,Ont,Canada
Posts: 1,470
Likes: 0
Received 1 Like
on
1 Post
Car: 89 IROC
Engine: LSX 6.0 370, TU2 Cam, Fast intake
Transmission: T56 w/ lots of goodies
Axle/Gears: 8.8, Posi, 4.10, 31 Spline
Re: Cannot Fix Power Door Locks
hanks for the video and do you have one on wipers not working at all really? At least now I can trouble shoot my locks but im sure its the relay or something else as the fuse works
#21
Member
Join Date: Jun 2001
Location: new york , n.y. , USA
Posts: 397
Likes: 0
Received 10 Likes
on
10 Posts
Car: klowny1969 <-youtube 4 3rd gen vids
Engine: subscribe to klowny1969 on youtube!
Transmission: subscribe to my channel on youtube
Re: Cannot Fix Power Door Locks
^I will.. not yet, maybe this weekend..i made a power mirror video last night.. you can subscribe to me on youtube to be updated of when i do though (KLOWNY1969)..Thanks
#22
Supreme Member
Re: Cannot Fix Power Door Locks
Hey Rock Shoe how is your project coming along?
#23
Member
iTrader: (3)
Join Date: Mar 2009
Location: Ontario, Canada
Posts: 218
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Pontiac Trans Am
Transmission: BW T5, Hurst Short Throw Shifter
Axle/Gears: 3.70 Posi
Re: Cannot Fix Power Door Locks
I put in power locks last year. Had a similar issue with nothing from the actuators. It's always the little things that kill you. Ended up just being poor connections (grounds). Make sure the tab and screw that ground the relay behind the kick panel is sanded to bare metal. Check the connector and the pins in the harness where they connect to the actuators. Make sure the actuators are cleanly grounded to the door frame. Clean the pins that connect to the door switches. Here is a pic of the complete power lock harness.
#24
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Thanks for that picture. I just removed my kick panel and I don't see any relay mounted under there like the one in your picture. I assume it's the metal box in the top of your pic. Look at my pictures, I didn't see a relay like that. In fact, I may have all those wires hanging without the relay.
#25
Member
iTrader: (3)
Join Date: Mar 2009
Location: Ontario, Canada
Posts: 218
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Pontiac Trans Am
Transmission: BW T5, Hurst Short Throw Shifter
Axle/Gears: 3.70 Posi
Re: Cannot Fix Power Door Locks

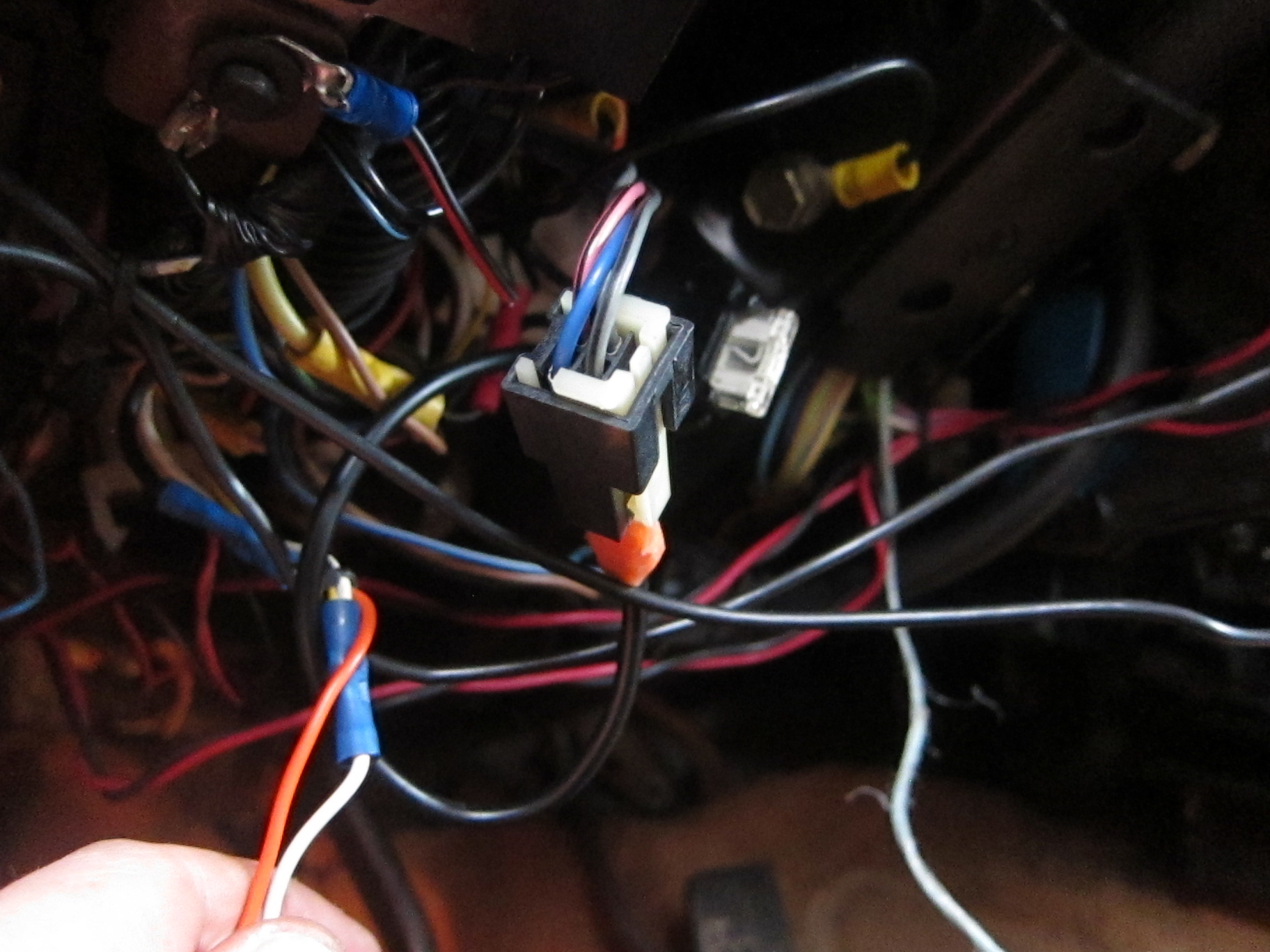

You are looking in the wrong area. It is behind the driver side kick panel. That trim where the hood release handle is. Yes the metal looking box in the picture.
#27
Member
iTrader: (3)
Join Date: Mar 2009
Location: Ontario, Canada
Posts: 218
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Pontiac Trans Am
Transmission: BW T5, Hurst Short Throw Shifter
Axle/Gears: 3.70 Posi
Re: Cannot Fix Power Door Locks
One long Philips head screw holds the panel. Pull the plastic door trim (4 screws I think). Then just pull the panel back and twist it over the hood release handle.
#28
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Got it off. Let me guess, those two plugs belong in the missing relay, that screws into that hole on the frame.
#29
Member
iTrader: (3)
Join Date: Mar 2009
Location: Ontario, Canada
Posts: 218
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Pontiac Trans Am
Transmission: BW T5, Hurst Short Throw Shifter
Axle/Gears: 3.70 Posi
Re: Cannot Fix Power Door Locks
Relay is missing. That is the correct area. There is your problem!
#31
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Scratch that, Classic Industries has them...I think...http://www.classicindustries.com/search?q=lock%20relay
#32
Member
iTrader: (3)
Join Date: Mar 2009
Location: Ontario, Canada
Posts: 218
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Pontiac Trans Am
Transmission: BW T5, Hurst Short Throw Shifter
Axle/Gears: 3.70 Posi
Re: Cannot Fix Power Door Locks
Ask around on this site, junk yards, eBay, search online. Good luck.
#33
Member
Join Date: Jun 2001
Location: new york , n.y. , USA
Posts: 397
Likes: 0
Received 10 Likes
on
10 Posts
Car: klowny1969 <-youtube 4 3rd gen vids
Engine: subscribe to klowny1969 on youtube!
Transmission: subscribe to my channel on youtube
Re: Cannot Fix Power Door Locks
Dude..i had everything laid out perfectly in my videos on where everything was and what they looked like...ugghh lol
#34
Senior Member
Join Date: Oct 2010
Location: bellingham WA
Posts: 885
Likes: 0
Received 0 Likes
on
0 Posts
Car: 85 Z28
Engine: 327
Transmission: 700R4
Axle/Gears: 3.23
Re: Cannot Fix Power Door Locks
I havent watched video yet, but will. But does it cover all years of third gens? I noticed door lock relay wasn't same for a 85.
#37
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Wow Veaceonee it looks like your actuator was moved from it's stock location (bottom right where the rivet holes are)
#38
Banned
Thread Starter
iTrader: (1)
Join Date: Nov 2012
Location: New Orleans
Posts: 80
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 350
Transmission: Auto
Axle/Gears: 3.42
Re: Cannot Fix Power Door Locks
Replaced relay with one I found on eBay and BOOM...They work like a charm! Thanks everyone for your help.
#40
Member
Join Date: Jun 2001
Location: new york , n.y. , USA
Posts: 397
Likes: 0
Received 10 Likes
on
10 Posts
Car: klowny1969 <-youtube 4 3rd gen vids
Engine: subscribe to klowny1969 on youtube!
Transmission: subscribe to my channel on youtube
Re: Cannot Fix Power Door Locks
Awesome you got it to work!
Btw i like the way that guy wired the actuator lol
Btw i like the way that guy wired the actuator lol
#41
Junior Member
Join Date: Apr 2013
Location: Tx
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Iroc-z
Engine: 350 tpi
Axle/Gears: 3.73
Re: Cannot Fix Power Door Locks
Hello can someone tell me where I can find the door lock relay I have the metal box looking one I hit the lock and unlock buttons and nothing happens. I did check for power and when I hit the lock button I get power to actuator and same for unlock but for some reason the actuator won't move. I'm guessing the relay went out please help
#42
Supreme Member
Join Date: Jan 2006
Location: Mooresville NC
Posts: 3,341
Likes: 0
Received 10 Likes
on
10 Posts
Car: LOWERED ♦ CRIMSON METALFLAKE
Engine: ► 400 KUBES ◄
Transmission: 765R4
Axle/Gears: EATON POSI 4.56
Locked Out
The relay is located behind the left shroud (foot kick panel).
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing !
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Didn’t Wreck, I Was Trying To Adjust The Wall
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing !
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Didn’t Wreck, I Was Trying To Adjust The Wall
#43
Junior Member
Join Date: Apr 2013
Location: Tx
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Iroc-z
Engine: 350 tpi
Axle/Gears: 3.73
Re: Cannot Fix Power Door Locks
Oh yes thank you. I just can't seem to find some were to buy it. When I look for it the relay the auto parts stores give me look different. Mines a silver metal rectangle with five pins. Anyone know where to find that.
#44
Supreme Member
Join Date: Jan 2006
Location: Mooresville NC
Posts: 3,341
Likes: 0
Received 10 Likes
on
10 Posts
Car: LOWERED ♦ CRIMSON METALFLAKE
Engine: ► 400 KUBES ◄
Transmission: 765R4
Axle/Gears: EATON POSI 4.56
Slam The Door
Originally Posted by d85iroc
I just can't seem to find some were to buy it.
However if your relay looks like this in silver, try a 1991 relay.
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing !
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
If We Don’t Get Cawt We Ain’t Cheatin’
#45
Junior Member
Join Date: Oct 2011
Location: Raymondville, TX
Posts: 7
Likes: 0
Received 1 Like
on
1 Post
Car: 1992 Camaro B4C 1LE
Engine: 350 L98
Re: Cannot Fix Power Door Locks
Thanks for posting your video, I subscribed to your channel....gotta work on the upside down videos though, lol...other than that great information...thank you!
Thread
Thread Starter
Forum
Replies
Last Post
1992 Trans Am
History / Originality
27
05-10-2023 07:19 PM
