cleaning up 92 SD harness.... need info
#1
cleaning up 92 SD harness.... need info
Im cleaning up and sorting through my swap harness, i need to know WHAT exactly i can cut out of this thing to clean it up, ive already cut out the two green plugs for the air diverter box ( i think thats what its called) goal is to cut out all ac and emissions junk, i traced the wires back to the butt connections and just cliped them out there, problem is i cant find a good list of conectors to really know what im looking at
if someone can show me the ac and emissions connectors and list the wire colors that would be awesome, i dont want to cut something if im not 100% sure what it is
TIA
if someone can show me the ac and emissions connectors and list the wire colors that would be awesome, i dont want to cut something if im not 100% sure what it is
TIA
#2
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,932
Likes: 0
Received 144 Likes
on
78 Posts
Car: 91 Trans Am
Engine: LSA
Transmission: T56 AWD
Axle/Gears: 8.8 4.10
Re: cleaning up 92 SD harness.... need info
http://www.austinthirdgen.org/index.php?pid=19
IMHO you need to remove the harness from the car entirely before beginning such an endeavor. When you do remove something remove it COMPLETELY. That means all the way back to the ECM or stock splice pack. Trimming and tucking back into the wire loom is asking for trouble with the sheer number you can remove
Also, I wouldnt even consider this project without a thorough knowledge of the individual connectors and functions
IMHO you need to remove the harness from the car entirely before beginning such an endeavor. When you do remove something remove it COMPLETELY. That means all the way back to the ECM or stock splice pack. Trimming and tucking back into the wire loom is asking for trouble with the sheer number you can remove
Also, I wouldnt even consider this project without a thorough knowledge of the individual connectors and functions
#3
Re: cleaning up 92 SD harness.... need info
Dont worry pocket ive been around long enough lol im already 2 steps ahead on that ive been doing it at work, I ordered the harness from thirdgenranch and decided I wanted to remove the unneccesarry things before the swap goes down, im pretty up on 12volt systems its kinda my job as an installer lol
Ive just never seen a few of these connectors on my 89, either theyre different of ive just missed them
Thanks for the link btw!
Ive just never seen a few of these connectors on my 89, either theyre different of ive just missed them
Thanks for the link btw!
#4
Member
Join Date: May 2010
Location: shalimar florida
Posts: 301
Likes: 0
Received 1 Like
on
1 Post
Car: 1992 pontiac firebird
Engine: 305 v8 lo3 201.5hp and 268.2 tq
Transmission: 4speed 700r4 corvette servo
Axle/Gears: 3.42 disk posi 4th gen rear swap
Re: cleaning up 92 SD harness.... need info
hi so i have a 92 firebird my gauge cluster quit working the other night i have no tach speedo or tach or anything on it working but my headlights work and so does the dimmer on the dash. Do i have a bad cluster when i put a fuse in it the fuse blows as soons as i turn the car on what do you think it is? if it is the cluster i can order one now
#6
Re: cleaning up 92 SD harness.... need info
so after about 6 hours of work my job is done, with a couple questions lol

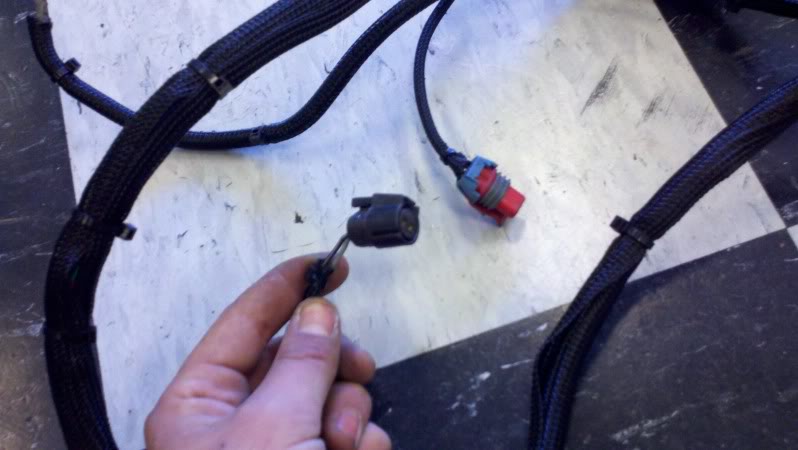

first off i already cut the ac switch that looked identical to this one with a green and black wire, came across this and was confused, can anyone identify it? it has a white and a black/white wire also wtf is that red one? ive never seen it before
And this one! it comes out by the drivers side injector leg, a purple wire and a yellow wire? It comes out of the same leg with a 2 pin weather pack with a light green wire and a dark green, factory taped together (by my foot)
And here is the finished product (kinda) The looming is the painless power braid i had laying around, i used god knows how many zip ties but im pretty satisfied with the results
first off i already cut the ac switch that looked identical to this one with a green and black wire, came across this and was confused, can anyone identify it? it has a white and a black/white wire also wtf is that red one? ive never seen it before
And this one! it comes out by the drivers side injector leg, a purple wire and a yellow wire? It comes out of the same leg with a 2 pin weather pack with a light green wire and a dark green, factory taped together (by my foot)
And here is the finished product (kinda) The looming is the painless power braid i had laying around, i used god knows how many zip ties but im pretty satisfied with the results
#7
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,932
Likes: 0
Received 144 Likes
on
78 Posts
Car: 91 Trans Am
Engine: LSA
Transmission: T56 AWD
Axle/Gears: 8.8 4.10
Re: cleaning up 92 SD harness.... need info
Ac switch looking thing is your secondary fan override switch
Red is EVAP
Yel/ppl is VSS, connector near your foot is TCC
Red is EVAP
Yel/ppl is VSS, connector near your foot is TCC
Trending Topics
#8
Re: cleaning up 92 SD harness.... need info
Ok so if im running a single fan is it needed?
Evap...shoulda figured that one ive seen it before lol
Now with the vss I thought that went inside the car.... And with the tcc I wont need that will I? Its goin.with a t5
Evap...shoulda figured that one ive seen it before lol
Now with the vss I thought that went inside the car.... And with the tcc I wont need that will I? Its goin.with a t5
#9
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,932
Likes: 0
Received 144 Likes
on
78 Posts
Car: 91 Trans Am
Engine: LSA
Transmission: T56 AWD
Axle/Gears: 8.8 4.10
Re: cleaning up 92 SD harness.... need info
No, not really necessary with dual fans either. Doesnt work without Ac anyways. I grounds out the 2nd relay whenever it detects pressure in your AC lines
VSS and rev lights are all thats needed with T5
VSS and rev lights are all thats needed with T5
#10
Re: cleaning up 92 SD harness.... need info
Rev light as in the upshift light? Where exactly is the purple and yellow supposed to connect in the engine bay? Vss is kind of an elusive topic to me since its never been.explained any better than "is senses vehicle speed" lol
#11
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,932
Likes: 0
Received 144 Likes
on
78 Posts
Car: 91 Trans Am
Engine: LSA
Transmission: T56 AWD
Axle/Gears: 8.8 4.10
Re: cleaning up 92 SD harness.... need info
Rev lights are back-up lights in your tails
VSS is on the tailshaft of your trans, Vehicle speed sensor
VSS is on the tailshaft of your trans, Vehicle speed sensor
