vss wires on firebird?

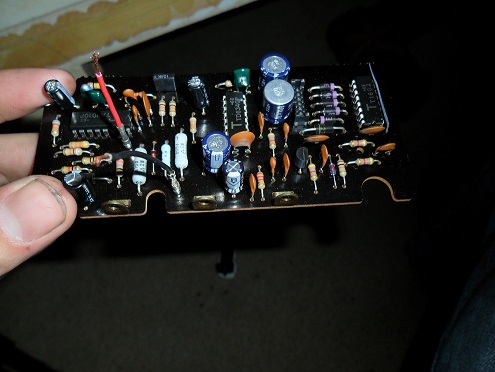

switching out my speedometer with a digital one, ive done searches but alot of the threads ive found are for camaros, im not sure how similiar or different they are. but anyways i have an 89 formula l98 , it has the electric cluster. a little off topic but ive read that the 350 engines didnt have a vss buffer, but when i was replacing my heater core i saw a yellow box w wires goin into it had a pair of yellow and purple and a bundle of other wires next to it...would someone point me in the right direction the speedo i got from cyberdyne says connect a white wire coming frm the gauge to the vss. heres a few pictures of gutted speedo and circuit board on top of it.
#3
Supreme Member
Join Date: Jan 2006
Location: Mooresville NC
Posts: 3,341
Likes: 0
Received 10 Likes
on
10 Posts
Car: LOWERED ♦ CRIMSON METALFLAKE
Engine: ► 400 KUBES ◄
Transmission: 765R4
Axle/Gears: EATON POSI 4.56
Cyberhelp
Connect the white wire to the tan wire at the yellow box.
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing!
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Dont Mind Wreckin On The Track, No Paperwork To Fill Out
.
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing!
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Dont Mind Wreckin On The Track, No Paperwork To Fill Out
.
#4
Junior Member
Thread Starter
iTrader: (1)
Join Date: Nov 2010
Location: TX
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 formula
Engine: 350
Transmission: 700r4
Axle/Gears: 3.27
Re: vss wires on firebird?

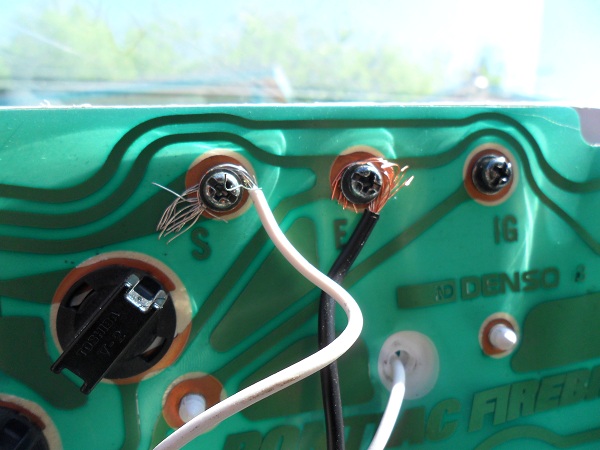

i used this website. i connected my white wire to the "S" on my circuit film. and the speed readings were everywhere. im not sure if i have to reconnect the wire or if it needs calibrating. ill take more pictures of my settup and the yellow box tomorrow after i try calibrating. http://www.hioutput.com/tech/speedo.html

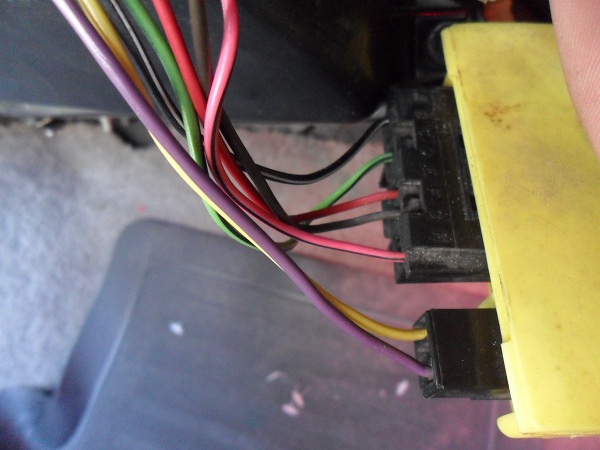

got the pictures of the box, the pins that connect to the cluster specifically pin 14, and the yellow box, w/ a circled image of a wire which i beleive might be the speedo gauge wire. i followed the "S" on circuit film down to that pin. well like i said hopefully it just needs calibrating...
got the pictures of the box, the pins that connect to the cluster specifically pin 14, and the yellow box, w/ a circled image of a wire which i beleive might be the speedo gauge wire. i followed the "S" on circuit film down to that pin. well like i said hopefully it just needs calibrating...
Last edited by kcid_n_ysup69; 04-05-2011 at 12:04 PM. Reason: pics added
#5
Junior Member
Thread Starter
iTrader: (1)
Join Date: Nov 2010
Location: TX
Posts: 24
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 formula
Engine: 350
Transmission: 700r4
Axle/Gears: 3.27
Re: vss wires on firebird?
heres a picture of the gauge, i might do away with the circuit board on top of the gauge that my red wires connected to, seems like the only purpose of it was to power the needle and mechanical odometer
