What does this wire do?
Hi everybody!

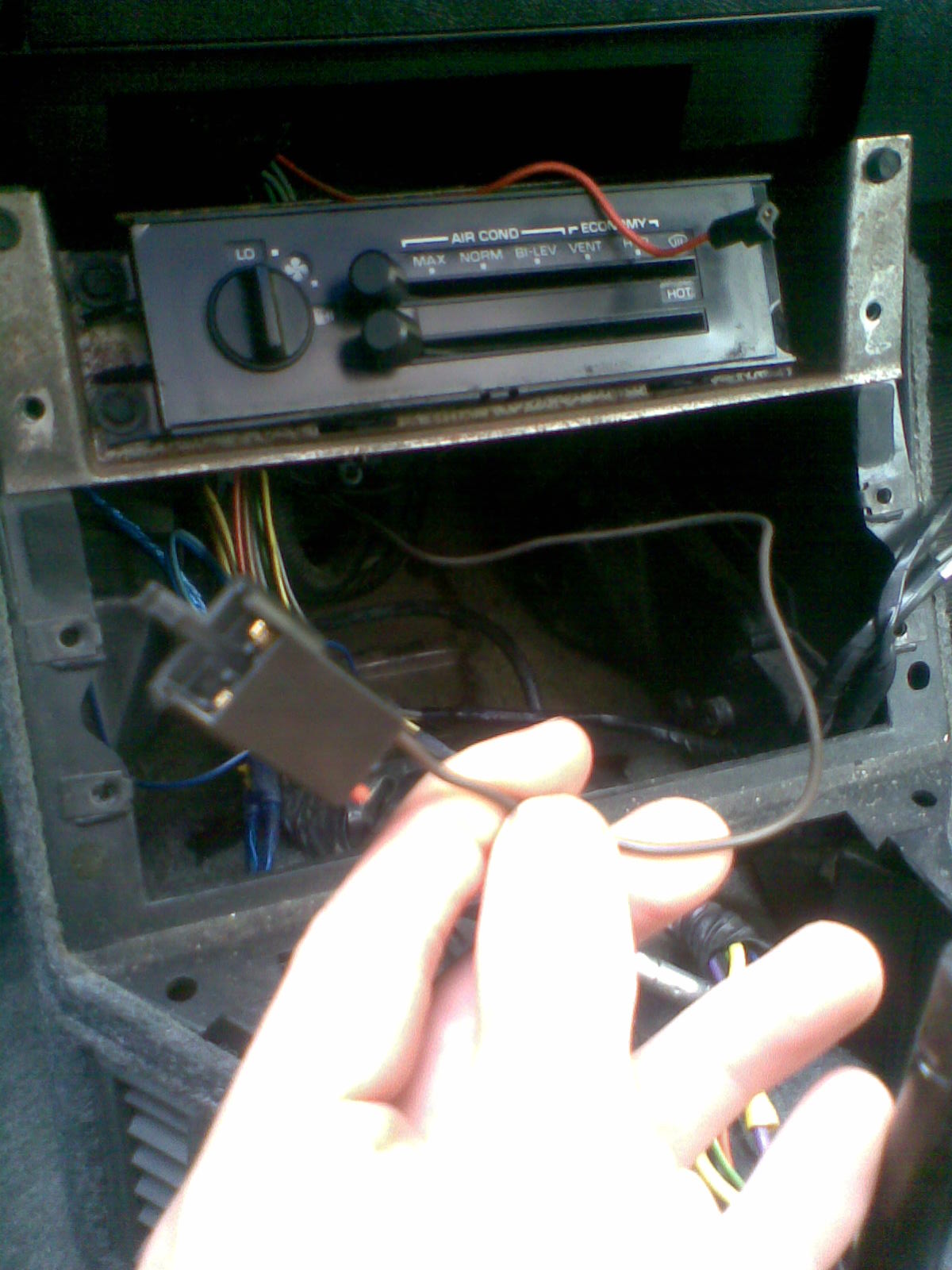

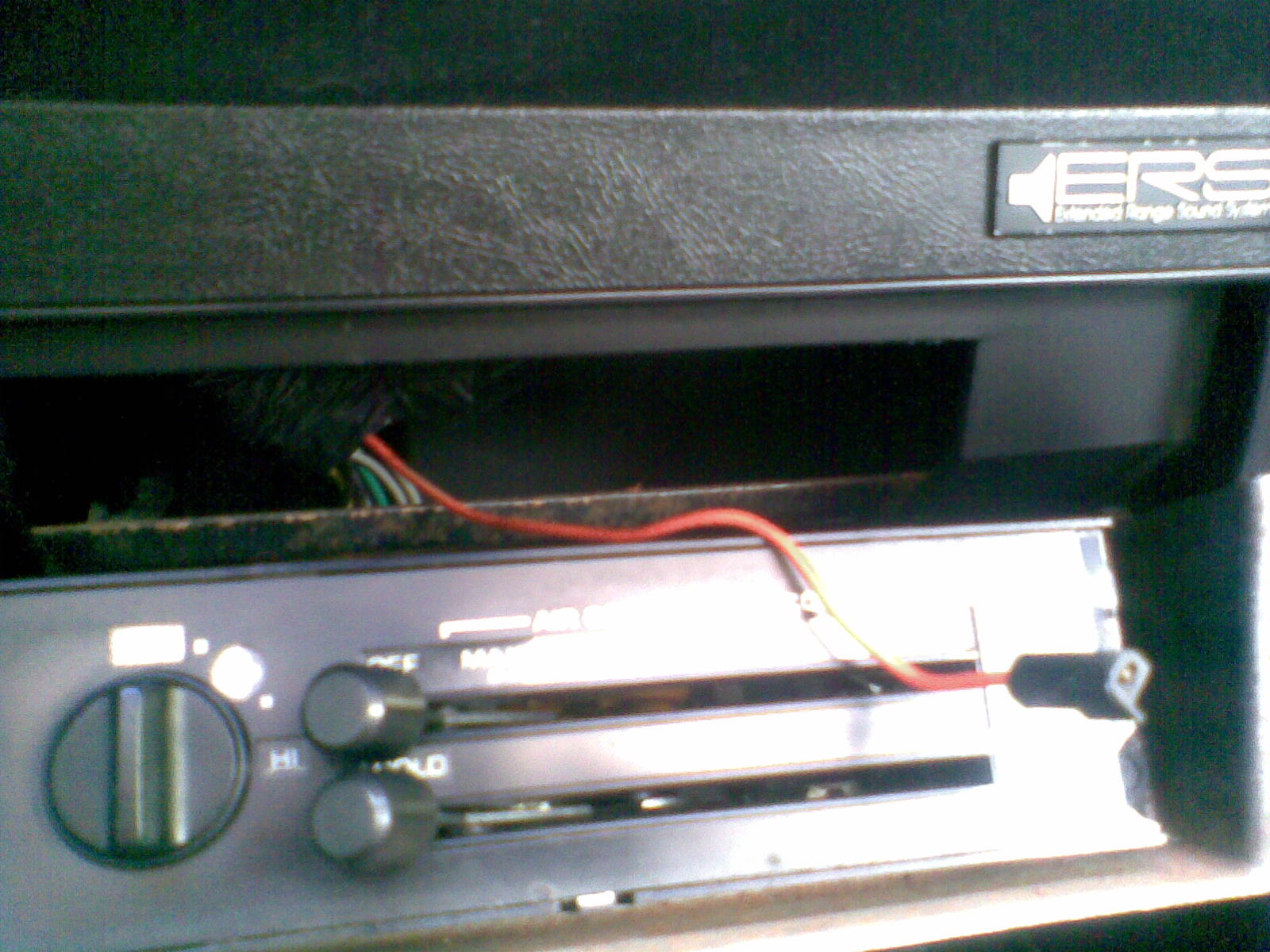

As I was installing my new cd-player in my '87 SC, I decided to remove the center column to clean it up and see how things were. I cleaned up the wiring a bit (cosmeticly speaking as no wires were removed) and discovered a severed phone charger wire and two unconnected wires. The brown wire with the large connector gives 12V+ when I turn on the headlights. As you can see it also has a severed orange wire coming out of it. The other orange wire with the small connector gives 12V+ constant. It was taped to the apparent wirebundle inside the dash.
Both wires look factory original, which means that either something is unplugged and not working properly, something has been modified, or that these are wires for options my car does not have.
Can anyone help me?
Much appreciated.
Dennis
As I was installing my new cd-player in my '87 SC, I decided to remove the center column to clean it up and see how things were. I cleaned up the wiring a bit (cosmeticly speaking as no wires were removed) and discovered a severed phone charger wire and two unconnected wires. The brown wire with the large connector gives 12V+ when I turn on the headlights. As you can see it also has a severed orange wire coming out of it. The other orange wire with the small connector gives 12V+ constant. It was taped to the apparent wirebundle inside the dash.
Both wires look factory original, which means that either something is unplugged and not working properly, something has been modified, or that these are wires for options my car does not have.
Can anyone help me?
Much appreciated.
Dennis
#2
Senior Member
iTrader: (2)
Join Date: Apr 2009
Location: Iroquois, ON
Posts: 388
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 IROC-Z
Engine: 5.7 TPI
Transmission: 700R4
Axle/Gears: Not sure, gotta look it up
Re: What does this wire do?
On the back of the OEM stereo's there's a two prong receivor for that plug. It controls the dimming of the stereo's display and constant voltage for memory etc.
http://www.installdr.com/Harnesses/GM-Wiring.pdf
or this one.
http://www.iroczone.com/images/wiring/1988wiringb.gif
http://www.installdr.com/Harnesses/GM-Wiring.pdf
or this one.
http://www.iroczone.com/images/wiring/1988wiringb.gif
#3
Senior Member
iTrader: (2)
Join Date: Jan 2007
Location: jackson new jersey
Posts: 733
Likes: 0
Received 1 Like
on
1 Post
Car: 1991 camaro vert
Engine: ls1 soon
Transmission: t56 soon
Axle/Gears: moser 12bolt 4.10 soon!
Re: What does this wire do?
so thats the wire to hook up the dimmer to!! about damn time my stereo is blinding at night
#4
Supreme Member
iTrader: (3)
Join Date: Jul 2004
Posts: 2,989
Likes: 0
Received 5 Likes
on
4 Posts
Car: '91 Z28 convertible
Engine: TPI
Transmission: T5
Axle/Gears: 3.27 posi disc
Re: What does this wire do?
Watch out, the brown wire carries full 12V with lights on, it's not from the dimmer. Its purpose is to dim the radio lights when your lights are on. It's just an on/off state.
The grey wire is from the dimmer switch and carries a variable voltage, powering the dash lightbulbs etc. That would be the wire to use for newer radios.
But read your radio's documentation first to see which input it requires.
Lou
The grey wire is from the dimmer switch and carries a variable voltage, powering the dash lightbulbs etc. That would be the wire to use for newer radios.
But read your radio's documentation first to see which input it requires.
Lou
