help identify this for me
Good one. I honostly dont know.
05-11-2009, 06:16 PM
#4
Supreme Member
iTrader: (3)
Join Date: Jul 2004
Posts: 2,989
Likes: 0
Received 5 Likes
on
4 Posts
Car: '91 Z28 convertible
Engine: TPI
Transmission: T5
Axle/Gears: 3.27 posi disc
Re: help identify this for me
Yup, a mysterious black box.

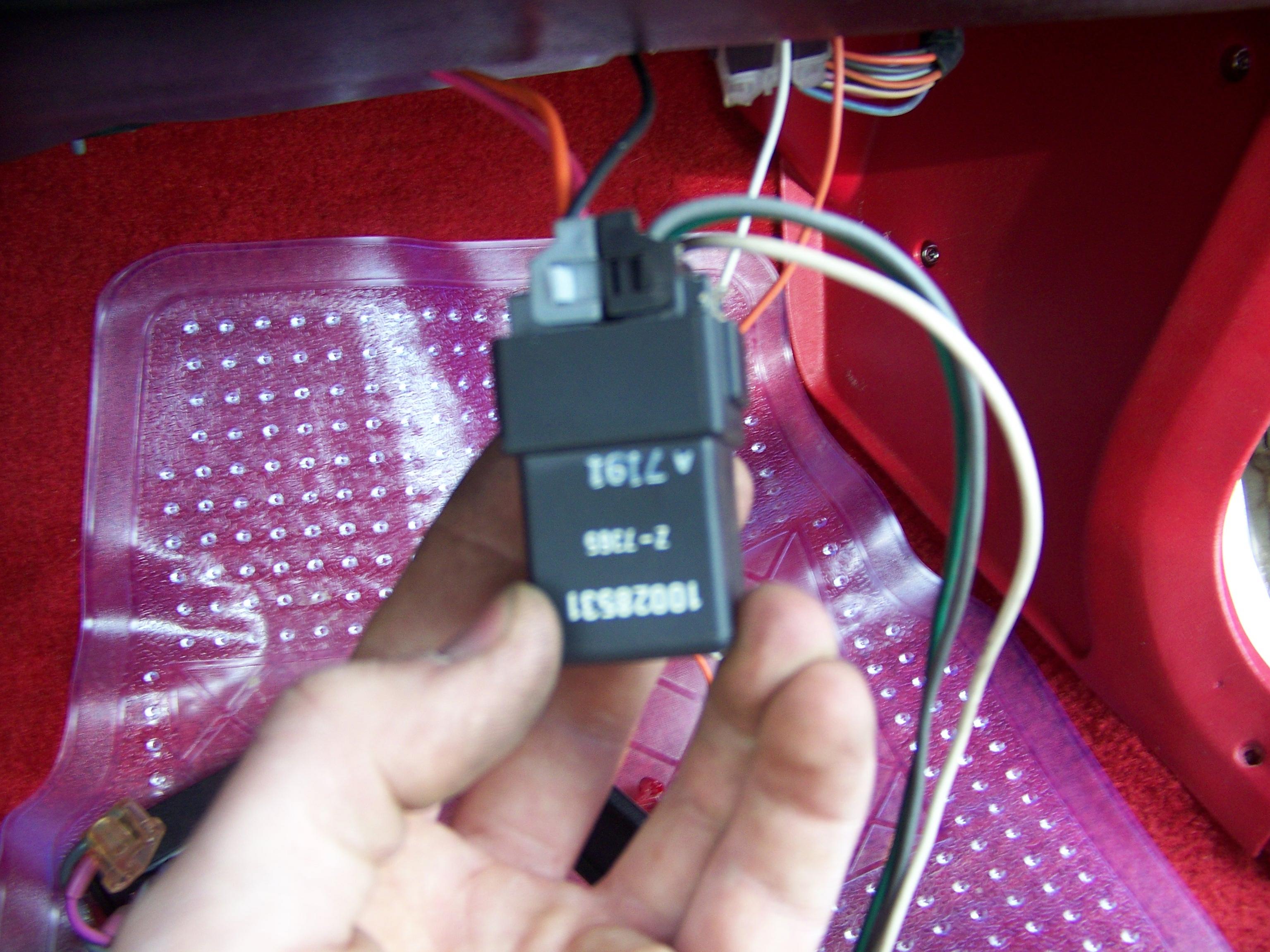

Well, it's a relay, that's a given. But what it's for, that I cannot recall. The wire colors don't ring a bell and its location on the passenger side doesn't either.
Either aftermarket or a special option for our cars (such as some optional audio equipment etc).
I'm hoping somebody will recognize this relay, I'm very curious what it is. (because I can't believe I can't identify it :-D )
Lou
Well, it's a relay, that's a given. But what it's for, that I cannot recall. The wire colors don't ring a bell and its location on the passenger side doesn't either.
Either aftermarket or a special option for our cars (such as some optional audio equipment etc).
I'm hoping somebody will recognize this relay, I'm very curious what it is. (because I can't believe I can't identify it :-D )
Lou
05-11-2009, 08:55 PM
#5
Supreme Member
iTrader: (2)
Join Date: Mar 2002
Location: West Houston, Tx.
Posts: 1,029
Likes: 0
Received 1 Like
on
1 Post
Car: 1991 Z28
Engine: 355 TPI
Transmission: 700r4
Axle/Gears: 9 bolt disc / 3:27
Re: help identify this for me
Do you Have power door locks??? If you do ... do they work from both sides... Later years of the camaro seperated the relay into two one for the right side and one for the left... Thats the best I got soooo I hope thats it cuz it will make me feel so smart... In the mean time I research the wiring diagrams I have for the year and hopefully find something....
05-11-2009, 09:00 PM
#6
05-11-2009, 09:06 PM
#7
Member
Re: help identify this for me
hope i'm right so that I can help you out, but it looks like your blower fan relay for your heater/ac fan. turn your fan on and then unplug one of the wires, see if that shuts it off for you. mine use to be there, but after i added the gps tracking device and alarm system i didn't have room for it, so i moved it to the other side of the firewall and mounted it by the battery instead. don't ask why that far forward....
Trending Topics
05-11-2009, 10:11 PM
#8
Member
Thread Starter
Join Date: Nov 2008
Location: MICHIGAN
Posts: 134
Likes: 0
Received 1 Like
on
1 Post
Car: 88 IROC
Engine: 305TPI
Transmission: T-5
Axle/Gears: 3.42
Re: help identify this for me
well, there is no alarm. the blower motor works just fine and yes power locks..(but they work from both sides, just fine) i can't seem to locate as to where the wires were heading.
05-11-2009, 10:12 PM
#9
Supreme Member
iTrader: (3)
Join Date: Jul 2004
Posts: 2,989
Likes: 0
Received 5 Likes
on
4 Posts
Car: '91 Z28 convertible
Engine: TPI
Transmission: T5
Axle/Gears: 3.27 posi disc
Re: help identify this for me
We can rule out the door lock relay (different wire colors and it's a single relay located behind the driver side kick panel) and also the high-speed blower fan relay (different colors again and that relay should be on the blower case in the engine compartment, next to the resistor pack).
The more I look at it, the more I have a feeling that it's aftermarket.

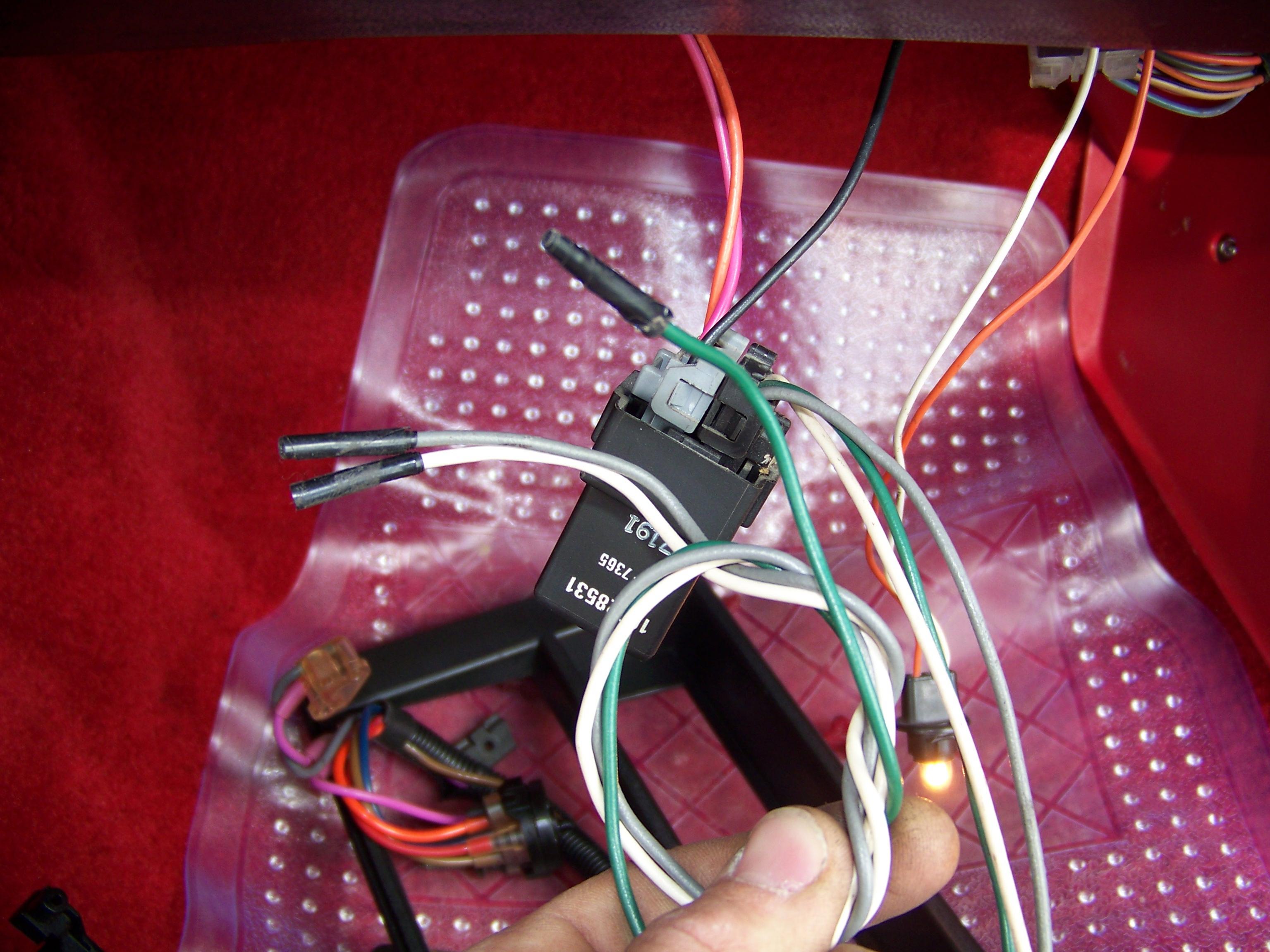

Can you trace the wires under the dash? Do they go into the wiring loom or are they attached by soldering, crimp-ons or another way to existing wires?
