EBL and knock sensor?
#1
EBL and knock sensor?
I've never had a knock sensor on my 7747. Just installed EBL and want to add the knock sensor. What sensor/ system would I need? I know little about these sensors other than some have external controllers and some have controllers in the ECM. Looks like the EBL input is pin B7?
What parts do I need to get?
What parts do I need to get?
#2
Supreme Member
Join Date: Jan 2007
Location: OC CA
Posts: 1,873
Likes: 0
Received 0 Likes
on
0 Posts
Car: 75 Beast
Engine: 383 +EBL Flash
Transmission: 700R4
Axle/Gears: 4.11 with 33"
Re: EBL and knock sensor?
Binder
7747 uses external ESC amplifier - converter module and depending on application different part numbers were specified by GM
For non roller 350
ESC module 16128261
Knock sensor 10456288
305 is different - use search on TGO
//RF
7747 uses external ESC amplifier - converter module and depending on application different part numbers were specified by GM
For non roller 350
ESC module 16128261
Knock sensor 10456288
305 is different - use search on TGO
//RF
#3
Re: EBL and knock sensor?
Thank you! Now what about wireing them up? Right now I only know where one wire goes into the ECM but not where it comes from. How does the sensor connect to the controller?
Maybe I should ask this in the electronics forum?
Thanks.
Maybe I should ask this in the electronics forum?
Thanks.
#4
Supreme Member
Join Date: Jan 2007
Location: OC CA
Posts: 1,873
Likes: 0
Received 0 Likes
on
0 Posts
Car: 75 Beast
Engine: 383 +EBL Flash
Transmission: 700R4
Axle/Gears: 4.11 with 33"
Re: EBL and knock sensor?
Binder

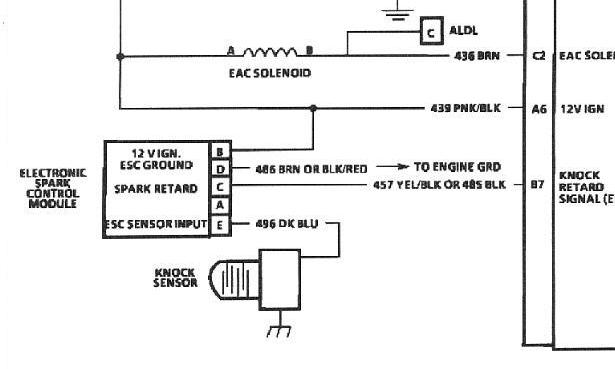

Probably more appropriate in TBI forum. Here is what you need:
//RF
Probably more appropriate in TBI forum. Here is what you need:
//RF
#5
Re: EBL and knock sensor?
Thanks again.
#6
Senior Member
Join Date: Jun 2007
Location: Akron, Ohio
Posts: 600
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 Suburban 2500
Engine: 455 Wildcat ( somewhat modified ))
Transmission: TH400 ( for now )
Axle/Gears: 4.10 ( for now )
Re: EBL and knock sensor?
Got some parts today. New sensor from GM and went to the yard to get plugs and a ESC also. I'm guessing the ESC is either expensive to buy or goes out often. Every rig I looked at had the ESC removed but one, it's a PN 16075521. I'm going to give it a try and see how/ if it works.
Thanks again.
Thanks again.
Install the thing, start the engine.
Watch the spark advance on the display. ( you did say EBL ? )
Take a socket extension long enough to reach.
Put one end on a head bolt. ( I'd pick one as far away from the sensor as you can reach )
Rap the other end of the extension with a 1 or 2 oz tap hammer a few times quick, or with the handle of a 3/8 ratchet.
Note that this sounds just like real ignition knock !
You should see the timing retard, and possibly the engine will slow down if you do this
at low idle. Might even stall. If you see timing retard, it's working.
#7
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,432
Likes: 0
Received 225 Likes
on
211 Posts
Car: check
Engine: check
Transmission: check
Re: EBL and knock sensor?
RBob.
Trending Topics
#8
Re: EBL and knock sensor?
On another (probably) unrelated note, my timing at idle seems to jump around a bit. Jumps between about 18 and 22 deg at a fairly steady idle. Idle moves a bit too but not enough to go between cells. Commanded idle SA is 20.04. I think the timing is moving the idle and not visa versa. I noticed this before with my timing light on my old ECM but it was hard to be sure but now I can see the timing on the data log, it's definately moving. All components are recently new. Small cap HEI style dist. No knock at idle. No commanded retard that I can tell.
Is it possible that this is normal? What could possibly be the cause? I think this may be a hardware issue but I'm open to anything.
Hmmmmm?
Is it possible that this is normal? What could possibly be the cause? I think this may be a hardware issue but I'm open to anything.
Hmmmmm?
#9
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,432
Likes: 0
Received 225 Likes
on
211 Posts
Car: check
Engine: check
Transmission: check
Re: EBL and knock sensor?
There is idle stabilization SA. Can zero out the SA tables (2) and see if that helps the idle. Stock engines can use more stabilization SA then modified ones. Just cutting the amount of SA in half may help smooth the idle.
RBob.
RBob.
#11
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,432
Likes: 0
Received 225 Likes
on
211 Posts
Car: check
Engine: check
Transmission: check
Re: EBL and knock sensor?
The Idle state SA is to have a set timing for idle. This prevents the SA from moving around due to MAP & RPM fluctuations. Can be helpful. There is also idle stabilization SA. This removes timing when the idle is too high, and adds timing when the idle is too low.
Look for the 'Spark Advance, Idle Speed Control' tables in the cal doc. There are four tables, 2 for SA and 2 for MAP compensation. You can zero out the 2 SA tables to eliminate idle stabilization SA.
SA - Idle Low Compensation
SA - Idle High Compensation
RBob.
Look for the 'Spark Advance, Idle Speed Control' tables in the cal doc. There are four tables, 2 for SA and 2 for MAP compensation. You can zero out the 2 SA tables to eliminate idle stabilization SA.
SA - Idle Low Compensation
SA - Idle High Compensation
RBob.
#12
Re: EBL and knock sensor?
Good progress. I zeroed out the two tables, SA - Idle Low Compensation SA - Idle High Compensation and tured off the table, Idle state SA (it was active already). SA is now nice and smoothe in the data log.
Idle unfortunately didn't get much better. Now the only thing that moves around at idle is MAP, it only moves like 3 points. Adjusted the table MAP- normal/ transient filter to have more filter in the normal, I turned it all the way down to 5. It looks to me like this filter is basically only for idle? It did mellow out the MAP a bit but still not there. I also tried Nalpha mode. It seems that Nalpha always wants to cause a slow surge. Goes lean then comes back. I didn't have data to put into the MAP table for Nalpha so I just tried to put in values at idle. It's going to take some experimenting to figure Nalpha out so I turned it back off.
Making progress and idle isn't too bad so I'm going to leave it for now and move on to Main VE and then main SA tuning. Now if I could only get my LM-1 to work right......
Idle unfortunately didn't get much better. Now the only thing that moves around at idle is MAP, it only moves like 3 points. Adjusted the table MAP- normal/ transient filter to have more filter in the normal, I turned it all the way down to 5. It looks to me like this filter is basically only for idle? It did mellow out the MAP a bit but still not there. I also tried Nalpha mode. It seems that Nalpha always wants to cause a slow surge. Goes lean then comes back. I didn't have data to put into the MAP table for Nalpha so I just tried to put in values at idle. It's going to take some experimenting to figure Nalpha out so I turned it back off.
Making progress and idle isn't too bad so I'm going to leave it for now and move on to Main VE and then main SA tuning. Now if I could only get my LM-1 to work right......
#13
Re: EBL and knock sensor?
Finally got a chance to do some driving/ tuning today. Tuning fuel open loop with locked BLM-INT's 128. This put my fuel to the "open loop vs AFR and RPM" table which is farely rich throughout. Went on to try some timing adjustment and found than even at max advance of 41.81 deg prety much everywhere but idle I still got little to no knock, just enough to know that the sensor is working. Is it possible that the fuel is too rich to allow knock? Should I retune fuel to stoich and try timing again then set fuel?
#14
Re: EBL and knock sensor?
I know the goal isn't to get it to knock but it seems the timing adjustments just aren't having much if any effect on performance, like it doesn't make a difference.....
