LS1 coil wiring
hey all,

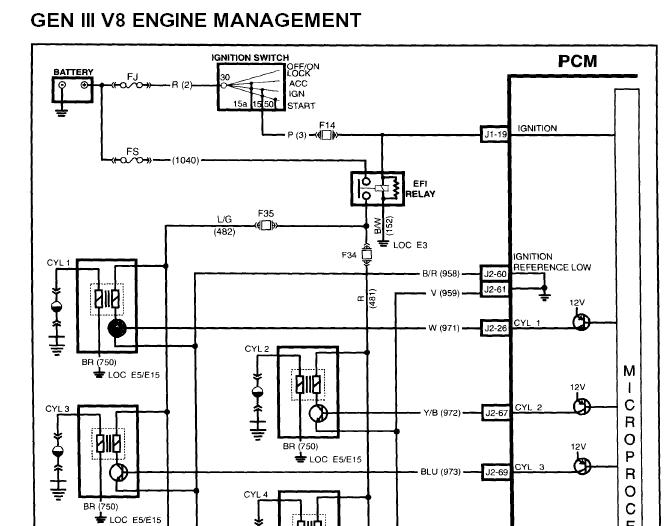

I was just wondering if anyone has any experience wiring the LS1 coils. From this schematic it looks like the coil is sent a 12V signal from the ecm, that uses a coil driver (transistor) to charge the primary side of the coil.
I seem to remember someone ( think it was Rbob) that said the signal was a 5V signal. Is it possible to send either a 5V or a 12V signal to these coils?
I guess I am just curious to see if anyone has any literature on these coils.
thanks a bunch
-Rob
I was just wondering if anyone has any experience wiring the LS1 coils. From this schematic it looks like the coil is sent a 12V signal from the ecm, that uses a coil driver (transistor) to charge the primary side of the coil.
I seem to remember someone ( think it was Rbob) that said the signal was a 5V signal. Is it possible to send either a 5V or a 12V signal to these coils?
I guess I am just curious to see if anyone has any literature on these coils.
thanks a bunch
-Rob
#2
Supreme Member
Join Date: Jun 2002
Location: great lakes
Posts: 1,787
Likes: 0
Received 0 Likes
on
0 Posts
its a 5volt signal. the coil transistor also has some smart logic in it. it will hold the charge for x amount of time. in fact its only looking for a firing signal. it pretty much handles dwell iself. its a pretty trick pony.
