3 bar patch for the 58/60 code
While not for the weak of heart, or the novice, here's a code patch, for when using source code.
While not perfect this patch will get you close on converting the 58 code from 2 bar to 3 bar.
The changes are
1)
Change:
LDAB #135 ; load accum A
To,
LDAB #211 ; load accum A
2)
Change:
LDAB #200 ; load accum B
MUL ; Multiply 8 by 8
ADCA #8 ; Add with carry to A
To,
;LDAB #200 ; load accum B
;MUL ; Multiply 8 by 8
;ADCA #8 ; Add with carry to A
So when your done, the Source Code would look like:
LF56D: STAA L00BC ; Turbo Boost Pressure
; Kpa=n/1.28 Store Accum A
LDAA L003F ; filtered map adc term load accum A
LDAB #211 ;135 ; load accum A
MUL ; Multiply 8 by 8
SUBD #400 ; Subtract Memory from A
BCC LF57B ; Branch if Carry Clear
CLRA ; Clear A
CLRB ; Clear B
LF57B: LSLD ; Logical Shift Left Double
BCS LF581 ; Branch if carry set
LSLD ; Logical Shift Left Double
BCC LF583 ; Branch if Carry Clear
LF581: LDAA #255 ; load accum A
LF583: STAA L003D ; MAP Store Accum A
LDAA L003F ; filtered map adc term load accum A
;LDAB #200 ; load accum B
;MUL ; Multiply 8 by 8
;ADCA #8 ; Add with carry to A
STAA L003A ; map term for BPW Store Accum A
RTS ; Return from Subroutine
For educational purposes only, ie for understanding automotive engine management systems.
No warranty expressed or implied.
Use at your own risk.
If your not totally confident on your code ability do not attempt to try this.
Not legal for highway use.
Again, this is for the folks that are trying to get serious about understanding Source Code, and engine management systems.
While not perfect this patch will get you close on converting the 58 code from 2 bar to 3 bar.
The changes are
1)
Change:
LDAB #135 ; load accum A
To,
LDAB #211 ; load accum A
2)
Change:
LDAB #200 ; load accum B
MUL ; Multiply 8 by 8
ADCA #8 ; Add with carry to A
To,
;LDAB #200 ; load accum B
;MUL ; Multiply 8 by 8
;ADCA #8 ; Add with carry to A
So when your done, the Source Code would look like:
LF56D: STAA L00BC ; Turbo Boost Pressure
; Kpa=n/1.28 Store Accum A
LDAA L003F ; filtered map adc term load accum A
LDAB #211 ;135 ; load accum A
MUL ; Multiply 8 by 8
SUBD #400 ; Subtract Memory from A
BCC LF57B ; Branch if Carry Clear
CLRA ; Clear A
CLRB ; Clear B
LF57B: LSLD ; Logical Shift Left Double
BCS LF581 ; Branch if carry set
LSLD ; Logical Shift Left Double
BCC LF583 ; Branch if Carry Clear
LF581: LDAA #255 ; load accum A
LF583: STAA L003D ; MAP Store Accum A
LDAA L003F ; filtered map adc term load accum A
;LDAB #200 ; load accum B
;MUL ; Multiply 8 by 8
;ADCA #8 ; Add with carry to A
STAA L003A ; map term for BPW Store Accum A
RTS ; Return from Subroutine
For educational purposes only, ie for understanding automotive engine management systems.
No warranty expressed or implied.
Use at your own risk.
If your not totally confident on your code ability do not attempt to try this.
Not legal for highway use.
Again, this is for the folks that are trying to get serious about understanding Source Code, and engine management systems.
#2
Supreme Member
Join Date: Aug 2001
Location: Costal Alabama
Posts: 2,136
Likes: 0
Received 1 Like
on
1 Post
Car: 1989 Iroc-Z
Engine: 350, ZZ4 equivalent
Transmission: Pro-Built Road Race 700R4
Axle/Gears: 3.23 Dana 44
Re: 3 bar patch for the 58/60 code
Originally posted by Grumpy
For educational purposes only, ie for understanding automotive engine management systems.
No warranty expressed or implied.
Use at your own risk.
If your not totally confident on your code ability do not attempt to try this.
Not legal for highway use.
For educational purposes only, ie for understanding automotive engine management systems.
No warranty expressed or implied.
Use at your own risk.
If your not totally confident on your code ability do not attempt to try this.
Not legal for highway use.
#3
Member
Join Date: Nov 2003
Location: Ft. Leavenworth, KS
Posts: 462
Likes: 0
Received 1 Like
on
1 Post
Car: 83 TA, 89 TTA, others
Engine: ZZ4 TPI, LC2 turbo v6
Transmission: several, mostly broken
Re: Re: 3 bar patch for the 58/60 code
Originally posted by 89 Iroc Z
You just took all the fun away,
You just took all the fun away,
Why am I imagining the sound of turbos spooling?
Thanks Bruce!!!!!!!!
#6
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: In reality
Posts: 7,554
Likes: 0
Received 1 Like
on
1 Post
Car: An Ol Buick
Engine: Vsick
Transmission: Janis Tranny Yank Converter
Originally posted by jnjspdshop
Where is a good place to start to learn about source code??
Where is a good place to start to learn about source code??
Grab a copy of the 60 code, and you can use that as a model.
And there's some partically commented stuff for the common masks on line. So initially it's hunt, hunt, hunt...
Just no easy way, to get into it that I know of.
Trending Topics
#8
Junior Member
Join Date: Mar 2000
Location: Western New York
Posts: 65
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Grumpy
Do a search here. And then just start asking questions, as you begin bumping your head against the wall.
Grab a copy of the 60 code, and you can use that as a model.
And there's some partically commented stuff for the common masks on line. So initially it's hunt, hunt, hunt...
Just no easy way, to get into it that I know of.
Do a search here. And then just start asking questions, as you begin bumping your head against the wall.
Grab a copy of the 60 code, and you can use that as a model.
And there's some partically commented stuff for the common masks on line. So initially it's hunt, hunt, hunt...
Just no easy way, to get into it that I know of.
#9
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: In reality
Posts: 7,554
Likes: 0
Received 1 Like
on
1 Post
Car: An Ol Buick
Engine: Vsick
Transmission: Janis Tranny Yank Converter
Originally posted by jnjspdshop
Maybe I didn't put that right. First where can I grab a copy of the 60 code? I already have a copy of a 58 code from Craig Moates. I have taken some computer science courses in college, so I am vaughly familiar with source code. What program do I use to edit an compile the source. Also does this source code once compiled generate a .bin file??
Maybe I didn't put that right. First where can I grab a copy of the 60 code? I already have a copy of a 58 code from Craig Moates. I have taken some computer science courses in college, so I am vaughly familiar with source code. What program do I use to edit an compile the source. Also does this source code once compiled generate a .bin file??
#10
Member
Join Date: Nov 2001
Location: Baltimore,Md USA
Posts: 296
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 Iroc Hardtop
Originally posted by jnjspdshop
What program do I use to edit an compile the source. Also does this source code once compiled generate a .bin file??
What program do I use to edit an compile the source. Also does this source code once compiled generate a .bin file??
im kinda a newbie so pleaz dont kill me
#11
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: In reality
Posts: 7,554
Likes: 0
Received 1 Like
on
1 Post
Car: An Ol Buick
Engine: Vsick
Transmission: Janis Tranny Yank Converter
Originally posted by stevver84Z
i am also a bit curious about that too... i've been on here looking around for a while now i i have never really understood how to modify the code. i think i understand that a "hac" is the code behind the definition file? right?? i just dont know how to modify it
im kinda a newbie so pleaz dont kill me
i am also a bit curious about that too... i've been on here looking around for a while now i i have never really understood how to modify the code. i think i understand that a "hac" is the code behind the definition file? right?? i just dont know how to modify it
im kinda a newbie so pleaz dont kill me
Compling, or assembling it is another. In this case, you can change the code, and the way the code actually runs. Add routines, remove routines, change table sizes, you have the power to so about anything you want when you have the actual source code.
*Hacs* around here means having a disassembly of the code. It might be just the calibration area. It might be the whole code, and it may or may not be commented.
Commented Source Code, is having an Human version of what the ecm is doing, in full detail. When you look at the .bin file all your seeing is the machine code.
HTH
#12
Supreme Member
Join Date: Feb 2000
Location: Johnstown, Ohio
Posts: 1,416
Likes: 0
Received 0 Likes
on
0 Posts
Car: 84 Z28
Engine: 355 (fastburn heads, LT4 HOT cam)
Transmission: 700R4
Axle/Gears: 9-bolt, 3.27
Originally posted by jnjspdshop
Where is a good place to start to learn about source code??
Where is a good place to start to learn about source code??
Here's the thread:
Source Code For Dummies
#13
Member
Join Date: Nov 2001
Location: Baltimore,Md USA
Posts: 296
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 Iroc Hardtop
Originally posted by Grumpy
There are several ways to work with computer code. One is the *normal* way of using an editor and just getting in to change the calibration data.
Compling, or assembling it is another. In this case, you can change the code, and the way the code actually runs. Add routines, remove routines, change table sizes, you have the power to so about anything you want when you have the actual source code.
*Hacs* around here means having a disassembly of the code. It might be just the calibration area. It might be the whole code, and it may or may not be commented.
Commented Source Code, is having an Human version of what the ecm is doing, in full detail. When you look at the .bin file all your seeing is the machine code.
HTH
There are several ways to work with computer code. One is the *normal* way of using an editor and just getting in to change the calibration data.
Compling, or assembling it is another. In this case, you can change the code, and the way the code actually runs. Add routines, remove routines, change table sizes, you have the power to so about anything you want when you have the actual source code.
*Hacs* around here means having a disassembly of the code. It might be just the calibration area. It might be the whole code, and it may or may not be commented.
Commented Source Code, is having an Human version of what the ecm is doing, in full detail. When you look at the .bin file all your seeing is the machine code.
HTH
I guess my next question is how do you view the data other than through winbin or tunercat??
i have a "hac" labled "anht_hac.pdf" and it basically shows a line of letters numbers and symbols (which i believe is hexadecimal?? right??) and after that a line which explains what the hex means. not that i am going to cause i'm still very new to this, but if i were to modify that how would i go about doing so??
ps... thanks for your patience
#14
Supreme Member
Join Date: Nov 2003
Location: STL area
Posts: 1,399
Likes: 0
Received 0 Likes
on
0 Posts
Mark Mansur has a great web page that helped.... http://www.supportfitness.com/mark/t...eatingECUs.htm
Last edited by 11sORbust; 07-06-2004 at 12:45 PM.
#16
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,432
Likes: 0
Received 225 Likes
on
211 Posts
Car: check
Engine: check
Transmission: check
Originally posted by stevver84Z
ok so just so i get this straight, the 'normal' way of changing the data is using a program such as tunercat or winbin, right?
I guess my next question is how do you view the data other than through winbin or tunercat??
i have a "hac" labled "anht_hac.pdf" and it basically shows a line of letters numbers and symbols (which i believe is hexadecimal?? right??) and after that a line which explains what the hex means. not that i am going to cause i'm still very new to this, but if i were to modify that how would i go about doing so??
ps... thanks for your patience
ok so just so i get this straight, the 'normal' way of changing the data is using a program such as tunercat or winbin, right?
I guess my next question is how do you view the data other than through winbin or tunercat??
i have a "hac" labled "anht_hac.pdf" and it basically shows a line of letters numbers and symbols (which i believe is hexadecimal?? right??) and after that a line which explains what the hex means. not that i am going to cause i'm still very new to this, but if i were to modify that how would i go about doing so??
ps... thanks for your patience
The other method is to alter the source code and reassemble the code each time. The only time this method should be used is when code changes are also being made to that MASK/bin. Otherwise there is no benefit.
Once source code is present and this actual code is being changed, it is almost a necessity to update the source code and reassemble even for calibration changes.
The reason for this is that the calibration addresses get changed with a lot of the code changes. This would require the definition file (ECU, TDF) to be updated every time a code change was made (not always, but a lot).
When working with source code it becomes less error prone to also make all calibration changes directly to the source code and reassemble.
RBob.
#17
Supreme Member
Join Date: Feb 2000
Location: Johnstown, Ohio
Posts: 1,416
Likes: 0
Received 0 Likes
on
0 Posts
Car: 84 Z28
Engine: 355 (fastburn heads, LT4 HOT cam)
Transmission: 700R4
Axle/Gears: 9-bolt, 3.27
Some people make changes with a hex editor, after they have a good commented HAC to go by. The BIG down-side to this is that a bin editor will calculate things into a real-world value for you. But, if you have a heavily modified source code, it may be the best way....
EDIT: The down-side would be a down-side of using a hex editor, the real world values is a nice thing of the bin editor....
EDIT: The down-side would be a down-side of using a hex editor, the real world values is a nice thing of the bin editor....
Last edited by JP84Z430HP; 07-06-2004 at 09:37 PM.
#18
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Originally Posted by Grumpy
While not for the weak of heart, or the novice, here's a code patch, for when using source code.
While not perfect this patch will get you close on converting the 58 code from 2 bar to 3 bar.
While not perfect this patch will get you close on converting the 58 code from 2 bar to 3 bar.
Could you post what 3-bar MAP sensor that this was intented for?
You wouldn't happen to have the MAP A/D count value for the MAP around sea level (engine off)? That would help a bunch.
Anyone have a GM 3-bar with a MAP A/D count value with the MAP at around 100KPA that they could post?
#19
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: In reality
Posts: 7,554
Likes: 0
Received 1 Like
on
1 Post
Car: An Ol Buick
Engine: Vsick
Transmission: Janis Tranny Yank Converter

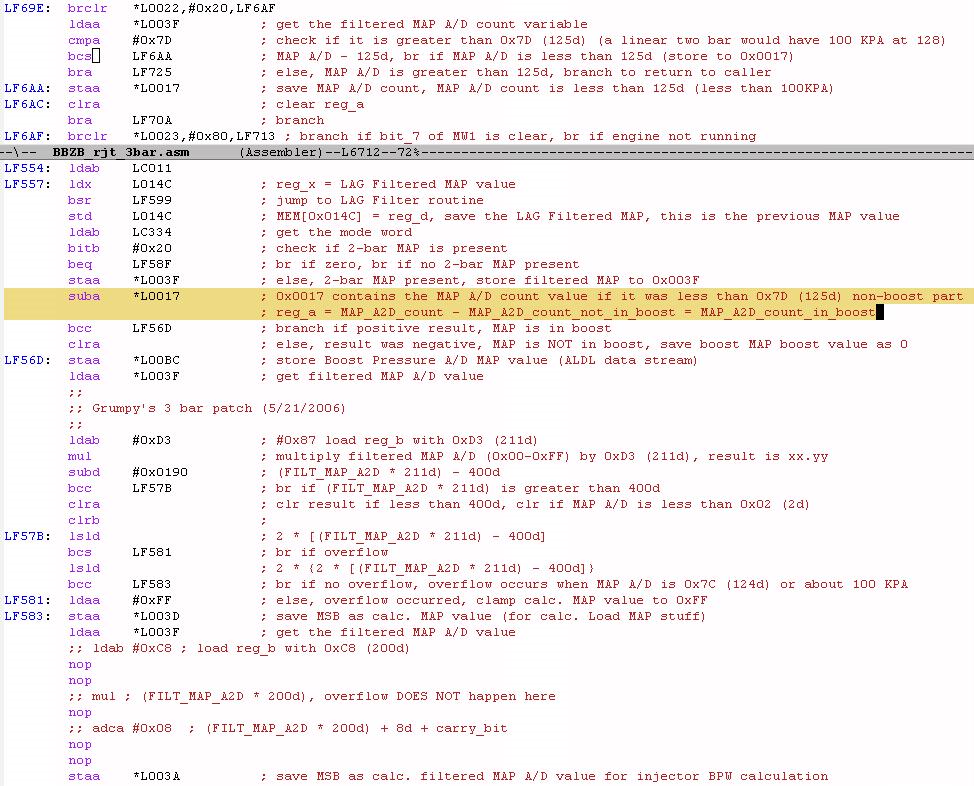

Originally Posted by junkcltr
I tried it. It doesn't work with the 3-bar MAP sensor I have. I need use a cal. table to convert the MAP A/D value before storing it to 0x0039. That is, I have to linearize it before letting the BBZB code see the A/D value.
Could you post what 3-bar MAP sensor that this was intented for?
You wouldn't happen to have the MAP A/D count value for the MAP around sea level (engine off)? That would help a bunch.
Anyone have a GM 3-bar with a MAP A/D count value with the MAP at around 100KPA that they could post?
Could you post what 3-bar MAP sensor that this was intented for?
You wouldn't happen to have the MAP A/D count value for the MAP around sea level (engine off)? That would help a bunch.
Anyone have a GM 3-bar with a MAP A/D count value with the MAP at around 100KPA that they could post?
Why not save yourself the trouble, and just use the sensor spec'd?.
Dunno how to *see* the A/D count.
#20
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Originally Posted by Grumpy
Why not save yourself the trouble, and just use the sensor spec'd?.
Originally Posted by Grumpy
Dunno how to *see* the A/D count.
The ALDL byte 30 is the raw MAP A/D count if the ALDL scanner does not mess with it. Usually they convert it to KPA or PSI or something. I am using TunerPro and recording just the straight MAP A/D count value (multiply by 1, no offset). The $58 code reports the raw MAP A/D value that was read (mem location 0x0039).
#21
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
There is a problem with this patch even with a linear 3-bar MAP sensor. I highlighted the problem and the split the screen to show why the problem happens. Take a look and let me know what you think. It is due to the 0x0017 value still being loaded for a 2-bar MAP sensor and not a 3-bar MAP sensor.
With the sensor I am using I have to do a lookup table first. I posted this for the guys using the GM 3-bar MAP sensor. I could be in error here, but I think one piece of code was over looked.
With the sensor I am using I have to do a lookup table first. I posted this for the guys using the GM 3-bar MAP sensor. I could be in error here, but I think one piece of code was over looked.
#22
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: In reality
Posts: 7,554
Likes: 0
Received 1 Like
on
1 Post
Car: An Ol Buick
Engine: Vsick
Transmission: Janis Tranny Yank Converter
Originally Posted by junkcltr
I would like to ECM correlate the intake boost to the exhaust backpressure.
#23
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Originally Posted by Grumpy
In an oem type set-up you might be looking at as much as a 3:1 ratio, of back pressure to boost. Unless, you're running an extremely large turbo, it's unlikely that you get anywhere's near 1:1. The imports with the 700 RPM power band, can acheive cross-over (less then 1:1), but it can kill the drivibility, for a daily driver.
#24
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: In reality
Posts: 7,554
Likes: 0
Received 1 Like
on
1 Post
Car: An Ol Buick
Engine: Vsick
Transmission: Janis Tranny Yank Converter
Originally Posted by junkcltr
I would like to know the exhaust pressure because it may change what cam I will put in the engine.
#25
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Originally Posted by Grumpy
Your the first person, I've seen even mention that. There are so many bigger fish to fry, that the EBP to Boost ratio is about trivial in comparison. But, whatever floats your bubble.
I have been thinking of trying a different cam with a smaller exhaust lobe and therefore less overlap with a constant LSA. For some reason I got this thing about needing huge downpipes for less turbine pressure differential, and a thing about cam overlap due to EBP vs. intake pressure. I think I gain a fair amount of HP by getting it right/better.
OK, back to understanding the 3-bar patch you wrote. Thank you for putting it out there. It is a great starting point for me and gives motivation to do this stuff.
All of this is correct as far as I can see. Theoretically the multiply of 211d that was used should have been 204d (but it is close enough).
Originally Posted by Grumpy
LF56D: STAA L00BC ; Turbo Boost Pressure
; Kpa=n/1.28 Store Accum A
LDAA L003F ; filtered map adc term load accum A
LDAB #211 ;135 ; load accum A
MUL ; Multiply 8 by 8
SUBD #400 ; Subtract Memory from A
BCC LF57B ; Branch if Carry Clear
CLRA ; Clear A
CLRB ; Clear B
LF57B: LSLD ; Logical Shift Left Double
BCS LF581 ; Branch if carry set
LSLD ; Logical Shift Left Double
BCC LF583 ; Branch if Carry Clear
LF581: LDAA #255 ; load accum A
LF583: STAA L003D ; MAP Store Accum A
LDAA L003F ; filtered map adc term load accum A
; Kpa=n/1.28 Store Accum A
LDAA L003F ; filtered map adc term load accum A
LDAB #211 ;135 ; load accum A
MUL ; Multiply 8 by 8
SUBD #400 ; Subtract Memory from A
BCC LF57B ; Branch if Carry Clear
CLRA ; Clear A
CLRB ; Clear B
LF57B: LSLD ; Logical Shift Left Double
BCS LF581 ; Branch if carry set
LSLD ; Logical Shift Left Double
BCC LF583 ; Branch if Carry Clear
LF581: LDAA #255 ; load accum A
LF583: STAA L003D ; MAP Store Accum A
LDAA L003F ; filtered map adc term load accum A
The "cmpa #0x7D" is for a 2-bar map and should be changed for the 3-bar map. This will cause ALDL byte 45 (Boost pressure) to read off a bit for some boost values.
Code:
LF69E: brclr *L0022,#0x20,LF6AF ldaa *L003F ; get the filtered MAP A/D count variable cmpa #0x7D ; check if it is greater than 0x7D (125d) (a linear two bar would have 100 KPA at 128) bcs LF6AA ; MAP A/D - 125d, br if MAP A/D is less than 125d (store to 0x0017) bra LF725 ; else, MAP A/D is greater than 125d, branch to return to caller LF6AA: staa *L0017 ; save MAP A/D count, MAP A/D count is less than 125d (less than 100KPA)
Now the BIG thing. This part of the patch has a problem ONLY IF it is not accounted for with the VE tables.
Originally Posted by Grumpy
;LDAB #200 ; load accum B
;MUL ; Multiply 8 by 8
;ADCA #8 ; Add with carry to A
;MUL ; Multiply 8 by 8
;ADCA #8 ; Add with carry to A
The 3-bar bin uses the equation: MAP_FOR_BPW = MAP_A2D_COUNT. That is it, no real equation due to it being commented out.
Ok, let's see how bad the 3-bar equation "under estimates fuel".
Let's use a 2-bar GM linear MAP KPA of 141KPA (MAP A/D count of 170d or 0xAA). So, MAP_FOR_BPW = (170d * 200d) + 8 = 0x84D8. The 0x84 is sent to the BPW fuel calculation for turning on the injector.
Let's now use a 3-bar GM linear MAP of 141KPA (MAP A/D count of 115d or 0x73). MAP_FOR_BPW = 0x73. The 0x73 is sent to the BPW fuel calculation for turning on the injector.
Ok, so what went wrong? The 2-bar MAP at 141KPA sent a value of 0x84 to the BPW calc. and the 3-bar MAP at 141KPA sent a value of 0x73 to the BPW calc..........the 3-bar is falsely telling the fuel injector to be leaner than it theoritically should be by a value of 0x84 - 0x73 = 0x11 (17d). Therefore, the VE tables need to be increased to over come the MAP making it too lean. It gets worse as the boost increases (errors up to 42d).
What needs to be done. Leave the equation and do not comment out the code. Increase the value of the 200d constant to 200d *1.5 = 300d. This will cause an overflow in the MAP_FOR_BPW value when the 3-bar MAP sensor exceeds approx. 271KPA (MAP A/D of 219d or 0xDB). Another MAP_FOR_BPW (call it MAP_FOR_BPW_3BAR) needs to be created for the fueling equation. It is used when the MAP exceeds 267KPA to keep the BPW calc. theoretically correct.
All of the values used here are rounded/approximated using course values from a spreadsheet. More accurate values should be used when the actual code it patched. This was presented to give you an idea of what the patch does.
Please post if you see something in error or something just doesn't make sense.
Last edited by junkcltr; 05-22-2006 at 11:48 PM.
#26
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,432
Likes: 0
Received 225 Likes
on
211 Posts
Car: check
Engine: check
Transmission: check
The PW is left alone for a 1 bar MAP sensor, it is doubled when a 2 bar MAP sensor is in place, it needs to be tripled with the 3 bar MAP sensor. Now the engine won't be going lean.
RBob.
RBob.
#27
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
That is correct. It needs to be tripled for the 3-bar. The 2-bar does not max. out the MAP_FOR_BPW value so there is room left for the 3-bar fueling up to a point. At 271KPA the MAP_FOR_BPW value overflows. This means an extra MAP term is needed for the fueling eqn for above 271 KPA.
The interesting thing is that it would have been better to not comment out the code and use it. Add two lines of code "bcc" and "ldaa #0xFF" to clamp the MAP_FOR_BPW (MEM[0x003A]) to 0xFF when it overflows. This would give the correct fuel up to 271KPA. Above that it would get increasing leaner by 1 bit up to 315KPA. This is gives a much better MAP fuel term than commenting out the code, but is not entirely the correct way to do it. At least with this change, only the Boost vs. RPM fuel multiplier could compensate for the leaning out at 271 KPA.
The interesting thing is that it would have been better to not comment out the code and use it. Add two lines of code "bcc" and "ldaa #0xFF" to clamp the MAP_FOR_BPW (MEM[0x003A]) to 0xFF when it overflows. This would give the correct fuel up to 271KPA. Above that it would get increasing leaner by 1 bit up to 315KPA. This is gives a much better MAP fuel term than commenting out the code, but is not entirely the correct way to do it. At least with this change, only the Boost vs. RPM fuel multiplier could compensate for the leaning out at 271 KPA.
#28
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,432
Likes: 0
Received 225 Likes
on
211 Posts
Car: check
Engine: check
Transmission: check
The 3 bar MAP_FOR _BPW value won't overflow if the code if left as Grumpy posted it:
Then triple the PW after the MAP_FOR_BPW has been factored in.
RBob.
Code:
LDAA L003F ; filtered map adc term load accum A ;LDAB #200 ; load accum B ;MUL ; Multiply 8 by 8 ;ADCA #8 ; Add with carry to A STAA L003A ; map term for BPW Store Accum A
RBob.
#29
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Originally Posted by RBob
The 3 bar MAP_FOR _BPW value won't overflow if the code if left as Grumpy posted it:
Then triple the PW after the MAP_FOR_BPW has been factored in.
RBob.
Code:
LDAA L003F ; filtered map adc term load accum A ;LDAB #200 ; load accum B ;MUL ; Multiply 8 by 8 ;ADCA #8 ; Add with carry to A STAA L003A ; map term for BPW Store Accum A
RBob.
No matter how it is done, the MAP_FOR_BPW overflows when correctly tripled. Therefore, another MAP_FOR_BPW is needed for the fueling equation. The MAP term will range from 0x00 to 0x2A when the 3-bar MAP goes from 271KPA to 3-Bar. The term isn't that big and could just be "fixed up" using the boost vs. RPM table (F77 table).
EDIT: another way to look at it: The Grumpy bin uses a multiplier of 256d, my patch uses a multiply of 300d. The Grumpy patch underestimates fuel by (256/300) = .85. Notice that the example I gave early on at a MAP of 141KPA showed that Grumpy's patch under estimated fuel by 0x84 - 0x73 = 0x11. That is, 0x73/0x84 = .87 (remember my example was rounded numbers) or approx. 85%.
Last edited by junkcltr; 05-23-2006 at 01:37 PM.
#31
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
Originally Posted by RBob
You are not understanding where the PW gets tripled. It isn't the MAP_FOR_BPW term.
RBob.
RBob.
I am going to compile the patch I did and try it on the bench this evening. Maybe my thoughts are totally messed up. The spreadsheet seems correct though.
#32
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: In reality
Posts: 7,554
Likes: 0
Received 1 Like
on
1 Post
Car: An Ol Buick
Engine: Vsick
Transmission: Janis Tranny Yank Converter
Originally Posted by junkcltr
I am going to compile the patch I did and try it on the bench this evening. Maybe my thoughts are totally messed up.
Oh, and then you can start looking for the other problems.
Then once you find, and cure those, you'll have something to begin working with.
#33
Supreme Member
iTrader: (1)
Join Date: Jan 2002
Location: garage
Posts: 4,432
Likes: 0
Received 1 Like
on
1 Post
Engine: 3xx ci tubo
Transmission: 4L60E & 4L80E
I try to get things theoretically correct. Then I move on to the bench and then on to the car. There is 16K of available space with another 4K of SRAM available. That should be enough space to do pretty much anything.
Thread
Thread Starter
Forum
Replies
Last Post
IROCZDAVE (88-L98)
Exterior Parts for Sale
1
09-22-2015 08:28 PM
IROCZDAVE (88-L98)
Exterior Parts for Sale
0
09-06-2015 06:23 AM
