Custom parking break cable help needed
#1
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
Custom parking break cable help needed
I did the J65/PBR rear brake conversion a while ago but never replaced the old cables with newer ones. I recently bought new cables (the rear two, not the front one) but it looks like they're about an inch too long. I installed them today and tightened the cable adjuster all the way. I only start to feel some tension when I have the parking break lever pulled up about 4/5 of the way up and it does nothing to stop the car from rolling. Is there any place that sells the crimp on ends to parking break cables? I could easily just crimp new ends onto the cable adjuster side about an inch down and cut off the excess to fix the problem.
Thanks in advance for any thoughts/ideas.
Thanks in advance for any thoughts/ideas.
#2
Moderator
iTrader: (5)
The e-brake cables are from CarQuest (P/N BRK 8788, 1st design, 1434 mm). The original GM cable is discontinued (GM P/N 10164125). I had to use a Dremel to slightly enlarge the retangular slot on the caliper end of the cable to make it fit the parking brake lever. Two minutes work.
JamesC
JamesC
#3
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
The e-brake cables are from CarQuest (P/N BRK 8788, 1st design, 1434 mm). The original GM cable is discontinued (GM P/N 10164125). I had to use a Dremel to slightly enlarge the retangular slot on the caliper end of the cable to make it fit the parking brake lever. Two minutes work.
JamesC
JamesC
I’m well aware of the CarQuest cables but I assumed that the NAPA ones would be the same thing. The damage is done and I would like to try to salvage what I have.
#4
Supreme Member
iTrader: (7)
Join Date: Mar 2001
Location: Fort Mill, SC, USA
Posts: 6,420
Likes: 0
Received 4 Likes
on
4 Posts
Car: '88 Iroc, '91 RS, and a '70 RS
Engine: 5.7 TPI; 5.0 TBI; ZZ4/T56 on the ag
Transmission: A4, A4, slated to be a T56
Have you tried adjusting the cable tension adjustment under the car in the trans tunnel? Your '88 will have this, '91 and newer will not. Piece of cake, read how to do it in this link, pics and all. I had to do it to my '88 when I did my swap, odds are you need to do the same thing:
Yahoo! Photos - taramiller72's Photos - Camaro Rearend Install
Don't hack up your new parts just yet.
Ed
Yahoo! Photos - taramiller72's Photos - Camaro Rearend Install
Don't hack up your new parts just yet.
Ed
#6
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
Have you tried adjusting the cable tension adjustment under the car in the trans tunnel? Your '88 will have this, '91 and newer will not. Piece of cake, read how to do it in this link, pics and all. I had to do it to my '88 when I did my swap, odds are you need to do the same thing:
Yahoo! Photos - taramiller72's Photos - Camaro Rearend Install
Don't hack up your new parts just yet.
Ed
Yahoo! Photos - taramiller72's Photos - Camaro Rearend Install
Don't hack up your new parts just yet.
Ed
I found two solutions to the problem. The first comes from sail boating. Since they have to make a lot of custom cables, they have a tool that can do what I want. I forgot the name but it starts with an s. The downside is that the tool alone is about $140 so that's out. Seeking to save myself some money I went to the local custom shop and asked if they had any ideas. I found out that there’s a company out there selling parking break cables that you cut to the length you need, both sleeve and actual cable, for hotrodding purposes. They have some sort of fastening system that works well and requires no special tools. I had them order me a set and as soon as I have them in my hands (wednesday) I will be sure to post more info (brand name, pictures, etc). They’re 50 state legal, which has to mean something. Hopefully they will work. If not I will just return them and make the drive over to CarQuest.
My problem still bothers me some. There are only so many companies out there that make parking break cables - I’m surprised that the NAPA cables are different than the CarQuest cables.
#7
Supreme Member
iTrader: (7)
Join Date: Mar 2001
Location: Fort Mill, SC, USA
Posts: 6,420
Likes: 0
Received 4 Likes
on
4 Posts
Car: '88 Iroc, '91 RS, and a '70 RS
Engine: 5.7 TPI; 5.0 TBI; ZZ4/T56 on the ag
Transmission: A4, A4, slated to be a T56
So you need to be able to move the adjuster lever up even further? Try this: Go to Lowe's and in the big drawers of their fastener department, they will have some steel sleeves of various lengths and diameters. Slip one of those over the bolt between your nut and lever and that should work unless you see something I don't. Good luck!
Which cable company is that? Lokar? Just curious.
Ed
Which cable company is that? Lokar? Just curious.
Ed
Trending Topics
#8
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
So you need to be able to move the adjuster lever up even further? Try this: Go to Lowe's and in the big drawers of their fastener department, they will have some steel sleeves of various lengths and diameters. Slip one of those over the bolt between your nut and lever and that should work unless you see something I don't. Good luck!
Which cable company is that? Lokar? Just curious.
Ed
Which cable company is that? Lokar? Just curious.
Ed
I have about an inch worth of thread left on the adjuster bolt. The bracket that the two cables attach to is hitting the spot where the thread comes to an end and the cable begins. This isn't letting me tighten the bolt any further. I could always drill the bracket out but I don’t want one of the ends to rest on the cable that goes to the parking brake handle because I’m afraid it would eventually wear through.
To steal your picture:
As for the company, I’m not 100% sure and the invoice is less than helpful. I will find out on Wednesday when the parts arrive and will post more info. If you can think of more possible fixes in the mean time be sure to post them
#9
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
Bump with more info.
link: http://www.lokar.com/interior_pages/..._concables.htm
No need for me to take pictures if they're already online. I purchased the universal with the black sleeve. This looks like the ideal solution because I can route the cables however I want. Whoever installed the exhaust for the PO did a horrible job running the pipe and the cable constantly comes into contact with it. The only problem is that the ends terminate with beads, not the loops I need for the PBR cables. I think that I can make it work by making my own clevis or by buying theirs and making the hole bigger.
link: http://www.lokar.com/interior_pages/..._concables.htm
No need for me to take pictures if they're already online. I purchased the universal with the black sleeve. This looks like the ideal solution because I can route the cables however I want. Whoever installed the exhaust for the PO did a horrible job running the pipe and the cable constantly comes into contact with it. The only problem is that the ends terminate with beads, not the loops I need for the PBR cables. I think that I can make it work by making my own clevis or by buying theirs and making the hole bigger.
#11
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
Excellent post
I've got a few questions for you though. How did you secure the two cables to the car? Just drill through the tunnel and install bolts? Also, does this mean that the fitting box has the same thread as the current adjuster bolt? Looks like a nice install but a bit of a PITA to get set up right.
I've got a few questions for you though. How did you secure the two cables to the car? Just drill through the tunnel and install bolts? Also, does this mean that the fitting box has the same thread as the current adjuster bolt? Looks like a nice install but a bit of a PITA to get set up right.
#12
The cables are secured to the undercarraige at various increments using Earls cushioned tubing clamps and short self taping sheet metal screws.
I drilled out the center thread of the adapter blockso the factory cable slip-fits into it and the adjuster nut went on behind it holding just as it did on the factory cable wing.
I drilled out the center thread of the adapter blockso the factory cable slip-fits into it and the adjuster nut went on behind it holding just as it did on the factory cable wing.
#13
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
The cables are secured to the undercarraige at various increments using Earls cushioned tubing clamps and short self taping sheet metal screws.
I drilled out the center thread of the adapter blockso the factory cable slip-fits into it and the adjuster nut went on behind it holding just as it did on the factory cable wing.
I drilled out the center thread of the adapter blockso the factory cable slip-fits into it and the adjuster nut went on behind it holding just as it did on the factory cable wing.
Last edited by Gummie; 08-21-2006 at 12:30 PM.
#14
Not stock.
Rears are Wilwood 4piston 12.19x.81 2pc rotors with internal LS1 style drum parking brake.
I use Wilwood Clevis adapters from Lokar.
Fronts are Wilwood 6piston 12.90"x1.25" 2pc rotors with aluminum hubs,alum brackets and alum hubcenttric pressfit wheel spacers. Hubs also fitted with 1.2" x 2.970" ARP racing studs
PS; Hi Ed, Its Dean (obviously now- playing the ol' name change game again and again)
Rears are Wilwood 4piston 12.19x.81 2pc rotors with internal LS1 style drum parking brake.
I use Wilwood Clevis adapters from Lokar.
Fronts are Wilwood 6piston 12.90"x1.25" 2pc rotors with aluminum hubs,alum brackets and alum hubcenttric pressfit wheel spacers. Hubs also fitted with 1.2" x 2.970" ARP racing studs
PS; Hi Ed, Its Dean (obviously now- playing the ol' name change game again and again)
#15
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
Haha, hi Dean. I've read a quite a few posts of yours in my searching of the forum and you generally post awesome info.
Do you know anything about their clevises for other vehicles? I'm thinking about buying a pair of the explorer/corvette style and drilling them out (if necessary) to try to make them work with my PBR calipers. Just trying to figure out if there's enough material there to work with or if I should just start off by trying to make my own out of some sheet metal.
Do you know anything about their clevises for other vehicles? I'm thinking about buying a pair of the explorer/corvette style and drilling them out (if necessary) to try to make them work with my PBR calipers. Just trying to figure out if there's enough material there to work with or if I should just start off by trying to make my own out of some sheet metal.
Last edited by Gummie; 08-22-2006 at 12:17 AM.
#16

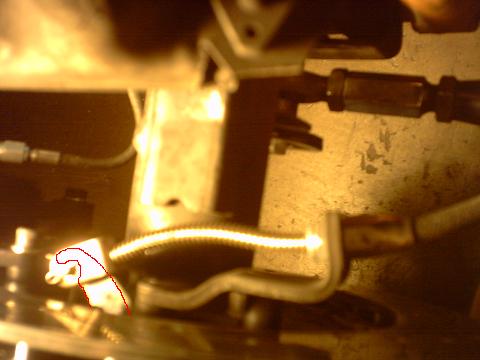

Here is a top view of my clevis. Mine is a hook style with a cotterpin going through the clevis. The actuator lever is a hook that the pinned clevis is slipped onto then pinned. It looks kind of like it could slip off, but it can't.
I am not familiar with any of the other style E-brake clevis'. I have Ford 84-86 SVO (Mustang) rear calipers on my Chev truck with a Currie 9" also with Lokar cables and Clevis' and that are identical to this other than the SVO caliper has a hole that the cotter pin inserts into on the actuator lever rather than a hook style pictures in red markings.
I am not familiar with any of the other style E-brake clevis'. I have Ford 84-86 SVO (Mustang) rear calipers on my Chev truck with a Currie 9" also with Lokar cables and Clevis' and that are identical to this other than the SVO caliper has a hole that the cotter pin inserts into on the actuator lever rather than a hook style pictures in red markings.
#18
Supreme Member
Thread Starter
Join Date: Sep 2003
Location: Readington, NJ
Posts: 1,232
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 GTA
Engine: 350 TPI
Transmission: T-56
Axle/Gears: 9 bolt w/ 3.73
The PBR style look exactly like your red outline. I guess I will give that style a shot before I try to hack the vette version. Thanks for being willing to go and take pictures of the SVO calipers for me.
#19
Supreme Member
iTrader: (7)
Join Date: Mar 2001
Location: Fort Mill, SC, USA
Posts: 6,420
Likes: 0
Received 4 Likes
on
4 Posts
Car: '88 Iroc, '91 RS, and a '70 RS
Engine: 5.7 TPI; 5.0 TBI; ZZ4/T56 on the ag
Transmission: A4, A4, slated to be a T56
There he is..hello Dean.. thanks for the help there Boogie man.
Ed
Ed
#21
Supreme Member
iTrader: (7)
Join Date: Mar 2001
Location: Fort Mill, SC, USA
Posts: 6,420
Likes: 0
Received 4 Likes
on
4 Posts
Car: '88 Iroc, '91 RS, and a '70 RS
Engine: 5.7 TPI; 5.0 TBI; ZZ4/T56 on the ag
Transmission: A4, A4, slated to be a T56
OK, someone clear this up for me...how the heck does the cable end fit in to the clevis? I've been looking into them for the LS1 cables and I don't see how the cable end can fit through the hole in the clevis and still be retained. Is there a slot for the cable or something?
I'm missing something here but I don't know what yet..help.
Ed
I'm missing something here but I don't know what yet..help.
Ed
