Front end jacking and Jack stand points?
#1
Member
Thread Starter
Join Date: Nov 2015
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Camaro RS
Engine: 305 TBI
Transmission: 4 Speed Automatic
Front end jacking and Jack stand points?
So I've never jacked the front end of a car before. I made the mistake of looking in the owners manual of where to put the jack. It said and SHOWED to put the Jack on the side within 14 inches of the wheel below the door. The damn thing started bending everything,so I put it down IMMEDIATELY. All I can say now is my driver side door makes an excruciating sound when I open it. I still need to get under it,but I wanna know how to do it PROPERLY. If you're able try to post pics of you showing exactly what points I can use to Jack it up and then also support it. Thanks in advance!
#3
Supreme Member
Join Date: May 2015
Location: Florida
Posts: 1,723
Received 247 Likes
on
190 Posts
Car: 1991 Z28
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: 3:42 Auburn
Re: Front end jacking and Jack stand points?
That link just mainly shows the lift points for a arm lift and you can use those for your jack also but that doesn't show jack stand points. I have been paranoid about jacking the car on on side at a time as I have heard you could twist the frame. Here is what I have been doing and maybe someone with more knowledge on this can say if this is the right way. I use a low profile floor jack. I slide it under from the front, angle it so the handle clears the air dam, and lift it from the center of the cross member under the engine. The stands can be placed where shown in the link or under the control arms if you need the suspension loaded. For the rear I use the rear end diff and place the stands either where shown in the pick or under the sway arm brackets on the rear end if I want the suspension loaded. Not sure if this is proper for floor jack and stands but it seems to work.
#4
Supreme Member
Re: Front end jacking and Jack stand points?
I always lift at the center of the front cross member and on the rear diff where the bolts are for the torque arm. I don't lift off of the rear of the diff where the pan is, because I bent my pan one time and caused a leak.
As for jack stands it depends on what I'm trying to accomplish, but for the front I usually go under the a arms or where the sub-frame bolts to the body behind the wheels. As for the rear it's either under the rear axle or in front of where the control arms bolt to the body.
My IROC has been held two feet off of the ground by jack stands son top of blocks for four months straight and I never had any issues. I would like to mention that my car also has sub-frame connectors and is a hard top. I highly recommend putting sub-frame connectors in any third gen especially if you have t-tops.
As for jack stands it depends on what I'm trying to accomplish, but for the front I usually go under the a arms or where the sub-frame bolts to the body behind the wheels. As for the rear it's either under the rear axle or in front of where the control arms bolt to the body.
My IROC has been held two feet off of the ground by jack stands son top of blocks for four months straight and I never had any issues. I would like to mention that my car also has sub-frame connectors and is a hard top. I highly recommend putting sub-frame connectors in any third gen especially if you have t-tops.
#7
Member
Thread Starter
Join Date: Nov 2015
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Camaro RS
Engine: 305 TBI
Transmission: 4 Speed Automatic
Re: Front end jacking and Jack stand points?
That link just mainly shows the lift points for a arm lift and you can use those for your jack also but that doesn't show jack stand points. I have been paranoid about jacking the car on on side at a time as I have heard you could twist the frame. Here is what I have been doing and maybe someone with more knowledge on this can say if this is the right way. I use a low profile floor jack. I slide it under from the front, angle it so the handle clears the air dam, and lift it from the center of the cross member under the engine. The stands can be placed where shown in the link or under the control arms if you need the suspension loaded. For the rear I use the rear end diff and place the stands either where shown in the pick or under the sway arm brackets on the rear end if I want the suspension loaded. Not sure if this is proper for floor jack and stands but it seems to work.
Trending Topics
#8
Supreme Member
Re: Front end jacking and Jack stand points?
Put the floor jack pad here, under the middle of the cross member and lift:
Once lifted, put the stands under the A-arm spring pockets towards the outside circumference. You can kind of see it here (not an F-Body but an M-Body van):
Ignore the small bottle jack in the photo. It's there to support the engine because the transmission is removed from the chassis. I'm flushing the cooler lines prior to installing the rebuilt unit.
Once lifted, put the stands under the A-arm spring pockets towards the outside circumference. You can kind of see it here (not an F-Body but an M-Body van):
Ignore the small bottle jack in the photo. It's there to support the engine because the transmission is removed from the chassis. I'm flushing the cooler lines prior to installing the rebuilt unit.
#9
Supreme Member
iTrader: (13)
Join Date: Dec 2002
Location: Bowdon, GA.
Posts: 2,535
Likes: 0
Received 16 Likes
on
14 Posts
Car: 1988 Camaro
Engine: 355, 10.34:1, 249/252 @.050", IK200
Transmission: TH-400, 3500 stall 9.5" converter
Axle/Gears: Ford 9", detroit locker, 3.89 gears
Re: Front end jacking and Jack stand points?
Yep jack under the center of the K member (engine crossmember) and it will lift both front sides up (whole front end)
Then put jackstands under the A arms.
If your jack is too tall or not long enough, you can jack one side of the front up at a time. Do this by jacking under the front "sub frame" rail.
If you look at this link https://www.thirdgen.org/forums/tech...-car-lift.html Post # 11, you will see the 4 green spots added to picture. Look at the green spots on the right side of pic. I know car is on it's side, but you will still know those spots when you see it from under the side of car.
Jack from those green spots in pic, put jackstands under A arms or under the same rail you are jacking on (place with those green spots)
Then put jackstands under the A arms.
If your jack is too tall or not long enough, you can jack one side of the front up at a time. Do this by jacking under the front "sub frame" rail.
If you look at this link https://www.thirdgen.org/forums/tech...-car-lift.html Post # 11, you will see the 4 green spots added to picture. Look at the green spots on the right side of pic. I know car is on it's side, but you will still know those spots when you see it from under the side of car.
Jack from those green spots in pic, put jackstands under A arms or under the same rail you are jacking on (place with those green spots)
#10
Member
Thread Starter
Join Date: Nov 2015
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Camaro RS
Engine: 305 TBI
Transmission: 4 Speed Automatic
Re: Front end jacking and Jack stand points?
Awesome! Thank you guys for helping me out. I've been struggling with this for a couple weeks cause I was a little afraid I'd screw something up.
#14
Junior Member
Join Date: May 2020
Location: Holiday Florida
Posts: 35
Likes: 0
Received 1 Like
on
1 Post
Car: 89' Pontiac Trans Am GTA
Engine: 5.7 liter
Transmission: 700R4
Axle/Gears: 3.23
Re: Front end jacking and Jack stand points?
The problem is that my car has been lowered in the front, not allowing the jack to fit under the air dam, plus no clearance to pump the jack handle. Can I just go in from the side?
#15
COTM Editor
iTrader: (22)
Join Date: Mar 2001
Posts: 9,975
Likes: 0
Received 1,894 Likes
on
1,294 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: Front end jacking and Jack stand points?
Car can slide off the jack if lifting by the k-member, especially the higher you go.
You can lift from the side but cars without a lot of extra bracing will twist and make creaking noises that will make you cringe.
Ramps are your friend.
You can lift from the side but cars without a lot of extra bracing will twist and make creaking noises that will make you cringe.
Ramps are your friend.
#16
Junior Member
Join Date: May 2020
Location: Holiday Florida
Posts: 35
Likes: 0
Received 1 Like
on
1 Post
Car: 89' Pontiac Trans Am GTA
Engine: 5.7 liter
Transmission: 700R4
Axle/Gears: 3.23
Re: Front end jacking and Jack stand points?
The problem is I have to work on the starter, so cannot drive up on ramps. can I use 2 floor jacks one under each side A-frame and jack each a little at a time?
#18
Supreme Member
Re: Front end jacking and Jack stand points?

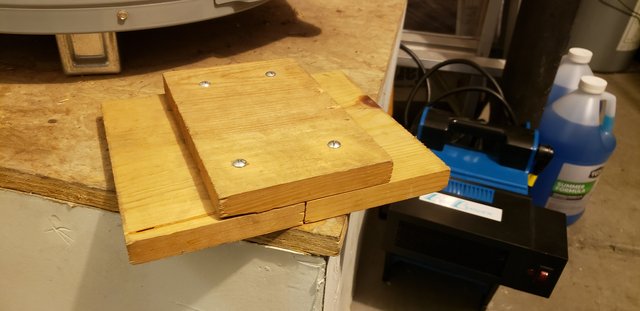

1) I have a short stack of 1x12 pine boards screwed together like a pyramid, 1.5" works form me at stock ride height.
2) I lift one side of the car with the floor jack under the A-arm at the spring pocket and lower it down onto the boards. There's just enough room between the tire and air deflector and clearance for the jack handle to pump the cylinder.
3) Once that side is on the boards, I move the jack to the center of the K-member, approaching from the front corner of the air dam.
4) Position jack stands under the A-arm spring pockets.
#19
Supreme Member
iTrader: (5)
Join Date: Oct 2002
Location: In the paint booth!
Posts: 2,659
Received 1,167 Likes
on
657 Posts
Car: 1986 Camaro Drag Car
Engine: 383 on Ethanol
Transmission: Automatic
Axle/Gears: 3.90 Currie 9 inch
Re: Front end jacking and Jack stand points?
I jacked my 86 IROC on the k member when I was a junior in high school (1992) and the car slipped off the jack and dented my oil pan. Enough that the crank hit it when I started it, and the car was then towed to a GM dealership to have a new oil pan installed.
