need pic of ac delete?
#1
Junior Member
Thread Starter
Join Date: Dec 2002
Location: Deer Park, New York
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts
need pic of ac delete?

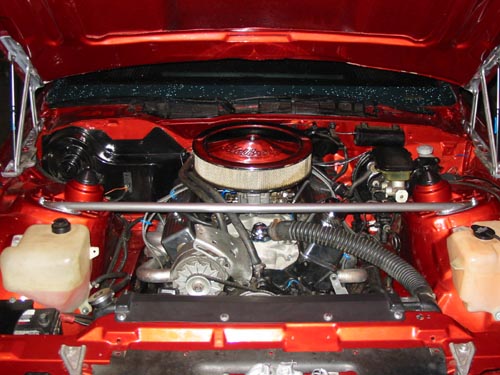

i was wondering if someone could take a pic of there ac delete on a carbureted engine with a v-belt and maybe some instructions of how to install it thanx for any help.
Last edited by pont82fbird; 11-16-2003 at 08:02 PM.
#2
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Join Date: Jul 1999
Location: out of my mind; be back in 5 minutes....
Posts: 1,593
Likes: 0
Received 3 Likes
on
2 Posts
Car: 1989 Firebird Formula
Engine: Internal Combustion
Transmission: Completed
Axle/Gears: ones that turn.
![](http://www.hioutput.com/pete/Formula/engine1.jpg)
No real instructions because my 89 Formula came equipped this way...except for the engine
![Smilie](https://www.thirdgen.org/forums/images/smilies/smile.gif)
Pete
#3
Senior Member
Join Date: Jul 1999
Location: Long Island NY
Posts: 917
Likes: 0
Received 1 Like
on
1 Post
Car: Z28
Engine: 350 TPI
Transmission: 700R4
Removing the AC compressor from a V-belt car is fairly easy compared to serpentine cars. First the freon has to be evacuated. Then just disconnect the lines at the ac condensor (i think that's what it's called, thing infront of the radiator), remove the belt for the compressor, disconnect electrical connections, unbolt the compressor, and remove the brackets for the compressor, and set the wires aside. I can't see the Carb setup being much different then the TPI. Here's a picture of mine.
![](http://www.3gc.net/camaro/images/87Z28/engine-10-29-03R.jpg)
#4
Member
Join Date: Jan 2003
Location: Ringwood, NJ
Posts: 266
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 trans am
Engine: 5.7 gm H.O. crate engine
Transmission: 700r4
for some reason i couldnt figure out how to take that box out. so when i took the a/c/ apart i just cracked the box and took it out in pieces. i made an a/c/ delete bok for my catr and used sheet metal screws to attach it.
#5
Junior Member
Join Date: Feb 2003
Location: E-ville, IN
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
Car: '86 Trans Am
Engine: 305 TPI
Transmission: 700R4
Yeah, I personally think they put the ac/heater box on before they did anything else to the car. There is no way for me to get to the remaining bolts. I would have had to take the fender off, pulled the engine, and removed the whole strut tower area to get to the darn things. I am in the process of braking mine apart so I can get to the bolts. I don't know what I will do if I need to take off the non-a/c box since I have a metal one. Hopefully though it will be easier to get to the bolts seeing as how the box is smaller all the way around.
#6
Supreme Member
Join Date: Aug 2002
Location: SW Michigan
Posts: 1,498
Likes: 0
Received 0 Likes
on
0 Posts
the ac/heater box isnt that hard to remove, you just have to get to a few bolts inside, just take off the panel underneath the dash and the bolts will be easy to get too. then v-belt setups are easier with no AC.
#7
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
For what it's worth, the S-10 heater box is more common (look for 4 cylinder s-10's, lots of companies used them as fleet vehicles). It looks identical to the camaro unit. Mine required different bolt locations, cutting a larger hole for the resistor (or whatever the hell the thing with the coiled wires is) and bending of the flange in one location.
It may also interest you to know that there are lots of other S-10 parts that are direct bolt ins...
It may also interest you to know that there are lots of other S-10 parts that are direct bolt ins...
Trending Topics
#9
Supreme Member
Join Date: May 2002
Location: Tucson
Posts: 1,512
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC-Z
Engine: 305 TPI
Transmission: T5
Here is a before pic when I had my A/C installed, your carb setup should look similar "hose wise at least LOL".
Last edited by 5SIZ; 11-18-2003 at 11:10 PM.
#10
Supreme Member
Join Date: May 2002
Location: Tucson
Posts: 1,512
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC-Z
Engine: 305 TPI
Transmission: T5
Here is the after pic, very big difference in space as you can see, it is definatly easier in a V-belt setup, seeing as how you don't have to spend X amount of dollars for a delete pulley, man do I love my 87 V-belt setup.
![Wink](https://www.thirdgen.org/forums/images/smilies/wink.gif)
Last edited by 5SIZ; 11-18-2003 at 11:07 PM.
#11
Supreme Member
Join Date: May 2002
Location: Tucson
Posts: 1,512
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC-Z
Engine: 305 TPI
Transmission: T5
Originally posted by Petes 84Z28
No real instructions because my 89 Formula came equipped this way...except for the engine![Smilie](https://www.thirdgen.org/forums/images/smilies/smile.gif)
Pete
No real instructions because my 89 Formula came equipped this way...except for the engine
![Smilie](https://www.thirdgen.org/forums/images/smilies/smile.gif)
Pete
![Stick Out Tongue](https://www.thirdgen.org/forums/images/smilies/tongue.gif)
#12
Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Join Date: Dec 2001
Location: Winnipeg, Canada
Posts: 289
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1982 Trans Am
Engine: 350 Crate
Transmission: TH350
Axle/Gears: 3.23
My car came without A/C. I put it in (and sold the a/c delete box)
THERE ARE BOLTS ON THE INSIDE that you must remove, that's why it's a pain to take off. As mentioned, you have to remove the bottom of your dash, and probably pull back the carpet and firewall insulation to see them.
It's not easy. They are a pain to reach, but it's totally doable. I didn't break anything, but I had my interior stripped to the firewall at the time.
Picture is how the original non A/C box looked.
THERE ARE BOLTS ON THE INSIDE that you must remove, that's why it's a pain to take off. As mentioned, you have to remove the bottom of your dash, and probably pull back the carpet and firewall insulation to see them.
It's not easy. They are a pain to reach, but it's totally doable. I didn't break anything, but I had my interior stripped to the firewall at the time.
Picture is how the original non A/C box looked.
#13
Senior Member
Join Date: Apr 2003
Location: Mill Creek, Washington
Posts: 541
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1983 Trans Am
Engine: N/A
Transmission: N/A
Well what exactly gets removed.
I got the condesner out (the silver canister) and a lot of the tubing.
But which of these (see picture) gets removed; L or R?.
And by taking all of this out, am I gonna lose my heater and defroster?
I got the condesner out (the silver canister) and a lot of the tubing.
But which of these (see picture) gets removed; L or R?.
![](http://www.angelfire.com/mech/transamwa/ACComponentsIdiotproof.jpg)
And by taking all of this out, am I gonna lose my heater and defroster?
#16
Member
Join Date: Oct 2003
Location: ME.
Posts: 352
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Z-28
Engine: TPI
Transmission: 5-speed Rear:3.73
Ive been looking also....ebay has some but they want way too much for them and if you find one on there cheap watch out....
it may be a bidding war...and I'll be in that war too lol
it may be a bidding war...and I'll be in that war too lol
![Big Grin](https://www.thirdgen.org/forums/images/smilies/biggrin.gif)
#18
Junior Member
Join Date: Jun 2003
Location: Fort Sill, ok.
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
this guy is selling the boxes for 80 bucks i dont know if thats good or not.
http://members.***.net/iroczdave1/IR...rts%20Page.htm
http://members.***.net/iroczdave1/IR...rts%20Page.htm
#19
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
iTrader: (1)
Join Date: Apr 2001
Location: Southwest Chicago 'burbs
Posts: 2,031
Likes: 0
Received 0 Likes
on
0 Posts
Modify your box to work. Works great, and best of all, it's free
I used a hacksaw to remove the whole section that had the evaporator in it, and then trimmed up a piece of 20 gauge sheetmetal to fit over the opening. Then all I did was fiberglass it into place and then spray the whole thing with undercoat so I wouldn't have to finish sand or anything. Because of that, it doesn't look quite perfect, but it serves its purpose well, and within the next couple years I won't have any heating system at all
If you want it nice and pretty, use filler on any low or rough areas, sand it smooth, and then paint it with a high gloss paint.
![](http://www2.freepichosting.com/Images/96498/3.jpg)
![Big Grin](https://www.thirdgen.org/forums/images/smilies/biggrin.gif)
I used a hacksaw to remove the whole section that had the evaporator in it, and then trimmed up a piece of 20 gauge sheetmetal to fit over the opening. Then all I did was fiberglass it into place and then spray the whole thing with undercoat so I wouldn't have to finish sand or anything. Because of that, it doesn't look quite perfect, but it serves its purpose well, and within the next couple years I won't have any heating system at all
![Wink](https://www.thirdgen.org/forums/images/smilies/wink.gif)
![](http://www2.freepichosting.com/Images/96498/3.jpg)
![](http://www2.freepichosting.com/Images/96498/5.jpg)
#21
Former Sponsor
iTrader: (1)
Join Date: Feb 2002
Location: Florida
Posts: 1,081
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1992 Camaro RS
Engine: Yet another 350 TPI
Transmission: Borg Warner 6 spd
Axle/Gears: 3.73
They aren't difficult to install at all. There are two bolts (I think they are 10 mm) that you need to put in from the inside. You don't have to take apart your interior. One of them you can see if you look underneath the dash, the other you need to find a cut in insulation right above the end of the carpet. You peel it back a little, and you'll see the other bolt. All the other bolts you can get at from the engine bay. It is probably easier to put in the box without the blower motor bolted onto it. That way, you can see a little better how to line up the box with the holes in the firewall. After that, you just need to bolt up the blower motor. Takes me about 20 minutes taking my time.
I circled the bolt holes in the picture where the bolts go from the inside.
If you guys have any questions, just post them. I'll try to answer them if I can.
By the way, I have a heater box (the one in the pic) in mint condition for sale right now. If you guys are interested email me and we can work something out.
I circled the bolt holes in the picture where the bolts go from the inside.
If you guys have any questions, just post them. I'll try to answer them if I can.
By the way, I have a heater box (the one in the pic) in mint condition for sale right now. If you guys are interested email me and we can work something out.
