TECH ARTICLE: How to use A/C blower motor with A/C delete box
When removing the A/C and installing the delete heater box, the A/C style blower motor and fan will rub against the firewall since the delete box is about an 1/8" shallower. Instead of splicing into the wiring and installing the connector for the non-AC post connector I came up with this install idea. (fig. #1)
Here is how I did it:
1) Find NON-AC blower motor plastic fan
2) Go to WALMART or Home Depot and buy self adhesive foam rubber weather stripping that is can handle high heat. The size you need is 3/4" wide and 1/2" thick.
3) Install non-AC blower fan on the A/C motor.
4) Cut proper length of the weather stripping to make a circle around the opening. Stick onto the the heater box. BE CAREFUL! This stuff is really sticky.
5) Take the screws and find the screw holes and push them through the weather strip.
6) Push down on the motor to compress the stripping and get the screws tight for a leak free seal. (fig. #2)
7) Test the system.
Here is how I did it:
1) Find NON-AC blower motor plastic fan
2) Go to WALMART or Home Depot and buy self adhesive foam rubber weather stripping that is can handle high heat. The size you need is 3/4" wide and 1/2" thick.
3) Install non-AC blower fan on the A/C motor.
4) Cut proper length of the weather stripping to make a circle around the opening. Stick onto the the heater box. BE CAREFUL! This stuff is really sticky.
5) Take the screws and find the screw holes and push them through the weather strip.
6) Push down on the motor to compress the stripping and get the screws tight for a leak free seal. (fig. #2)
7) Test the system.
#3
Supreme Member
Thread Starter
Join Date: Jan 2001
Location: www.thirdgentech.com
Posts: 1,609
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2004 GTO
Engine: LS1
Transmission: T-56
You only need the plastic fan part. I'm not sure if Auto Zone sells them separately.
Basically, if you pull an A/C delete box- MAKE SURE you get the plastic fan piece too. You can toss the actual non-ac motor.
Basically, if you pull an A/C delete box- MAKE SURE you get the plastic fan piece too. You can toss the actual non-ac motor.
#5
Supreme Member
Thread Starter
Join Date: Jan 2001
Location: www.thirdgentech.com
Posts: 1,609
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2004 GTO
Engine: LS1
Transmission: T-56
I had the foam on all summer and no problems. The reason for this is to keep from having to change the weather pack connector of the A/C style motor to the post style connector that the non-a/c motor has.
The weatherstripping in really soft and meant to last a long time. Sunlight is what rots weatherstripping.
The weatherstripping in really soft and meant to last a long time. Sunlight is what rots weatherstripping.
#6
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Join Date: Aug 1999
Location: San Diego, CA
Posts: 1,053
Likes: 0
Received 2 Likes
on
2 Posts
Car: 87 Buick GN
Engine: 3.8L (231 cid) V6
Transmission: 200-4R
Axle/Gears: 10 bolt G80/ 3.42
Originally posted by formul8!!
The reason for this is to keep from having to change the weather pack connector of the A/C style motor to the post style connector that the non-a/c motor has.
The reason for this is to keep from having to change the weather pack connector of the A/C style motor to the post style connector that the non-a/c motor has.
Trending Topics
#8
TGO Supporter
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
good information formul8!!
i just bought this box
http://members.***.net/iroczdave1/IR...rts%20Page.htm
i just bought this box
http://members.***.net/iroczdave1/IR...rts%20Page.htm
![](http://members.***.net/iroczdave1/Images/Camaro%20Parts/standardheaterbox%202-3-2002.jpg)
#11
Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Join Date: Dec 2001
Location: Worcester, Mass
Posts: 171
Likes: 0
Received 0 Likes
on
0 Posts
WOW! I did the SAME EXACT THING as you earlier in 2002 on my 89 Formula 350. I wanted to ditch the A/C system because I have T-roofs for the summer. The system had no charge. I have headers. I wanted alot of access space to do maintenance work like plugs etc. and to make it alot neater in the engine bay.
I heard that the A/C style blower motor worked better than the non A/C style and I wanted to retain all the wiring, vents, controls etc...that were part of the A/C system. Nice job. I thought I was the only one who thought of this. Cool
STEVE Z
I heard that the A/C style blower motor worked better than the non A/C style and I wanted to retain all the wiring, vents, controls etc...that were part of the A/C system. Nice job. I thought I was the only one who thought of this. Cool
![Big Grin](https://www.thirdgen.org/forums/images/smilies/biggrin.gif)
#12
Supreme Member
Thread Starter
Join Date: Jan 2001
Location: www.thirdgentech.com
Posts: 1,609
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2004 GTO
Engine: LS1
Transmission: T-56
UPDATE: After a year and 7,000 summer miles, the weather seal I applied to the delete box and blower motor is still like new. The stripping has held up well to high under hood heat so far!
#13
ok i looked at the link MdFormula350 posted but they didnt have that ac delete box. where else can i get one? i would like a new one if possilbe. how much am i looking at spending?
#14
Supreme Member
iTrader: (1)
Join Date: Mar 2003
Location: north plainfield, nj
Posts: 2,177
Likes: 0
Received 0 Likes
on
0 Posts
Car: 05' GTO
Engine: 6.0L
Transmission: A4

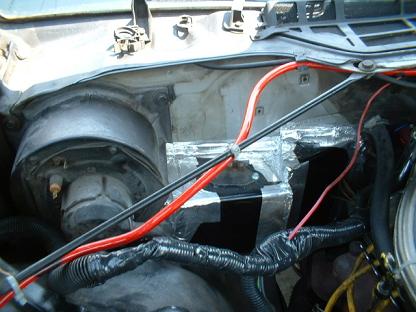

made my own box and used the stock A/C fan. all was needed was a dremal to cut off part of the old box, some sheet metal from home depot, tin snips, and foil tape.
#15
Supreme Member
iTrader: (1)
Join Date: Mar 2003
Location: north plainfield, nj
Posts: 2,177
Likes: 0
Received 0 Likes
on
0 Posts
Car: 05' GTO
Engine: 6.0L
Transmission: A4
works just as good as if i had the a/c box still in there and still got all my controls to everything
and looks good with some black gloss paint
![Big Grin](https://www.thirdgen.org/forums/images/smilies/biggrin.gif)
![Cool](https://www.thirdgen.org/forums/images/smilies/cool.gif)
#17
i tried to modify my A/C box but ended up just fuggin it up and gettin a non A/C box off ebay for about 45 bucks.
i did the same thing formul8 did but now whenever i turn the blower on, it hits something. probably part of the firewall. i put 2 strips, one on top of the other, but still hits.
i did the same thing formul8 did but now whenever i turn the blower on, it hits something. probably part of the firewall. i put 2 strips, one on top of the other, but still hits.
![doh](https://www.thirdgen.org/forums/images/smilies/doh.gif)
#18
Senior Member
Join Date: May 2003
Location: Windsor,Ontario, Canada
Posts: 616
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Camaro Z 28
Engine: 305 LG4
Transmission: 700R4
i went and got a non a/c heater box with the blower motor and put it on my car, only thing is it doesnt blow as much as the a/c blower did....so if i use the original blower motor but with the non a/c fan it will work better?
#21
Senior Member
Join Date: Feb 2003
Location: NJ fo0
Posts: 847
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1986/88 Frankenstein Trans Am
Engine: carbed L98
Transmission: T-5
Originally posted by BADBIRD009
dude jerrywho that is sweet! it looks very well done, nice job. since i cant weld, would you be interested in making another one if i paid you?
dude jerrywho that is sweet! it looks very well done, nice job. since i cant weld, would you be interested in making another one if i paid you?
![Big Grin](https://www.thirdgen.org/forums/images/smilies/biggrin.gif)
#22
Supreme Member
iTrader: (1)
Join Date: Mar 2003
Location: north plainfield, nj
Posts: 2,177
Likes: 0
Received 0 Likes
on
0 Posts
Car: 05' GTO
Engine: 6.0L
Transmission: A4
damn that looks good, i wish i had the chance to get to use or have a tig welder to make something like that or hell just anything. i need a welding job
![Big Grin](https://www.thirdgen.org/forums/images/smilies/biggrin.gif)
#23
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Originally posted by BADBIRD009
dude jerrywho that is sweet! it looks very well done, nice job. since i cant weld, would you be interested in making another one if i paid you?
dude jerrywho that is sweet! it looks very well done, nice job. since i cant weld, would you be interested in making another one if i paid you?
The other product I was thinking of was the "super ram runner" mod to SLP runners. You can see them in the picture of my car.
Jerry
#24
Senior Member
Join Date: May 2003
Location: Windsor,Ontario, Canada
Posts: 616
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Camaro Z 28
Engine: 305 LG4
Transmission: 700R4
Originally posted by JERRYWHO
I wanted to use the four speed motor and not rewire my car for the three speed motor so my cure to the problem was to make a new a/c delete housing.
Jerry
I wanted to use the four speed motor and not rewire my car for the three speed motor so my cure to the problem was to make a new a/c delete housing.
Jerry
#25
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Originally posted by 2 dope
wouldnt have been easier to just get the box from a non a/c car and put the motor from the a/c and the fan on from the non a/c?
wouldnt have been easier to just get the box from a non a/c car and put the motor from the a/c and the fan on from the non a/c?
For me its very easy to make stuff in my garage at home it has a power feed mill, lathe, mig, tig, plasma cutter. mandrel tube bender, 20" band saw and a 100 ton press.
Jerry
#26
Senior Member
Join Date: May 2003
Location: Windsor,Ontario, Canada
Posts: 616
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Camaro Z 28
Engine: 305 LG4
Transmission: 700R4
kool, it is a nice unit.....but formul8!! got it to work, i originally installed the a/c motor in the non a/c box and ya it fits differently and if i recall the fan was to big and touched the firewall, but im sure theres a way to get the non a/c fan on there. ...but ya i like what you made, i wish i had the stuff to make things like that good work
![Smilie](https://www.thirdgen.org/forums/images/smilies/smile.gif)
Last edited by 2 dope; 08-24-2003 at 10:12 PM.
